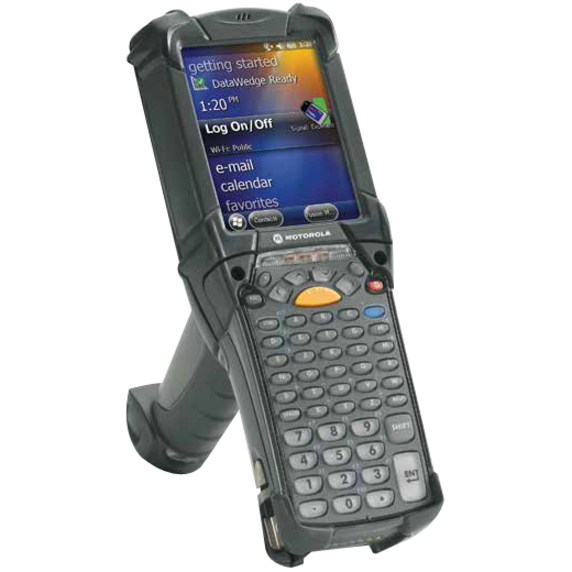

Motorola MC92N0-G90SXGYA5WR Mobile Computer

Name: Motorola MC92N0-G90SXGYA5WR Mobile Computer
Brand: Motorola
SKU: MC92N0-G90SXGYA5WR
Availability: OutOfStock
Rating: 5 (1 reviews)

Motorola MC9200 - Gun, Wi-Fi (802.11a/b/g/n), 2D Long Range Imager (SE4600), VGA Color Screen, 512MB RAM/2GB Flash, 53VT Key, Windows CE 7.0, Bluetooth. Interface cables and charging cradle sold separately. For Single Slot Charging Cradle Kit (Part# CRD9000-110SES). For 4 Slot Charging Cradle (Part# CRD9101-4001CR), Power supply (Part# PWRS-14000-241R), DC cord (Part# 50-16002-029R) and AC line cord (Part# 23844-00-00R).

Discontinued
See Replacement

Industry Leading Gold Standard for Mobility in Demanding Environments

The MC9200 gun-style mobile computer is the next generation in the rugged MC9000 Series, the industry leading gold standard for mobility in demanding environments. You get the same signature features that make up the foundation of every MC9000 Series mobile computer "" rugged design, best-in-class barcode scanning and dependable operation "" now with the power to run today"s highly-intuitive applications to help increase productivity and task accuracy in your warehouse, manufacturing plant, airport or military bases. Added support for 802.11n, the fastest Wi-Fi connection available today, allows you to give your workers the best possible wireless voice and data experience. Since the MC9200 is compatible with the MC9000 Series accessories you already own, you can cost-effectively upgrade to the latest technology. And with millions of MC9000 Series mobile computers at work every day, all around the world, you get well-proven technology you "" and your workers "" can count on.

Technical Information

Scanner Range: Extended Range
Connectivity Technology: Wireless
Image Sensor: Imager
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
Barcode Symbology Supported:
- 1D
- 2D

General Information

Product Type: Handheld Terminal
Product Series: MC9000
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC9200
Product Name: MC9200 Mobile Computer

Physical Characteristics

Height: 7.6"
Width: 3.6"
Length: 9.1"
Weight (Approximate): 1.69 lb

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC9200 Mobile Computer
- Battery
- MC9200 Mobile Computer
- Battery
Certifications & Standards:
- IPv6
- FIPS 140-2
- CCXv4
- IP64
- MIL-STD 810G
- Electrical Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1
- EN60950-1/IE C60950-1
- WLAN and Bluetooth:
- FCC Part 15.247, 15.407
- RSS-210
- EN 300 328
- EN 301 893
- RF Exposure:
- FCC Part 2, FCC OET Bulletin 65 Supplement C
- RSS-102
- EN62311
- EN50371
- EMI/RFI:
- FCC Part 15
- RSS-210
- ICES 003 Class B
- EN 301 489-1
- EN 301 489-17
- EN55022 Class B
- EN55024
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IE C60825-1/EN60825-1
- LED Safety:
- IEC/EN60825-1 and IEC/EN62471

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g/n
Wireless Security:
- WPA2 Enterprise
- 802.1x
- EAP-TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAPv2)
- TTLS PAP
- TTLS MD5
- PEAP TLS
- PEAP (MSCHAPv2)
- PEAP EAP-GTC
- LEAP
- EAP-FAST TLS
- EAP-FAST MS-CHAPv2
- EAP-FAST EAP-GTC
- WPA2/AES

Memory

Flash Memory: 2 GB
Standard Memory: 512 MB
Memory Card Slot: Yes
Memory Card Supported: Secure Digital High Capacity (SDHC)

Processor & Chipset

Processor Manufacturer: Texas Instruments
Processor Speed: 1 GHz
Processor Type: OMAP 4

Display & Graphics

Screen Mode: VGA
Screen Size: 3.7"
Display Color: Color

Battery Information

Battery Capacity: 2200 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Software

Operating System: Microsoft Windows Embedded Compact CE 7.0

Touchscreen Information

Touchscreen: Yes

Warranty

Limited Warranty: 1 Year

Keyboard/Keypad

Number of Keys: 53

Full specifications (PDF)

See all Motorola MC9200 options »

Brand	Motorola
Model	MC9200
Network Connectivity	Bluetooth, 802.11a/b/g/n
IP Rating	IP64
Scanner Capability	2D
Operating Temperature	-4 F - 122 F
Processor	1GHz Dual Core OMAP 4
Style	Gun
Display Resolution	3.7 VGA
RAM Memory	512 MB
Operating System	Windows CE 7.0
Keypad	53
Scanner Type	Imager
Data Collection Type	Wireless
Drop Rating	6 ft.1.8 m

Recommended Accessories for Model: Motorola MC9200 Mobile Computer

	Motorola MC90X0 Wireless Terminal Accessories (CRD9000-110SES) Single Slot Cradle Kit (US). Includes Cradle, Power Supply, and US AC Line Cord. Does not include interface cable. In Stock: Ships Same Day	$294.30 + Add to Quote
	Motorola (50-16000-182R) AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) In Stock: Ships Same Day	$13.20 + Add to Quote
	Symbol 4 Slot Battery Charger Kit (SAC9000-400CES) Universal Battery Charger-Cradle, Charger Kit. Includes Battery Charger (4-Slot, Battery Charger, ES), Power Supply, DC Cord, and US AC Line Cord. (For MC90x0 and MC9190 Batteries) In Stock: Ships Same Day	$391.50 + Add to Quote
	Motorola (23844-00-00R) US AC Line Cord, Grounded, 7.5', Three wire for power supplies. In Stock: Ships Same Day	$16.90 + Add to Quote
	Symbol (CRD9000-1001SR) Single slot charging and communications cradle for MC9090/MC9097/MC9000/MC9060/MC9190-G/9200 with spare battery charging. Requires RS-232 or USB communication cable, Power supply with DC Line Cord (Part# KT-14000-148R) and AC line cord (Part# 23844-00-00R). If charging a spare MC90XX-S battery, (Part# BAP9000-100R) must also be ordered. In Stock: Ships Same Day	$244.90 + Add to Quote

All Accessories for the Motorola MC9200 »

Protect Your Product

	Motorola Service Contract - 2 year (Z1RE-MC92XX-2C00) 2 Year Zebra OneCare Essential Renewal. Includes Comprehensive coverage. Does not include coverage for cradles. Can only be ordered ONCE after initial Zebra OneCare contract expires. Ships in 3-5 Days	$253.20 + Add to Quote
	Motorola Service Contract - 1 year (Z1RE-MC92XX-1C00) 1 Year Zebra OneCare Essential Renewal. Includes Comprehensive coverage. Does not include coverage for cradles. Ships in 3-5 Days	$139.20 + Add to Quote
	Motorola Service Contract - 3 year (Z1BS-MC92XX-3003) 3 Year Zebra OneCare Service Center Select. Does not include Comprehensive coverage. Does not include coverage for cradles. (Requires customer-supplied spares pool in NA, not available for LA.) Ships in 3-5 Days	$607.60 + Add to Quote
	Motorola Service Contract - 1 year (Z1BS-MC92XX-1003) 1 Year Zebra OneCare Service Center Select. Does not include Comprehensive coverage. Does not include coverage for cradles. (Requires customer-supplied spares pool in NA, not available for LA.) Ships in 3-5 Days	$238.70 + Add to Quote
	Motorola Service Contract - 3 year (Z1BE-MC92XX-3000) 3 Year Zebra OneCare Service Center Essential. Does not include Comprehensive coverage. Does not include coverage for cradles. Ships in 3-5 Days	$485.50 + Add to Quote

All Service Contracts for the Motorola MC9200 »

Why BarcodesInc?

Best Value We work hard to deliver a solution that fits your budget.
Unmatched Customer Service A dedicated Account Manager is there to support you.
Deepest Technical Expertise Our team has decades of experience in all applications.

The Motorola MC92N0-G90SXGYA5WR is also known as MOT-MC92N0G90SXGYA01 or MC92N0G90SXGYA5WR .
