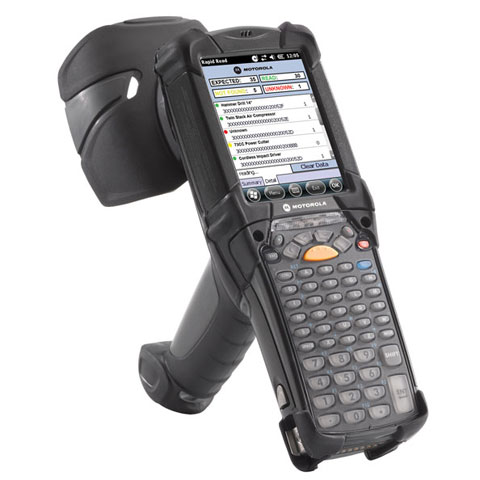

Motorola MC919Z-G30SWEQZ2EU RFID Reader

Motorola MC9190-Z - Wi-Fi (802.11a/b/g), RFID Reader, Handheld, 2D Imager Scanner, Color, 256MB/1GB, 53 key Keypad, Windows Mobile 6.5, Bluetooth, US Frequency-based, ETSI 302-208. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD9000-110SES). Quad slot charging cradle kit (Part# CRD9101-411CES) requires AC line cord (Part# 23844-00-00R).
Ideal for medium- to long-range applications in industrial environments in manufacturing, warehouse and transportation/logistics applications where tags are more than 10 feet away.

The MC9190-Z features a large 3.7" VGA colored touch-screen with reduced glare for easier use indoors and outdoors.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-Z
  • Product Name: MC9190-Z Handheld RFID Reader

Physical Characteristics

  • Height: 7.7"
  • Width: 4.7"
  • Length: 10.8"
  • Weight (Approximate): 2.15 lb

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 Enterprise
    • 802.1x
    • EAP-TLS
    • TTLS CHAP
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAPv2)
    • TTLS PAP
    • TTLS MD5
    • PEAP TLS
    • PEAP (MSCHAPv2)
    • PEAP EAP-GTC
    • LEAP
    • EAP-FAST TLS
    • EAP-FAST (MS-CHAPv2)
    • EAP-FAST EAP-GTC
    • WPA2/AES
    • CCX v4
    • FIPS 140-2

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Maximum Memory Card Size Supported: 32 GB
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

RFID

  • Maximum Read Distance: 30 ft
  • Maximum Write Distance: 48"
  • Maximum Coverage Angle: 70°
  • Maximum Operating Frequency: 868 MHz
  • Minimum Operating Frequency: 865 MHz

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: PXA320

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Mobile 6.5

Touchscreen Information

  • Touchscreen: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC9190-Z
Frequency UHF
Scanner Type Imager
Keypad Alphanumeric
Style Handheld
RAM Memory 256 MB
Interface Bluetooth
Operating System Windows Mobile 6.5

Recommended Accessories for Model: Motorola MC9190-Z RFID Reader
Motorola (50-16000-182R)
AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
In Stock: Ships Same Day
$13.20
+ Add to Quote
Motorola (23844-00-00R)
US AC Line Cord, Grounded, 7.5', Three wire for power supplies.
In Stock: Ships Same Day
$16.90
+ Add to Quote
Motorola MC9100/MC9190 Cradle (CRD9101-411CES)
4-Slot Charge Only Cradle Kit: Includes cradle, power supply, and DC line cord. US AC line cord (Part# 23844-00-00R) sold separately.
In Stock: Ships Same Day
$404.90
+ Add to Quote
Symbol (CRD9000-1001SR)
Single slot charging and communications cradle for MC9090/MC9097/MC9000/MC9060/MC9190-G/9200 with spare battery charging. Requires RS-232 or USB communication cable, Power supply with DC Line Cord (Part# KT-14000-148R) and AC line cord (Part# 23844-00-00R). If charging a spare MC90XX-S battery, (Part# BAP9000-100R) must also be ordered.
In Stock: Ships Same Day
$244.90
+ Add to Quote
Motorola (CRD9101-410EES)
4-Slot Ethernet Cradle Kit: Includes cradle, power supply (PWRS-14000-241R), DC line cord (Part# 50-16002-029R) and US AC line cord (Part# 23844-00-00R).
In Stock: Ships Same Day
$798.90
+ Add to Quote
Protect Your Product
Motorola Service Contract - 2 year (Z1RE-MC919Z-2C00)
2 Year Zebra OneCare Essential Renewal. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships in 3-5 Days
$348.10
+ Add to Quote
Motorola Service Contract - 1 year (Z1BE-MC919Z-1000)
1 Year Zebra OneCare Service Center Essential. Does not include Comprehensive coverage. Does not include coverage for cradles.
Ships in 3-5 Days
$222.40
+ Add to Quote
Motorola Service Contract - 5 year (Z1AE-MC919Z-5C00)
5 Year Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships in 3-5 Days
$868.90
+ Add to Quote

The Motorola MC919Z-G30SWEQZ2EU is also known as MOT-MC919ZG30SWEQZ2E or MC919ZG30SWEQZ2EU .
