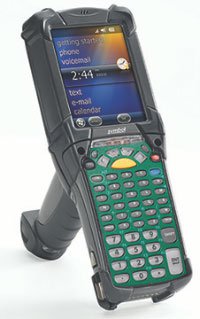

Motorola MC9190-G80SWEQA6WR Mobile Computer

0.0

(No reviews)

Be the first to

Write a Review

Motorola MC9190-G - Wi-Fi (802.11a/b/g), DL 2D Imager, Windows Mobile 6.5, 256MB RAM/1GB ROM, 53-Key keypad, Bluetooth. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD9000-110SES). Quad slot charging cradle kit (Part # CRD9101-411CES) requires AC line cord (Part# 23844-00-00R).

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings
US orders only
Add to cart to set purchase quantity and see savings.

Check Availability

High-powered platform for desktop-style application performance

The Motorola MC9190-G mobile computer is more rugged, more powerful, has a higher resolution display, better scanning performance and more scanning options than its predecessors. The next evolution in the highly successful MC9000 Series gives your workers the ability to process information and take action quickly and accurately, even in the harshest of environments. The MC9190-G offers the very latest in scanning technology, so no matter what type of barcodes you need to scan or their condition, you can count on accurate first-time split-second scanning. Whether you are currently using 1D, 2D barcodes or direct part marking (DPM), the MC9190-G's revolutionary 2D imager engines deliver high performance and easy omnidirectional scanning. The Motorola MC9190-G takes rugged design to a new level. Just like its predecessor, the MC9190-G passes the same industry-leading toughness tests, operating reliably after exposure to heat, cold, dust, rain, a spilled cup of coffee, and 2,000 consecutive tumbles in our rotating tumble drum.

Technical Information

Connectivity Technology: Wireless
Image Sensor: Imager
Electrostatic Discharge (ESD):
- +/-8 kV DC Indirect Discharge
- +/-8 kV DC Direct Discharge
- +/-15 kV DC Air Discharge
Drop Specification: 72" To Concrete
Barcode Symbology Supported:
- 1D
- 2D
- Large PDF Codes

General Information

Product Type: Handheld Terminal
Product Series: MC9000
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC9190-G
Product Name: MC9190-G Handheld Terminal

Physical Characteristics

Height: 9.1"
Width: 3.6"
Depth: 7.6"
Weight (Approximate): 1.56 lb

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC9190-G Handheld Terminal
- Lithium-Ion Battery
- MC9190-G Handheld Terminal
- Lithium-Ion Battery
Certifications & Standards:
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2 No. 60950-1
- EN60950-1/IEC60950-1
- WLAN and Bluetooth USA:
- FCC Part 15.247, 15.407
- RF Exposure USA:
- FCC Part 2
- FCC OET Bulletin 65
- Supplement C
- EMI/RFI USA:
- FCC Part 15
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
- LED Safety:
- IEC/EN60825-1
- IEC/EN62471

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- WPA2 Enterprise
- 802.1x
- EAP-TLS
- TTLS(CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
- PEAP (TLS, MSCHAPv2, EAP-GTC)
- LEAP
- EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
- WPA2/AES
- CCX v4
- FIPS 140-2
- IPv6

Memory

Flash Memory: 1 GB
Standard Memory: 256 MB
Memory Card Slot: Yes
Memory Card Supported:
- Secure Digital (SD) Card
- MultiMediaCard (MMC)

Processor & Chipset

Processor Manufacturer: Marvell
Processor Speed: 806 MHz
Processor Type: XScale

Display & Graphics

Screen Mode: VGA
Screen Size: 3.7"
Display Color: Color

Battery Information

Battery Capacity: 2200 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Software

Operating System: Windows Mobile 6.5

Touchscreen Information

Touchscreen: Yes

Warranty

Limited Warranty: 12 Month

Keyboard/Keypad

Number of Keys: 53

Full specifications (PDF)

See all Motorola MC9190-G options »

Brand	Motorola
Model	MC9190-G
Display Resolution	640 x 480
Network Connectivity	Bluetooth, 802.11g, 802.11a, 802.11a/b/g
Operating System	Windows Mobile 6.5
IP Rating	IP64
RAM Memory	256 MB
Operating Temperature	-4 F - 122 F
Style	Gun
Processor	806 MHz Marvell PXA320
Keypad	53
Scanner Type	Imager
Data Collection Type	Wireless
Scanner Capability	2D
Drop Rating	6 ft.1.8 m
