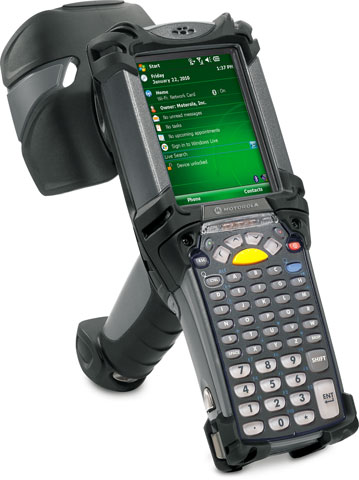

Motorola MC9090-GU0HJEQZ1US RFID Reader


0.0

(No reviews)

Be the first to

Write a Review
Motorola MC9090-Z - UHF RFID, Wi-Fi (802.11a/b/g), 1D Laser Scanner, Windows Mobile 6.1, 64MB RAM/128MB ROM, 53 key, Bluetooth.
HIGH-POWERED PLATFORM FOR DESKTOP-STYLE APPLICATION PERFORMANCE

Built on Motorola"s advanced RFID reader engine, the MC9090-Z delivers superior read rates and higher throughput for increased productivity. Single device simplicity translates into simpler and cost-effective mobility architecture with fewer devices to purchase, support, and manage. And the rugged design helps ensure reliable performance in the harshest environments.

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification: 72" To Concrete
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-G
  • Product Name: MC9090-G Handheld Terminal

Physical Characteristics

  • Height: 7.7"
  • Width: 4.7"
  • Length: 10.8"
  • Weight (Approximate): 2.20 lb

Other

  • Package Contents:
    • MC9090-G Handheld Terminal
    • Li-ion Battery
    • MC9090-G Handheld Terminal
    • Li-ion Battery
  • Certifications & Standards:
    • EMC:
    • EN 301 489-1
    • EN 301 489-17
    • EN 301 489-7
    • EN 55022
    • EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • FCC Part 15 Class B
    • ICES 003 Class B
    • IEC 60601-1-2
    • Electrical Safety:
    • C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
    • UL 60950-1
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • 21CFR1040.10
    • RF Exposure:
    • 787
    • 788
    • 789
    • 2835
    • Radio:
    • EN 300 328
    • EN 301 511
    • EN 301 893
    • IP64

RFID

  • Maximum Read Distance: 10 ft
  • Maximum Write Distance: 24"
  • Maximum Coverage Angle: 70°
  • Maximum Operating Frequency: 928 MHz
  • Minimum Read Distance: 2.40"
  • Minimum Write Distance: 12"
  • Minimum Operating Frequency: 902 MHz

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Display & Graphics

  • Screen Mode: QVGA
  • Display Color: Color

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Number of Keys: 53

Software

  • Operating System: Windows Mobile 6.1

Touchscreen Information

  • Touchscreen: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC9090-Z
