You've just added this product to the cart:

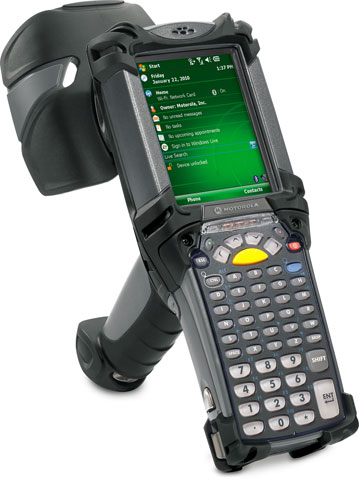

Motorola MC9090-GK0HJEQZ1US RFID Reader

Motorola MC9090-Z - UHF RFID, Wi-Fi (802.11a/b/g), 2D Imager, Windows Mobile 6.1, 64MB RAM/128MB ROM, 53 key, Bluetooth.

Full specifications (PDF)

HIGH-POWERED PLATFORM FOR DESKTOP-STYLE APPLICATION PERFORMANCE
Built on Motorola"s advanced RFID reader engine, the MC9090-Z delivers superior read rates and higher throughput for increased productivity. Single device simplicity translates into simpler and cost-effective mobility architecture with fewer devices to purchase, support, and manage. And the rugged design helps ensure reliable performance in the harshest environments.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72"
  • Barcode Symbology Supported: 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-G
  • Product Name: MC9090-G Handheld Terminal

Physical Characteristics

  • Height: 7.7"
  • Width: 4.7"
  • Length: 10.8"
  • Weight (Approximate): 2.21 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9090-G Handheld Terminal
    • Li-Ion Batery
    • MC9090-G Handheld Terminal
    • Li-Ion Batery
  • Certifications & Standards:
    • EMC:
    • EN 301 489-1
    • EN 301 489-17
    • EN 301 489-7
    • EN 55022
    • EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • FCC Part 15 Class B
    • ICES 003 Class B
    • IEC 60601-1-2
    • Electrical Safety:
    • C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
    • UL 60950-1
    • RF Exposure:
    • 787
    • 788
    • 789
    • 2835
    • 787,788,789,2835
    • Radio:
    • EN 300 328
    • EN 301 511
    • EN 301 893
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • 21CFR1040.10

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Display & Graphics

  • Screen Mode: QVGA
  • Display Color: Color

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.1

Keyboard/Keypad

  • Number of Keys: 53

Touchscreen Information

  • Touchscreen: Yes
Protect Your Product

Full specifications (PDF)

Brand Motorola
Model MC9090-Z
Style Handheld

Recommended Accessories for Model: Motorola MC9090-Z Mobile Handheld Computer

Category

  • Power Systems & Supplies (7)
  • Docks & Cradles (4)
  • Batteries (1)
  • Cables, Connectors, and Adapters (5)
  • Carrying and Protective Accessories (1)
  • Stylus (1)
  • Mounting Hardware & Stands (2)
  • Accessories (27)
Recommended Accessories for Model: Motorola MC9090-Z Mobile Handheld Computer

Power Systems & Supplies

Symbol (50-16002-011R)
DC Line Cord For Power supply.
In Stock: Ships Same Day
$24.21
+ Add to Quote
Motorola (CBL-DC-382A1-01)
DC line cord used with Mobile Computer's multi-slot cradles from a single LEVEL VI Power supply PWR-BGA12V108W0WW.
In Stock: Ships Same Day
$31.65
Why don't we show the price?

Motorola MC67 Accessories (50-16002-029R)
DC Cable For Power supply (Part# 50-14000-241R)
In Stock: Ships Same Day
$49.59
Why don't we show the price?

Motorola (PWR-BGA12V108W0WW)
AC/DC Power Supply (Brick). AC Input: 100-240V, 2.8A. DC Output: 12V, 9A, 108W. Requires: DC line cord and Country specific grounded AC line cord.
In Stock: Ships Same Day
$125.55
Why don't we show the price?

Motorola Power (PWRS-14000-242R)
Supply (100-240 VAC, 15VDC, 5A)
In Stock: Ships Same Day
$131.88
Why don't we show the price?

Symbol MC9000 (VCA9002-12R)
Auto Charge Cable (Cig Lighter, 12 Volt)
In Stock: Ships Same Day
$189.90
Why don't we show the price?

Symbol (VCA9000-24R)
Auto charge cable for MC9000,24V, Requires ADP9000-100.
Ships in 3-5 Days
$189.90
Why don't we show the price?

Docks & Cradles

Symbol (CRD9000-1001SR)
Single slot charging and communications cradle for MC9090/MC9097/MC9000/MC9060/MC9190-G/9200 with spare battery charging. Requires RS-232 or USB communication cable, Power supply with DC Line Cord (Part# KT-14000-148R) and AC line cord (Part# 23844-00-00R). If charging a spare MC90XX-S battery, (Part# BAP9000-100R) must also be ordered.
In Stock: Ships Same Day
$284.85
Why don't we show the price?

Symbol (SAC9000-4000R)
MC90XX 4-Slot battery charger. Charges 4 spare batteries. Must also order separately power supply (Part# PWRS-14000-242R), DC Cable (Part# 25-72614-01R), and AC Line Cord (Part# 23844-00-00R). If charging a spare MC90XX-S spare battery also order (Part# BAP9000-100R).
In Stock: Ships Same Day
$386.13
Why don't we show the price?

Symbol 4 Slot Battery Charger Kit (SAC9000-400CES)
Universal Battery Charger-Cradle, Charger Kit. Includes Battery Charger (4-Slot, Battery Charger, ES), Power supply, DC Cord, and US AC Line Cord. (For MC90x0 and MC9190 Batteries)
In Stock: Ships Same Day
$533.83
Why don't we show the price?

Motorola MC9090 Accessories (FLC9000-1001R)
MC90xx Fork Lift Cradle. Must order voltage specific power supply (Part# PWRS-14000-251R) or (Part# PWRS-14000-252R) and power input cable (Part# 25-103872-01R) separately.
In Stock: Ships Same Day
$1,171.05
Why don't we show the price?

Batteries

Zebra (BTRY-MC9X-26MA-01)
EVM, POWER PRECISION SPARE BATTERY FOR MC90XX-G, MC91XX-G, MC92XX & MC90XX-K ONLY, 2600 MAH
In Stock: Ships Same Day
$101.28
Why don't we show the price?

Cables, Connectors, and Adapters

Motorola Cable (25-62166-01R)
Assembly (USB)
In Stock: Ships Same Day
$60.14
Why don't we show the price?

Motorola Cable (25-62167-03R)
Dex Cables with Floating Jack Screws
In Stock: Ships Same Day
$66.47
Why don't we show the price?

Symbol (ADP9000-100R)
MC90XX Cable Adapter. This adapter provides communication to the host or printer and can be used for AC charging. Order RS-232, USB, and printer cable separately. Does not include power supply.
In Stock: Ships Same Day
$82.29
Why don't we show the price?

Symbol (ADP9000-110R)
MC90XX Cable Adapter. (5v - 350mA) for use with long range scanner LS3408ER
Ships in 3-5 Days
$85.46
Why don't we show the price?

Symbol (21-32665-48R)
Universal Battery Charger Adapter for MC90XX-G and MC90XX-K Only. For standalone charging purchase KT-32665-02R power supply kit. Purchase UBC Base UBC2000-I500DR to charge multiple adapters.
Ships in 3-5 Days
$122.00
Why don't we show the price?

Carrying and Protective Accessories

Symbol (11-67218-04R)
Protective Boot for MC90XX-G Only.
In Stock: Ships Same Day
$16.85
+ Add to Quote

Stylus

Symbol MC9090 Accessories (KT-MC9X3X-STLSG-05)
MC9X, MC3X-G Stylus for Gun Configuration, (Pack of 5 units)
In Stock: Ships Same Day
$22.70
+ Add to Quote

Mounting Hardware & Stands

Symbol (KT-61499-01R)
Cradle Bracket, Compatible with MC90XX and MC9190, Order One for Single Slot Cradle or Two for 4-Slot Cradles, - Use with Wall Mount Bracket (Part# KT-61498-01R).
Ships in 3-5 Days
$43.26
Why don't we show the price?

Symbol (KT-61498-01R)
Wall mounting bracket for MC9000/MC9050/MC9090/MC9097/MC9190. Order one for Single Slot cradle and one for the SAC9000. Order 2 for 4 Slot Cradles. Order Cradle Bracket separately to attach to the wall mount bracket.
Ships in 3-5 Days
$105.70
Why don't we show the price?

Accessories

Taylor Made Cases (TM-C9090-07)
Symbol/Motorola MC9XXX, 53 key open front case, with quick battery release, & one d-ring.
Taylor Made Cases (TM-FB9000-01)
Symbol 9090/9190/9200G fabric vehicle mount holster with grommet holser, web loops, and padded bottom
Ships in 3-5 Days
$56.98
+ Add to Quote
Taylor Made Cases (TM-HMC9500-HH)
Motorola MC9500 holster with front pocket, stainless steel belt attachment, and TM-LBL leather belt loop
Ships in 3-5 Days
$59.17
+ Add to Quote
Taylor Made Cases (TM-HU9000-06)
Symbol MC90xx with pistol grip holster, left/right handed, stitched belt loop, adjustable safety strap
Ships in 3-5 Days
$60.09
+ Add to Quote
Taylor Made Cases (TM-C9090-HH)
Symbol 9090/9190/9200 with pistol grip open front holster, one D-Ring, stylus holder, and TM-LBL leather belt loop
Ships in 3-5 Days
$60.16
+ Add to Quote
Taylor Made Cases (TM-C9090-KT)
Symbol 9090/9190/9200 with pistol grip open front casewith one D-ring, stylus holder, and TM-SS01MC shoulder strap
Ships in 3-5 Days
$62.08
+ Add to Quote
Motorola MC67 Accessories (PWRS-14000-241R)
Power supply (100-240 VAC, 12VDC, 9A). Provides power to the Four Slot Charge Only and Ethernet Cradles for MC9XXX Series. Also requires DC line cord and country specific three wire grounded AC line cord, (Part# 50-16002-029R) and (Part# 23844-00-00R). Order separately.
Taylor Made Cases (TM-K9000RM)
Symbol/Motorola MC90xx molded vehicle mount.Adjusts to accommodate MC9060/9090/9200 with or without pistol grip. Permanent RAM mount.Sits upright with full access to screen and keys
Ships in 3-5 Days
$98.51
+ Add to Quote
Taylor Made Cases (TM-K9090RM-1)
Symbol/Motorola MC9XXX K or G style vehicle holster with RAM mount. Unit sits upright (scanner up). Screen & keypad are fully accessible. WITH C SIZE RAM MOUNT
Taylor Made Cases (SL-FM-9000)
Symbol 9090/9190/9200 G series molded vehicle mount with permanent RAM mount
Ships in 3-5 Days
$118.57
+ Add to Quote
Taylor Made Cases (SL-FM9090RB)
Symbol/Motorola 9090/9190/9200 G with rubber boot molded vehicle mount with permanent RAM mount
Ships in 3-5 Days
$122.09
+ Add to Quote
Taylor Made Cases (SL-FM-9000-NP)
Symbol MX90xx G series molded wall/vehicle mountable holster with non-permanent RAM clamp bracket
Ships in 3-5 Days
$158.85
+ Add to Quote
Taylor Made Cases (SL-FM9090RB-NP)
Symbol/Motorola MC9XXX with rubber boot molded vehicle mount with non-permanent clamp.
Ships in 3-5 Days
$158.85
+ Add to Quote
Symbol (MDM9001-C010R)
Modem Module for MC9000/MC9060-G/MC9090 (Snap-On).
Symbol (KT-68638-01R)
Screen Protector Kit for MC9000/MC9060/MC9090 terminals. Set of 3.
Symbol (MSR9001-100R)
MC90XX Snap on Magnetic Stripe Reader
Motorola Cable (25-62164-01R)
RS-232 Cable For Cable Adapter Module (ADP9000-100r Must Be Ordered Seperately)
Symbol (KT-81680-03R)
Stylus Gun version gray with tether gray, 3 Pack
Symbol (KT-68144-50R)
Spare Stylus for MC9000-G Only - 50 Pack
Symbol (KT-81680-50R)
Stylus Gun version gray with tether gray, 50 Pack
Symbol (MDM9000-100R)
Modem Module for MC1000 Single Slot Cradle. Requires modem cable (Part# 25-63856-01R), not included.
Motorola MC90X0 (CRD9000-410CES)
MC9xx0 Wireless Terminal Accessories, Charging Cradle Kit. Includes Cradle (4-Slot, Charge Only - No Communication, ES), Power supply, DC Line Cord, and US AC Line Cord.
Symbol (CHS9000-4001CR)
MC90XX 4 Slot Cradle - Charges 4 terminals only. Order (Part# SAC9000-4000R) for spare battery charging. Must also order separately (Part# 50-14000-241R) (power supply), (Part# 50-16002-029R) (DC Cable), and (Part# 23844-00-00R) (AC Line Cord).
Symbol MC90X0 (CRD9000-410EES)
4 Slot Ethernet Charge Cradle Kit (US). Incl: 4 Slot Ethernet Cradle, Power supply, DC Cord, and US AC Cord.
Symbol (KT-21-61261-01)
Spare Lithium Ion 2200 mAh Battery for MC90XX-G, MC90XX-K, MC91XX, MC92XX and RD5000 Product Lines Only. (Replaces 21-65587-01 & 21-65587-02)
Symbol (CRD9000-4001ER)
4 Slot Ethernet Cradle. Must also purchase Power supply (Part# 50-14000-241R), DC cable (Part# 50-16002-029R), and AC line cord (Part# 23844-00-00R) separately.
Symbol (KT-68144-10R)
Spare Stylus for MC9000-G Only - 10 Pack

The Motorola MC9090-GK0HJEQZ1US is also known as SYM-MC9090GK0HJEQZ1U or MC9090GK0HJEQZ1US .
