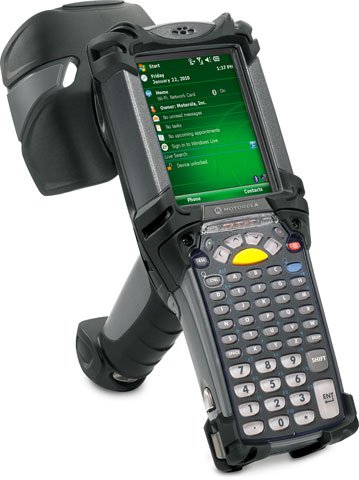

Motorola MC9090-GJ0HJEQZ1US RFID Reader

Motorola MC9090-Z - UHF RFID, Wi-Fi (802.11a/b/g), Long Range 1D Laser Scanner, Windows Mobile 6.1, 64MB RAM/128MB ROM, 53 key, Bluetooth.
HIGH-POWERED PLATFORM FOR DESKTOP-STYLE APPLICATION PERFORMANCE

Built on Motorola"s advanced RFID reader engine, the MC9090-Z delivers superior read rates and higher throughput for increased productivity. Single device simplicity translates into simpler and cost-effective mobility architecture with fewer devices to purchase, support, and manage. And the rugged design helps ensure reliable performance in the harshest environments.

Technical Information

  • Scanner Range: Long Range
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-G
  • Product Name: MC9090-G Handheld Terminal

Physical Characteristics

  • Height: 10.8"
  • Width: 4.7"
  • Depth: 7.7"

Other

  • Package Contents:
    • MC9090-G Handheld Terminal
    • Lithium-Ion Battery
    • BT Explorer
    • MC9090-G Handheld Terminal
    • Lithium-Ion Battery
    • BT Explorer
  • Certifications & Standards:
    • IP64
    • Electrical Safety:
    • UL60950-1
    • CSA C22.2 No.60950-1
    • IEC 60950-1
    • EMI/RFI Radio Versions:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210
    • ETSI EN 300 220
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

RFID

  • Maximum Read Distance: 10 ft
  • Maximum Write Distance: 23.98"
  • Maximum Coverage Angle: 70°
  • Maximum Operating Frequency: 928 MHz
  • Minimum Read Distance: 2.40"
  • Minimum Write Distance: 12.01"
  • Minimum Operating Frequency: 902 MHz

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.8"
  • Display Color: Color
  • Screen Resolution: 320 x 240

Network & Communication

  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale PXA270

Software

  • Operating System: Windows Mobile 6.1

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Number of Keys: 53

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC9090-Z
Style Handheld

Recommended Accessories for Model: Motorola MC9090-Z Mobile Computer
Symbol 4 Slot Battery Charger Kit (SAC9000-400CES)
Universal Battery Charger-Cradle, Charger Kit. Includes Battery Charger (4-Slot, Battery Charger, ES), Power supply, DC Cord, and US AC Line Cord. (For MC90x0 and MC9190 Batteries)
In Stock: Ships Same Day
$391.50
+ Add to Quote
Symbol (CRD9000-1001SR)
Single slot charging and communications cradle for MC9090/MC9097/MC9000/MC9060/MC9190-G/9200 with spare battery charging. Requires RS-232 or USB communication cable, Power supply with DC Line Cord (Part# KT-14000-148R) and AC line cord (Part# 23844-00-00R). If charging a spare MC90XX-S battery, (Part# BAP9000-100R) must also be ordered.
In Stock: Ships Same Day
$244.90
+ Add to Quote
Symbol (ADP9000-100R)
MC90XX Cable Adapter. This adapter provides communication to the host or printer and can be used for AC charging. Order RS-232, USB, and printer cable separately. Does not include power supply.
In Stock: Ships Same Day
$68.20
+ Add to Quote
Motorola MC9090 Accessories (FLC9000-1001R)
MC90xx Fork Lift Cradle. Must order voltage specific power supply (Part# PWRS-14000-251R) or (Part# PWRS-14000-252R) and power input cable (Part# 25-103872-01R) separately.
In Stock: Ships Same Day
$931.00
+ Add to Quote
Symbol (11-67218-04R)
Protective Boot for MC90XX-G Only.
In Stock: Ships Same Day
$15.10
+ Add to Quote

The Motorola MC9090-GJ0HJEQZ1US is also known as SYM-MC9090GJ0HJEQZ1U or MC9090GJ0HJEQZ1US .
