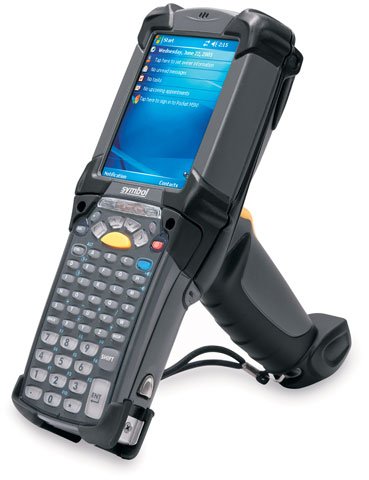

Motorola MC9090-GF0HJEFA6WW Mobile Computer
Motorola MC9090-GF0HJEFA6WW Mobile Computer
Motorola MC9090-G -
Wireless Gun Terminal: 802.11a/b/g, Standard Range Laser (SE1224), Color, 128MB, 53 key, Windows Mobile 5.0, Audio/Voice/Bluetooth
Share:
Maximize worker productivity!
The MC9090-G mobile computer maximizes mobile worker productivity by providing a flexible, always-on connection to the network. The MC9090-G provides the most advanced mobile operating systems available with a choice of a familiar Windows environment or an application-specific environment. Additionally, it supports a variety of multimedia applications and its Intel 624 MHz enhanced memory ensures retention of mission-critical data. The Bluetooth option allows users to wirelessly synchronize and print. The MC9090-G's rugged construction, which passed stringent drop and tumble tests, dramatically reduces repair and downtime costs while its 3.8" screen makes it easy to read. The pistol grip allows for comfortable and efficient use in a variety of applications such as manufacturing, delivery and retail floors.
Technical Information
- Scanner Range: Standard Range
- Connectivity Technology: Wireless
- Light Source: Laser
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
- Barcode Symbology Supported:
- Codabar
- Code 39
- Code 93
- Code 128
- Discrete 2 of 5
- Interleaved 2 of 5
- MSI
- RSS
- UCC/EAN 128
- UPC/EAN
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC9090-G
- Product Name: MC9090-G Mobile Computer
Physical Characteristics
- Height: 7.6"
- Width: 3.6"
- Length: 9.1"
- Weight (Approximate): 1.56 lb
Other
- Package Contents:
- MC9090-G Mobile Computer
- Battery
- Hand Strap
- Stylus
- BT Explorer
- Regulatory Guide
- Quick Start G
- MC9090-G Mobile Computer
- Battery
- Hand Strap
- Stylus
- BT Explorer
- Regulatory Guide
- Quick Start G
- Certifications & Standards:
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2 No. 60950-1
- EN60950-1
- IEC 60950-1
- EMI/RFI:
- FFC Part2(SAR)
- FCC Part 15
- RSS210
- EN 300 328
- EN 301 487
- EN55022
- EN55024
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
- Additional Information:
- Communication Options: Audio
- Region: Worldwide
- Voice Communication:
- Voice-over-IP Ready (P2P, PBX, PPT)
- Wi-Fi Certified
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- AES
- LEAP
- PEAP (MS-CHAP v2)
- PEAP-TLS
- TKIP
- TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS-MD5
- TTLS-PAP
- WEP 40 bit
- WEP 128 bit
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: QVGA
- Screen Size: 3.8"
- Display Color: Color
- Screen Resolution: 320 x 240
Memory
- Flash Memory: 128 MB
- Standard Memory: 64 MB
- Memory Card Slot: Yes
- Memory Card Supported: Secure Digital (SD) Card
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 624 MHz
- Processor Type: XScale
Battery Information
- Battery Capacity: 2200 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Keyboard/Keypad
- Keyboard Type: Alphanumeric
- Number of Keys: 53
Software
- Operating System: Windows Mobile 5.0 Premium Edition
Warranty
- Limited Warranty: 1 Year
Touchscreen Information
- Touchscreen: Yes
Full specifications (PDF)| Brand | Motorola |
| Model | MC9090-G |
| IP Rating | IP64 |
| Network Connectivity | Bluetooth, 802.11g, 802.11a, 802.11a/b/g |
| Display Resolution | 240 x 320 |
| RAM Memory | 64 MB |
| Operating System | Windows Mobile, Windows Mobile 5.0 Premium |
| Style | Gun |
| Scanner Type | Laser |
| Data Collection Type | Wireless |
| Drop Rating | 6 ft.1.8 m |
Recommended Accessories for Model: Motorola MC9090-G Mobile Computer
|
Motorola (50-16000-182R)
AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
:
|
$13.20 + Add to Quote |
|
Symbol 4 Slot Battery Charger Kit (SAC9000-400CES)
Universal Battery Charger-Cradle, Charger Kit. Includes Battery Charger (4-Slot, Battery Charger, ES), Power supply, DC Cord, and US AC Line Cord. (For MC90x0 and MC9190 Batteries)
:
|
$391.50 + Add to Quote |
|
Motorola MC90X0 Wireless Terminal Accessories (CRD9000-110SES)
Single Slot Cradle Kit (US). Includes Cradle, Power supply, and US AC Line Cord. Does not include interface cable.
:
|
$294.30 + Add to Quote |
|
Motorola (23844-00-00R)
US AC Line Cord, Grounded, 7.5', Three wire for power supplies.
:
|
$16.90 + Add to Quote |
|
Symbol (CRD9000-1001SR)
Single slot charging and communications cradle for MC9090/MC9097/MC9000/MC9060/MC9190-G/9200 with spare battery charging. Requires RS-232 or USB communication cable, Power supply with DC Line Cord (Part# KT-14000-148R) and AC line cord (Part# 23844-00-00R). If charging a spare MC90XX-S battery, (Part# BAP9000-100R) must also be ordered.
:
|
$243.20 + Add to Quote |
Protect Your Product
|
Symbol Service Contract (SSB-MC909R-50)
Service from the Start BRONZE 5 Year INCL COMPREHENSIVE NO CRADLES
Ships in 3-5 Days
|
$794.90 + Add to Quote |
The Motorola MC9090-GF0HJEFA6WW is also known as SYM-MC9090GF0HJEFA6W or MC9090GF0HJEFA6WW .
