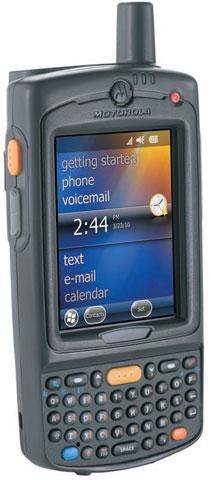

Motorola MC75A6-P4CSWRRHFWR RFID Reader


0.0

(No reviews)

Be the first to

Write a Review
Motorola MC75 HF RFID - HF RFID, GPS, 3G Wwan HSDPA, WLAN 802.11a/b/g, 2D Imager, Camera, 256MB/1GB, Numeric Keypad, Windows Mobile 6.5, 1.5x Battery, Bluetooth.
Unparalleled voice functionality and interoperability

Improve the service levels in your ticketing, secure transactions, and identity asset management applications with the MC75 HF RFID and Near Field Communications (NFC) based processes. Now you can give your mobile workers one device that can replace six devices and deploy a feature set that includes an HF RFID reader/writer, 3.5G WWAN, mobile computer, barcode scanner and imager, GPS, and 3.2 megapixel camera.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 48" To Concrete
    • 60" To Concrete
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75A
  • Product Name: MC75A RFID Handheld Terminal

Physical Characteristics

  • Height: 3.3"
  • Width: 1.7"
  • Depth: 6"
  • Weight (Approximate): 14.90 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC75A RFID Handheld Terminal
    • Battery
    • MC75A RFID Handheld Terminal
    • Battery
  • Certifications & Standards:
    • UL CLASS I,II,III / DIV 2, GROUP A,B,C,D,F,G
    • CCX v4 Certified
    • Environmental sealing:IP54
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES 003 Class B
    • EN55022 Class B
    • EN301 489-1
    • EN301 489-3
    • EN301 489-7
    • EN301 489-17
    • EN301 489-24
    • EN6060
    • AS/NZS CISPRA 2.2
    • Electrical Safety:
    • EN 60950-1
    • IEC 60950-1
    • Certified to UL / cUL 60950-1
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class2/FDA Class II
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • RSS-102
    • EN 50380
    • Radio Communications Standard 2003

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Infrared: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: HSDPA
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • FIPS 140-2 Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD High Capacity (microSDHC)

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Type: Numeric

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC75 HF RFID
RAM Memory 256 MB
Scanner Type Imager
Keypad Numeric
Style Handheld
Frequency HF
Operating System Windows Mobile 6.5
