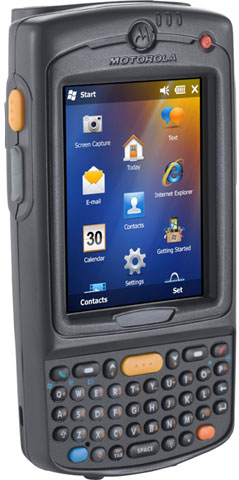

Motorola MC75A0-P80SWRQA9WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Motorola MC75A - 0 Term Lp/Bbdl/256/1GB Num/Windows Mobile 6.5 1.5x

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

The 3.5G Motorola MC75A, one of the world's premium EDAs, offers more features and functionality, in a field-proven rugged form factor, than any other device in its class. The turbocharged MC75A addresses business critical mobility needs by maximizing processing power, rugged design, application flexibility, data capture capabilities, connectivity options, security and manageability - all in one device. Two options (3.5G WWAN/WLAN and WLAN only) enable enterprises to standardize on a single EDA to support workers inside and outside the four walls. Add a field-proven ergonomic design that is easy-to-carry and easy to use, and you have maximum value in a minimum footprint, all at the right price.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 60" To Concrete
    • 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75A
  • Product Name: MC75A Handheld Terminal

Physical Characteristics

  • Height: 7"
  • Width: 3.3"
  • Depth: 1.7"
  • Weight (Approximate): 13.72 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC75A Handheld Terminal
    • Li-Ion Battery
    • MC75A Handheld Terminal
    • Li-Ion Battery
  • Certifications & Standards:
    • IP54
    • Electrical Safety:
    • Certified to UL / cUL 60950-1
    • IEC / EN60950-1
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 50360
    • Radiocommunications Standard 2003
    • EMI/RFI:
    • FCC Part 15
    • Class B
    • ICES 003 Class B
    • EN55022 Class B
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • AS/NZS CISPRA-22

Network & Communication

  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Infrared: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • WEP
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP
    • AES
    • LEAP

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital High Capacity (SDHC)
    • microSD Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Mobile 6.5

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Type: Numeric

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC75A
Network Connectivity 802.11g, 802.11a, 802.11a/b/g, Bluetooth
Operating System Windows Mobile 6.5
IP Rating IP54
Display Resolution 640 x 480
Style Phone-size
Operating Temperature 14 F - 122 F
Processor 806 MHz Marvell PXA320
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 2D
Drop Rating 5 ft.1.5 m
