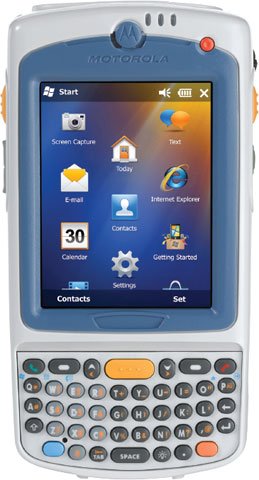

Motorola MC75A0-H10SWRQA9WR Mobile Computer

Enable next generation health care mobility with the MC75A0-HC

The Motorola MC75A0-HC takes health care quality and patient safety to the next level. The MC75A0-HC offers Motorola's most advanced scanning technology to capture even damaged and poorly printed 1D and 2D barcodes. Robust wireless application performance and wireless connectivity options allow health care givers to access patient records, accurately administer medication, monitor patient vital signs and more - all in just seconds, anywhere inside the facility. Government grade FIPS 140-2 security easily meets stringent HIPAA privacy regulations. Add a proven easy-to-carry and easy-to-use ergonomic design, and the MC75A0-HC gives maximum value in a minimum footprint - all at the right price.

Technical Information

Connectivity Technology: Wireless
Electrostatic Discharge (ESD):
- +/-8 kV DC Direct Discharge
- +/-15 kV DC Air Discharge
Drop Specification: 60" To Concrete

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC75
Product Name: MC75 Handheld Terminal

Physical Characteristics

Height: 6"
Width: 3.3"
Depth: 1.7"
Weight (Approximate): 14.92 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC75 Handheld Terminal
- Lithium Ion Battery
- MC75 Handheld Terminal
- Lithium Ion Battery
Certifications & Standards:
- IP54
- Electrical Safety:
- UL / cUL 60950-1
- IEC / EN60950-1
- WLAN and Bluetooth:
- FCC Part 15.247
- 15.407
- Canada:
- RSS-210
- EU:
- EN 300 328
- EN 301 893
- ARIB STD-T33
- ARIB STD-T66
- ARIB STD-T71
- AS/NZS 4268
- RF Exposure:
- FCC Part 2
- FCC OET Bulletin 65 Supplement C
- RSS-102
- EU:
- EN 50360
- Radiocommunications Standard 2003
- EMI/RFI:
- FCC Part 15
- Class B
- ICES 003 Class B
- EN55022 Class B
- EN 301 489-1
- EN 301 489-7
- EN 301 489-17
- EN 301 489-19
- EN 301 489-24
- EN 60601-1-2
- AS/NZS CISPRA-22
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: External
Infrared: Yes
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- WPA2
- WEP (40 or 128 bit)
- TKIP
- TLS
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS (CHAP)
- TTLS-MD5
- TTLS-PAP
- PEAP-TLS
- PEAP (MS-CHAP v2)
- AES
- LEAP

Display & Graphics

Display Screen Type: LCD
Screen Mode: VGA
Screen Size: 3.5"
Display Color: Color
Screen Resolution: 640 x 480

Memory

Flash Memory: 1 GB
Standard Memory: 256 MB
Memory Card Slot: Yes
Memory Card Supported: microSD High Capacity (microSDHC)

Battery Information

Battery Capacity: 3600 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 806 MHz
Processor Type: XScale

Touchscreen Information

Touchscreen: Yes

Software

Operating System: Windows Mobile 6.1

Warranty

Limited Warranty: 12 Month

Keyboard/Keypad

Keyboard Type: Numeric

Full specifications (PDF)

See all Motorola MC75A0-HC options »

Brand	Motorola
Model	MC75A0-HC
Network Connectivity	802.11 b/g, Bluetooth, 802.11g, 802.11a, 802.11a/b/g
Style	Phone-size
Operating System	Windows Mobile 6.5
Display Resolution	640 x 480
Operating Temperature	14 F - 122 F
RAM Memory	256 MB
IP Rating	IP54
Processor	806 MHz Marvell PXA320
Scanner Type	Imager
Data Collection Type	Wireless
Scanner Capability	2D
Drop Rating	5 ft.1.5 m
