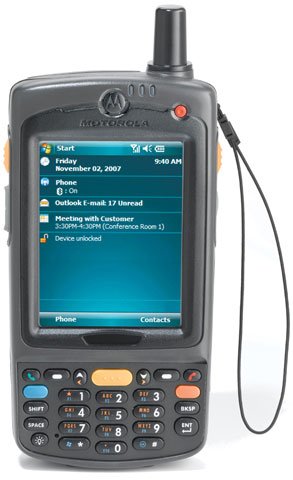

Motorola MC7596-PYCSUQWAAWR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Motorola MC75 - 96 Term Gps/WLAN HSDPA 1D-SE950 Lsr/Camera/QWERTY/Windows Mobile 6.1
Rugged, lightweight design

No matter what your workers need to get the job done, Motorola's MC75 Worldwide Enterprise Digital Assistant delivers by combining an unparalleled number of business capabilities into an easy-to-carry rugged device. The MC75's 3.5G HSDPA and 3G CDMA-EVDO (Rev A) support provides high performance voice and data services around the globe. Your workers will enjoy having all the features they need right at their fingertips in the MC75, designed to endure all-day, everyday use outside the enterprise - including push-to-talk, integrated GPS with superior sensitivity and tracking capabilities, 1D and 2D barcode scanning, a high resolution 2 megapixel autofocus color camera, 802.11a/b/g wireless LAN (WLAN), Bluetooth and IrDA connectivity.

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 48" To Concrete
    • 60" To Concrete73.4°F (23°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75
  • Product Name: MC75 Mobile Computer

Physical Characteristics

  • Width: 3.3"
  • Depth: 1.7"
  • Length: 6"
  • Weight (Approximate): 15.70 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC75 Mobile Computer
    • Battery
    • MC75 Mobile Computer
    • Battery
  • Certifications & Standards:
    • Sealing: IP54
    • EMC
    • EN 301 489-1
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-19
    • IEC 60601-1-2
    • EN 55022
    • FCC Part 15 Class B
    • ICES 003 Class B
    • EN 55024
    • Electrical Safety:
    • EN 60950-1
    • IEC 60950-1
    • Certified to UL / cUL 60950-1
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class2/FDA Class II
    • RF Exposure:
    • USA: FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • Canada: RSS-102
    • EU:EN 50360
    • Australia: Radio communications Standard 2003
  • Additional Information:
    • Tumble Specification: 1,000 1.6 ft./.5 m tumbles (2,000 drops)
    • Region: World Wide
    • Camera: 2 Megapixel
    • Branding: Audio

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Cellular Network Supported: GSM
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: HSDPA
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 512 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale PXA270

Keyboard/Keypad

  • Number of Keys: 44
  • Keyboard Layout: QWERTY

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.1 Professional Edition

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC75
Network Connectivity 802.11g, 802.11a, 802.11a/b/g, Bluetooth
Style Phone-size
Operating System Windows Mobile 6.1 Pro
IP Rating IP54
Operating Temperature 14 F - 122 F
Display Resolution 640 x 480
Processor 624 MHz Intel XScale
RAM Memory 128MB
Scanner Type Laser
Data Collection Type Wireless
Scanner Capability 1D
Drop Rating 5 ft.1.5 m
