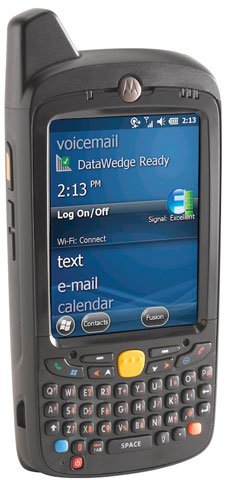

Motorola MC67NA-PDABAA00300 Mobile Handheld Computer

Motorola MC67 - Wi-Fi (802.11A/B/G/N), GPS, 4G WWAN HSPA+, 2D Imager, Camera, Windows Mobile 6.5, 512Mb/2Gb, QWERTY Keypad, Bluetooth, Extended 1.5 x 3600 mAh Battery. Interface Cables And Charging Cradle Sold Separately. Single Slot Charging Cradle Kit (Part# Crd5500-100Ues). Four Slot Charging Cradle Kit (Part# Crd5501-401Ces), Requires Us Ac Line Cord (Part# 23844-00-00R).
Give your field workforce the tools they need to work faster and smarter than ever before.

With the Motorola MC67 your field workforce has all the tools they need to work harder and faster. The rugged 3G HSPA MC67 ensures that workers can do whatever it takes to get the job done, access information in your backend system, scan practically any barcode in almost any condition, capture documents to simplify record keeping, take and send video and photos for real-time repair support, call customers with an arrival window. So whether your workers are involved in sales, service, deliveries, inspections or issuing citations, they have the tools they need to improve efficiency, accuracy and customer service all in one rugged device that loves life in the field.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV AC Air Discharge
    • +/-8 kV AC Indirect Discharge
    • +/-8 kV AC Direct Discharge
  • Drop Specification:
    • 72" @ -4°F (-20°C) to 122°F (50°C)
    • 96"

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC67
  • Product Name: MC67 Mobile Computer

Physical Characteristics

  • Width: 3"
  • Depth: 1.3"
  • Length: 6.4"
  • Weight (Approximate): 13.58 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • MC67 Mobile Computer
    • Battery
    • MC67 Mobile Computer
    • Battery
  • Certifications & Standards:
    • Mil-StD 810G
    • IP67
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class 2/FDA Class II
    • EMI/RFI:
    • FCC Part 15, Class B
    • ICES-003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPR 22
    • Electrical Safety:
    • IEC/UL/CSA/EN 60950-1
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 50360
    • EN 62311
    • Radio Communications Standard 2003
    • WLAN and Bluetooth (PAN):
    • FCC Part 15.247, 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • AS/NZS 4268
    • Wireless Wide Area Network:<br> GSM-HSDPA/HSUPA
    • 3GPP TS 51.010
    • 3GPP TS 34.121
    • 3GPP TS 34.123
    • GCF and PTCRB Approved
    • FCC Part 22, Part 24
    • RSS-132
    • RSS-133
    • EN301 511
    • EN301 908
    • AS/ACIF S042.1, 3 &amp; 4

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Cellular Data Connectivity Technology: HSPA+
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 2 GB
  • Standard Memory: 512 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Speed: 1 GHz
  • Processor Type: OMAP 4

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Microsoft Windows Embedded Handheld 6.5 Professional

Keyboard/Keypad

  • Keyboard Layout: QWERTY

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC67
Network Connectivity 802.11a/b/g/n, HSPA+, 802.11n, 802.11g, 802.11a, Bluetooth
Operating System Windows Mobile, Windows Mobile 6.5
Display Resolution 640 x 480
Scanner Capability 1D, 2D
RAM Memory 512 MB
Style Phone-size
IP Rating IP67
Operating Temperature -4 F - 122 F
Processor 1GHz Dual Core OMAP 4
Drop Rating 8 ft.2.4 m
Scanner Type Imager
Data Collection Type Wireless
