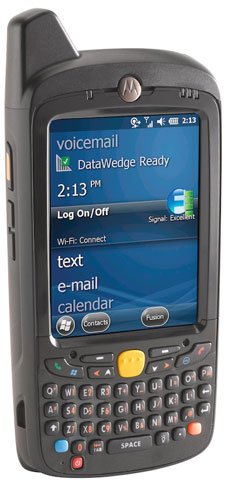

Motorola MC67NA-PBABAB00300 Mobile Computer

Motorola MC67 - Wi-Fi (802.11A/B/G/N), 2D Imager Scanner, Windows Mobile 6.5, 512Mb/2Gb, 4G WWAN HSPA+, Numeric Keypad, GPS, Bluetooth, Extended 1.5X 3600 mAh Battery. Interface Cables And Charging Cradle Sold Separately. Single Slot Charging Cradle Kit (Part# Crd5500-100Ues). Four Slot Charging Cradle Kit (Part# Crd5501-401Ces), Requires Us Ac Line Cord (Part# 23844-00-00R).

See Replacement ›

Give your field workforce the tools they need to work faster and smarter than ever before.

With the Motorola MC67 your field workforce has all the tools they need to work harder and faster. The rugged 3G HSPA MC67 ensures that workers can do whatever it takes to get the job done, access information in your backend system, scan practically any barcode in almost any condition, capture documents to simplify record keeping, take and send video and photos for real-time repair support, call customers with an arrival window. So whether your workers are involved in sales, service, deliveries, inspections or issuing citations, they have the tools they need to improve efficiency, accuracy and customer service all in one rugged device that loves life in the field.

Technical Information

Connectivity Technology: Wireless
Image Sensor: Imager
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification:
- 94.49"
- 70.87" @ -4°F (-20°C) to 122°F (50°C)
Barcode Symbology Supported:
- 1D
- 2D

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC67
Product Name: MC67 Mobile Computer

Physical Characteristics

Width: 3"
Depth: 1.3"
Length: 6.4"
Weight (Approximate): 13.58 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- WEEE
- RoHS
Package Contents:
- MC67 Mobile Computer
- Battery
- MC67 Mobile Computer
- Battery
Certifications & Standards:
- MIL-STD 810G
- IP65
- IP67
- Laser safety:
- EN 60825-1
- IEC 60825-1
- IEC Class 2
- FDA Class II
- EMI/RFI:
- FCC Part 15, Class B
- ICES-003 Class B
- EN55022 Class B
- EN 55024
- EN 301 489-1
- EN 301 489-3
- EN 301 489-7
- EN 301 489-17
- EN 301 489-24
- EN 60601-1-2
- EN 50121-3-2
- EN 50121-4
- AS/NZS CISPR 22
- Electrical Safety:
- IEC
- UL
- CSA
- EN 60950-1
- RF Exposure:
- FCC Part 2
- FCC OET Bulletin 65 Supplement C
- RSS-102
- EN 50360
- EN 62311
- Radiocommunications Standard 2003
- WLAN and Bluetooth (PAN):
- FCC Part 15.247, 15.407
- RSS-210
- EN 300 328
- EN 301 893
- AS/NZS 4268
- Wireless Wide Area Network:
- 3GPP TS 51.010
- 3GPP TS 34.121
- 3GPP TS 34.123
- GCF
- PTCRB Approved
- FCC Part 22, Part 24
- RSS-132
- RSS-133
- EN301 511
- EN301 908
- AS/ACIF S042.1, 3 & 4

Network & Communication

Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n
Cellular Data Connectivity Technology: HSPA
Wireless Security:
- WPA2 (Personal or Enterprise)
- 802.1x
- EAP-TL S
- TTL S (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
- PEAP (TL S, MSCHAPv2, EAP-GTC)
- LEAP
- EAP-FAST (TL S, MS-CHAPv2, EAP-GTC)

Display & Graphics

Screen Mode: VGA
Screen Size: 3.5"
Display Color: Color
Screen Resolution: 640 x 480

Memory

Flash Memory: 2 GB
Standard Memory: 512 MB
Memory Card Slot: Yes
Memory Card Supported: microSD Card

Battery Information

Battery Capacity: 3600 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Speed: 1 GHz
Processor Type: OMAP

Warranty

Limited Warranty: 1 Year

Keyboard/Keypad

Keyboard Type: Numeric

Touchscreen Information

Touchscreen: Yes

Software

Operating System: Microsoft Windows Embedded Handheld 6.5 Professional

Full specifications (PDF)

See all Motorola MC67 options »

Brand	Motorola
Model	MC67
Network Connectivity	802.11g, 802.11a, Bluetooth, 802.11a/b/g/n, HSPA+, 802.11n
IP Rating	IP67
Operating System	Windows Mobile 6.5
Display Resolution	640 x 480
Scanner Capability	1D, 2D
RAM Memory	512 MB
Operating Temperature	-4 F - 122 F
Processor	1GHz Dual Core OMAP 4
Style	Phone-size
Scanner Type	Imager
Data Collection Type	Wireless
Drop Rating	8 ft.2.4 m
