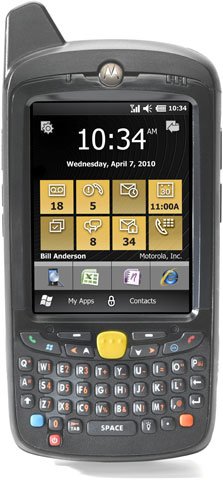

Motorola MC659B-PH0BAA00200 Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

Motorola MC65 - Gps, 3G Wwan Hsdpa & Cdma, Wlan 802.11a/b/g, 2D Dl Imager, Camera, Windows Mobile 6.5, 512Mb/1Gb, QWERTY Key, Bluetooth, Extended 1.5X 3600 mAh Battery
Rugged, Software-Configurable, Dual 3.5G WAN Enterprise Digital Assistant

The Motorola MC65 Enterprise Digital Assistant gives mobile workers the tools in hand to get the job done right, right now. As one of the toughest and most flexible EDAs on the market, the MC65 delivers desktop performance to provide instant access to the applications and information back in the office. Capture and process just about any type of data on-site, quickly and easily - from a single document to hundreds of barcodes, a library of photos or a signature. Activate and reactivate the MC65 on virtually any cellular network in the world, eliminating the need to purchase network technology (GSM or CDMA) specific devices, extending device lifecycle and ensuring that each and every worker has the best connection possible. Add a customizable user interface that makes doing business easier than ever and you have a real workforce multiplier - a device that turns paperwork and repeat visits into more tasks completed per day.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 60" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC65
  • Product Name: MC65 Handheld Terminal

Physical Characteristics

  • Height: 6.4"
  • Width: 3"
  • Depth: 1.3"
  • Weight (Approximate): 12.66 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • MC65 Handheld Terminal
    • Lithium Ion Battery
    • Stylus
    • Screen Protector
    • Hand Strap
    • Battery Door
    • MC65 Handheld Terminal
    • Lithium Ion Battery
    • Stylus
    • Screen Protector
    • Hand Strap
    • Battery Door
  • Certifications & Standards:
    • WiFi Certified
    • IP64
    • MIL-STD 810G
    • WLAN and Bluetooth (PAN):
    • FCC Part 15.247, 15.407
    • Wireless WAN (GSM HSUPA/HSPA):
    • 3GPP TS 51.010
    • 3GPP TS 34.121
    • 3GPP TS 34.123
    • GCF and PTCRB approved
    • FCC Part 22
    • FCC Part 24
    • Wireless WAN (CDMA-EVDO Rev A):
    • FCC Part 22, Part 24
    • RF Exposure:
    • FCC Part 2, FCC OET Bulletin 65 Supplement C
    • EMI/RFI:
    • FCC Part 15 Class B
    • Laser Safety:
    • IEC Class2 / FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: External
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Cellular Data Connectivity Technology:
    • HSPA
    • EVDO
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 512 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Qualcomm
  • Processor Speed: 600 MHz

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Layout: QWERTY

Full specifications (PDF)
