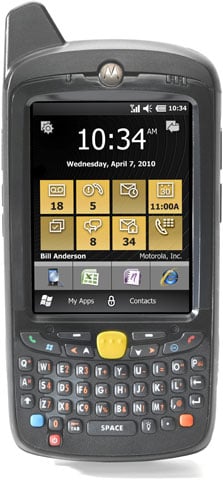

Motorola MC659B-PD0BAE00100 Mobile Computer

Motorola MC65 - GPS, 3G WWAN HSDPA & CDMA, WLAN 802.11a/b/g, 2D IMAGER, CAMERA, Windows Mobile 6.5, 256MB/1GB, PIM KEY, Bluetooth, EXTENDED 1.5X 3600 mAh BATTERY
Rugged, Software-Configurable, Dual 3.5G WAN Enterprise Digital Assistant

The Motorola MC65 Enterprise Digital Assistant gives mobile workers the tools in hand to get the job done right, right now. As one of the toughest and most flexible EDAs on the market, the MC65 delivers desktop performance to provide instant access to the applications and information back in the office. Capture and process just about any type of data on-site, quickly and easily - from a single document to hundreds of barcodes, a library of photos or a signature. Activate and reactivate the MC65 on virtually any cellular network in the world, eliminating the need to purchase network technology (GSM or CDMA) specific devices, extending device lifecycle and ensuring that each and every worker has the best connection possible. Add a customizable user interface that makes doing business easier than ever and you have a real workforce multiplier - a device that turns paperwork and repeat visits into more tasks completed per day.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC65
  • Product Name: MC65 Rugged Mobile Computer

Physical Characteristics

  • Width: 3"
  • Depth: 1.3"
  • Length: 6.4"
  • Weight (Approximate): 12.66 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Package Contents:
    • MC65 Rugged Mobile Computer
    • Battery
    • MC65 Rugged Mobile Computer
    • Battery
  • Certifications & Standards:
    • MIL-STD 810G
    • IEC
    • IP64
    • Electrical Safety:
    • IEC
    • UL
    • CSA
    • EN 60950-1
    • Wireless WAN (GSM HSUPA/HSPA):
    • 3GPP TS 51.010
    • 3GPP TS 34.121
    • 3GPP TS 34.123
    • GCF
    • PTCRB Approved
    • FCC Part 22, Part 24
    • RSS-132
    • RSS-133
    • EN301 511
    • EN301 908
    • AS/ACIF S042.1 & 3
    • Wireless WAN (CDMA-EVDO Rev A):
    • FCC Part 22, Part 24
    • RSS-132
    • RSS-133
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 50360
    • EN 62311
    • Radio communications Standard 2003
    • EMI/RFI:
    • FCC Part 15, Class B
    • ICES 003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPRA-22
    • Laser Safety:
    • IEC Class2
    • FDA Class II in Accordance with IEC60825-1
    • EN60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Cellular Network Supported:
    • CDMA
    • GSM
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: HSDPA
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Processor & Chipset

  • Processor Manufacturer: Qualcomm
  • Processor Speed: 600 MHz
  • Processor Type: 7627

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.5

Full specifications (PDF)
