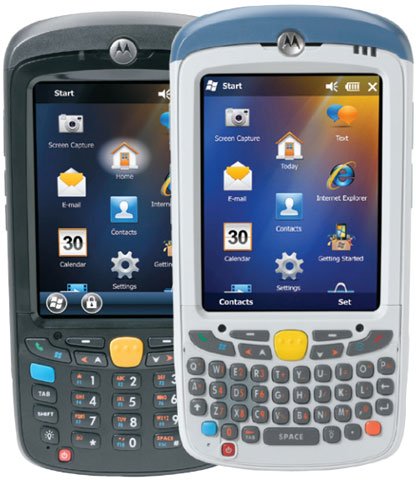

Motorola MC55N0-P30SWQQA7US Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

Motorola MC55N0 - MC: LP, BB, VGA, 256MB/1GB, QWERTY, 6.5,1X. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD5500-100UES). Four slot charging cradle kit (Part# CRD5501-401CES), requires US AC line cord (Part# 23844-00-00R).
The most rugged design yet in this class

When it comes to meeting the needs of your workforce, the rugged Wi-Fi MC55N0 excels with its perfect blend of form and function. The MC55N0 offers organizations the right level of features, the right level of rugged design and support for the most demanding business applications anywhere in your facility indoors and outside. The compact and lightweight mobile computer is easy to carry and easy to use, with a sleek design that is at home in front of customers.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC
  • Drop Specification: 70.87"
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC55N0
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Name: MC55N0 Mobile Computer

Physical Characteristics

  • Width: 3"
  • Depth: 1.1"
  • Length: 5.8"
  • Weight (Approximate): 11.11 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC55N0 Mobile Computer
    • Rechargeable Lithium Ion Battery 2400 mAh
    • MC55N0 Mobile Computer
    • Rechargeable Lithium Ion Battery 2400 mAh
  • Certifications & Standards:
    • MIL-STD 810G
    • IP64
    • Electrical Safety:
    • Certified to UL 60950-1
    • Second Edition
    • CAN/CSA-C22.2 No. 60950-1-07
    • IE C 60950-1 Edition 2.0 2005-12
    • EN60950-1:2006 + A11:2009
    • WLAN and Bluetooth (PAN):
    • FCC Part 15.247
    • 15.407
    • EN 300 328
    • EN 301 893
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • EN 50360: 2001 (Max Average 10g SAR 0.472 W/Kg)
    • EN 62311: 2008
    • EN 62209-1:2006
    • EN62209-2:2010
    • EN62479:2010
    • EMI/RFI:
    • FCC Part 15
    • Class B
    • EN55022 Class B
    • EN 55024: 1998 + A1: 2001 + A2: 2003
    • EN 61000-3-2: 2006 (Class B)
    • EN 61000-3-3: 2008
    • EN 50121-3-2: 2006
    • EN 50121-4: 2006
    • EN 301 489-1
    • EN 301 489-17
    • EN 60601-1-2
    • IE C 60601-1-2: 2007 (Modified)
    • Laser Safety:
    • IE C
    • Class 2
    • FDA ll in Accordance with IE C60825-1: (Ed 2.0)
    • EN 60825-1:2007

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Wireless Security:
    • Legacy
    • WPA
    • WPA2
    • WEP (40 or 104 bit)
    • TKIP
    • AES
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS (MD5)
    • TTLS (PAP)
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • PEAP (EAP-GTC)
    • EAP-FAST-TLS
    • EAP-FAST (MS-CHAP v2)
    • EAP-FAST (EAP-GTC)
    • LEAP

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: PXA320

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color

Battery Information

  • Battery Capacity: 2400 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Layout: QWERTY

Full specifications (PDF)
