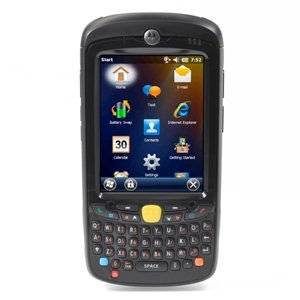

Motorola MC55N0-P20SWRQA9US Mobile Handheld Computer

Motorola MC55N0 - Wi-Fi (802.11a/b/g/n), 1D Laser Scanner, Windows Mobile 6.5, 256MB/1GB, Numeric Keypad, Bluetooth, Extended Battery (3600 mAh), VGA Screen. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD5500-100UES). Four slot charging cradle kit (Part# CRD5501-401CES), requires US AC line cord (Part# 23844-00-00R).

Full specifications (PDF)

The most rugged design yet in this class
When it comes to meeting the needs of your workforce, the rugged Wi-Fi MC55N0 excels with its perfect blend of form and function. The MC55N0 offers organizations the right level of features, the right level of rugged design and support for the most demanding business applications anywhere in your facility indoors and outside. The compact and lightweight mobile computer is easy to carry and easy to use, with a sleek design that is at home in front of customers.

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Contact Discharge
  • Drop Specification: 72" To Concrete
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC55N0
  • Product Name: MC55N0 Handheld Terminal

Physical Characteristics

  • Width: 3"
  • Depth: 1.1"
  • Length: 5.8"
  • Weight (Approximate): 11.11 oz

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Network Band: Quad Band
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Wireless Security:
    • WPA
    • WPA2
    • WEP
    • TKIP
    • AES
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS (MD5)
    • TTLS (PAP)
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • PEAP (EAP-GTC)
    • EAP-FAST (MS-CHAP v2)
    • LEAP


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC55N0 Handheld Terminal
    • Battery
    • MC55N0 Handheld Terminal
    • Battery
  • Certifications & Standards:
    • IP64
    • UL 60950-1
    • MIL-STD 810G
    • FCC Part 15.247, 15.407
    • FCC Part 15, Class B
    • IEC/Class 2/FDA ll in accordance with IEC60825-1


  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color

Battery Information

  • Battery Capacity: 2400 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)


  • Operating System: Windows Mobile 6.5 Classic

Touchscreen Information

  • Touchscreen: Yes


  • Limited Warranty: 1 Year


  • Keyboard Type: Numeric

Full specifications (PDF)

Brand Motorola
Model MC55N0
Network Connectivity 802.11g, Bluetooth, 802.11a, 802.11a/b/g
RAM Memory 256 MB
Scanner Capability 1D
Operating System Windows Mobile 6.5
Style Phone-size
Scanner Type Laser
Data Collection Type Wireless

The Motorola MC55N0-P20SWRQA9US is also known as MOT-MC55N0P20SWRQA9U or MC55N0P20SWRQA9US .
