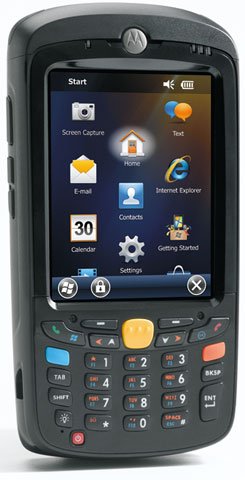

Motorola MC55A0-P60SWQQA9WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

Motorola MC55A0 - Wi-Fi (802.11a/b/g), Bluetooth, 2D DPM Imager, Camera, Windows Mobile 6.5, QWERTY Keyboard, 256MB/1GB Flash, Extended Battery. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD5500-100UES). Four slot charging cradle kit (Part# CRD5501-401CES), requires US AC line cord (Part# 23844-00-00R).
Drive efficiency inside your business to the next level

The Motorola MC55A0 is the perfect blend of form and function. The comprehensive capabilities allow workers to scan barcodes, take pictures, view videos, access business applications, the Internet and email as well as make and receive private and push-to-talk voice calls. The compact and lightweight mobile computer is easy to carry and easy to use, with a sleek yet rugged design. The MC55A0 is built to last, giving workers a device they can count on and businesses a maximum return on investment (ROI). This rugged device family is built for use inside your buildings as well as outdoor areas of your facilities. The MC55A0 delivers outstanding performance, even after exposure to heat, cold, dust, water and 1,000 consecutive tumbles.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Contact Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC55A0
  • Product Name: MC55A0 Handheld Terminal

Physical Characteristics

  • Height: 5.8"
  • Width: 3"
  • Depth: 1.1"
  • Weight (Approximate): 11.11 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC55A0 Handheld Terminal
    • Li-Ion Battery
    • MC55A0 Handheld Terminal
    • Li-Ion Battery
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL/cUL 60950-1, IE C/EN60950-1
    • WLAN and Bluetooth (PAN):
    • USA:FCC Part 15.247, 15.407
    • Canada:RSS-210, RSS 310
    • RF Exposure:
    • USA:FCC Part 2, FCC OET Bulletin 65, Supplement C
    • Canada: RSS-102
    • EMI/RFI:
    • North America: FCC Part 15, Class B
    • Canada: ICES 003 Class B
    • Laser Safety:
    • IE C/Class 2/FDA ll in accordance with IE C60825-1/EN 60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Network Band: Tri Band
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • CCXv4 certified
    • FIPS 140-2 certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 12 Month

Software

  • Operating System: Windows Mobile 6.5 Classic

Keyboard/Keypad

  • Keyboard Layout: QWERTY

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC55A0
Network Connectivity 802.11a/b/g, Bluetooth, 802.11g, 802.11a
RAM Memory 256 MB
IP Rating IP64
Operating System Windows Mobile 6.5
Style Phone-size
Operating Temperature 14 F - 122 F
Processor 806 MHz Marvell PXA320
Display Resolution 320 x 240
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 2D
Drop Rating 6 ft.1.8 m
