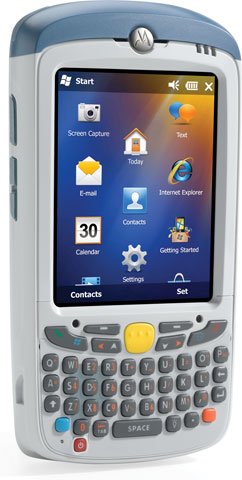

Motorola MC55A0-H80SWRQA9WR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

Motorola MC55A0-HC - Health care, Wi-Fi (802.11a/b/g), Bluetooth, 2D Imager DL, Windows Mobile 6.5, Numeric Keyboard, 256MB/1GB Flash, Extended Battery. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD5500-100UES). Four slot charging cradle kit (Part# CRD5501-401CES), requires US AC line cord (Part# 23844-00-00R).
Take health care quality and patient safety to the next level

Easy to carry and easy to use, the Motorola MC55A0-HC is designed for life inside the hospital, able to endure everyday drops and bumps as well as disinfecting after each patient. And robust wireless application performance and wireless connectivity options allows health care givers to access patient records, accurately administer medication, monitor patient vital signs, place lab and pharmacy orders, view test results and more - all in just seconds anywhere inside the facility. The MC55A0-HC is packed with the latest in technology and offers the most current mobile operating system for the enterprise, as well as the fastest processor and largest memory footprint in this device class.

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Contact Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC55A0-HC
  • Product Name: MC55A0-HC Handheld Terminal

Physical Characteristics

  • Height: 5.8"
  • Width: 3"
  • Depth: 1.1"
  • Weight (Approximate): 11.90 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IP64
    • WiFi certified
    • Electrical Safety:
    • UL/cUL 60950-1
    • IEC/EN60950-1
    • WLAN and Bluetooth:
    • FCC part 15.247, 15.40
    • RSS-210
    • RSS 310
    • RF Exposure:
    • FCC part 2
    • FCC OET bulletin 65 Supplement C
    • RSS-102
    • EMI/RFI:
    • FCC part 15, Class B
    • ICES 003 Class B
    • Laser Safety:
    • IEC/Class 2/FDA ll in accordance with IEC60825-1/EN 60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • CCXv4 certified
    • FIPS 140-2 certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD High Capacity (microSDHC)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5 Classic

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Keyboard Type: Numeric

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC55A0-HC
IP Rating IP64
Network Connectivity 802.11g, 802.11a, Bluetooth, 802.11a/b/g
Operating System Windows Mobile 6.5
RAM Memory 256 MB
Operating Temperature 14 F - 122 F
Style Phone-size
Processor 806 MHz Marvell PXA320
Display Resolution 320 x 240
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 2D
Drop Rating 6 ft.1.8 m
