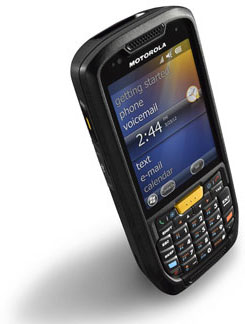

Motorola MC4597-BAPBA0000 Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

Motorola MC45 - Wi-Fi (802.11a/b/g), 3G WAN HSDPA, Bluetooth 2.0, GPS, 1D Laser Scanner, 3.2MP Camera, Standard Battery, Windows Embedded Handheld 6.5, 256MB/1G, Numeric keypad, English (Americas) version. Interface Cables and Cradles Sold Separately. Charging Cradle, Single Slot, Compatible with MC45 (Part# CRDMC45-1000CR), Requires Power supply (Part# PWRS-124306-01R) and USB Cable (Part# 25-128458-01R).
Enterprise Value without Compromise for Field Mobility.

Regardless of whether you are a small or medium-sized business, or in an emerging market, or if your field workforce is repairing equipment, writing sales or picking up and delivering shipments, they all have one thing in common they are your daily touch point with your customers. How fast and how well they perform their jobs directly impacts your revenue, customer satisfaction, customer retention and the cost of your labor pool. The MC45 is the affordable way to give your workers the real-time information they need to get the job done right, right on the spot, preventing lost sales and lost customers. Your workers get the sleek consumer styling and one-handed operation they expect, along with the features, durability, security and manageability your business demands.

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 36" To Concrete @ 14°F (-10°C) to 122°F (50°C)
    • 60" To Concrete
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC45
  • Product Name: MC45 Mobile Computer

Physical Characteristics

  • Width: 2.6"
  • Depth: 1"
  • Length: 5.6"
  • Weight (Approximate): 8.73 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Certifications & Standards:
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65c
    • RSS 102 Issue 4
    • EN 50360
    • EN 62479
    • EN 62311
    • Radiocommunications Standard 2003
    • Electrical Safety:
    • UL 60950-1
    • EN 60950-1
    • IEC 60950-1
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • EMI/RFI:
    • FCC Part 15
    • Class B
    • ICES 003 Class B
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 55022
    • EN 55024
    • EN 61000-3
    • EN 60601-1-2
    • IEC 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • Others:
    • CCXv4
    • FIPS 140-2
    • IP64
    • Mil-StD 810G

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: HSDPA
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • microSD Card
    • microSD High Capacity (microSDHC)

Processor & Chipset

  • Processor Manufacturer: ARM
  • Processor Speed: 600 MHz
  • Processor Type: ARM11

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3.2"
  • Screen Resolution: 240 x 320

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 26

Battery Information

  • Battery Capacity: 3080 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Microsoft Windows Embedded Handheld 6.5

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC45
Operating System Windows Embedded Handheld 6.5
Network Connectivity 802.11g, 802.11a, GPRS, 802.11a/b/g
RAM Memory 256 MB
Style Phone-size
Scanner Type Laser
Data Collection Type Wireless
Scanner Capability 1D
