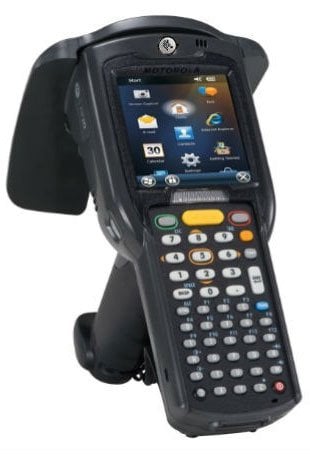

Motorola MC319Z-GL4H24E0W RFID Reader

Motorola MC3190-Z - Wi-Fi (802.11a/b/g), RFID Reader, UHF, Windows Mobile 6.5, 1D Laser Scanner, 256MB/1GB, 48 key Keypad, Bluetooth, 4800 mAh High Capacity Battery. Interface cables and charging cradle sold separately.

Full specifications (PDF)

Motorola's signature rugged design and dual data capture functionality deliver superior value
The Motorola MC3190-Z is a business-class handheld RFID reader designed specifically to extend the benefits of RFID beyond industrial spaces and into customer-facing and business environments. It starts with the signature rugged design and high performance that Motorola industrial handhelds are known for, and adds an advanced, high efficiency Motorola RFID reader engine for faster read rates and higher throughput. Add a groundbreaking new orientation-insensitive antenna tuned for European-centric use cases and the result is a highly versatile device that is at home in customer-facing environments - from retail stores and health care facilities to the office.

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190-Z
  • Product Name: MC3190-Z Handheld Terminal

Physical Characteristics

  • Height: 7.6"
  • Width: 4.7"
  • Depth: 6.4"
  • Weight (Approximate): 1.43 lb

Other

  • Certifications & Standards:
    • CCXv4 Certified
    • FIPS140-2 Certified
    • WiFi Certified
    • IP54
    • MIL-STD 810F
    • EMI/EMC:
    • FCC Part 15 Class B
    • ICES 003 Class B
    • IEC 60601-1-2
    • EN 301 489-1
    • EN 301 489-17
    • EN 301 489-3
    • Electrical Safety:
    • UL 60950-1
    • CSA C22.2 No. 60950-1
    • IEC 60950-1
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • RSS-102
    • WLAN, Bluetooth and RFID:
    • FCC Part 15.247
    • FCC Part 15.407
    • RSS-210
    • Laser Safety:
    • A21CFR1040.10
    • IEC/EN 60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAPTLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • Support for IPv6

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB

Battery Information

  • Battery Capacity: 4400 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 48

RFID

  • Maximum Operating Frequency: 928 MHz
  • Minimum Operating Frequency: 902 MHz

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Embedded Handheld 6.5.3
Protect Your Product
Motorola Service Contract - 2 year (Z1RS-MC319R-2C03)
2 Year Zebra OneCare Select Renewal. Includes Comp Coverage. Does not cover cradles. (Requires customer-supplied spares pool in NA, not available for LA.) For MC319Z configs only. Can only be ordered ONCE
$405.00
Why don't we show the price?

Motorola Service Contract - 2 year (Z1RE-MC319R-2C00)
2 Year Zebra OneCare Essential Renewal. Includes Comprehensive coverage. Does not include coverage for cradles. For MC319Z configs only. Can only be ordered ONCE after initial Zebra OneCare contract expires
$323.00
Why don't we show the price?

Motorola Service Contract - 3 year (Z1BS-MC319R-3003)
3 Year Zebra OneCare Service Center Select. Does not include Comprehensive coverage. Does not include coverage for cradles. (Requires customer-supplied spares pool in NA, not available for LA.) For MC319Z configs only
$645.00
Why don't we show the price?

Motorola Service Contract - 1 year (Z1BS-MC319R-1003)
1 Year Zebra OneCare Service Center Select. Does not include Comprehensive coverage. Does not include coverage for cradles. (Requires customer-supplied spares pool in NA, not available for LA.) For MC319Z configs only
$253.00
Why don't we show the price?

Motorola Service Contract - 3 year (Z1BE-MC319R-3000)
3 Year Zebra OneCare Service Center Essential. Does not include Comprehensive coverage. Does not include coverage for cradles. For MC319Z configs onl
$511.00
Why don't we show the price?

Full specifications (PDF)

Brand Motorola
Model MC3190-Z
Scanner Type Laser
Keypad Alphanumeric
Frequency UHF
RAM Memory 256 MB
Style Handheld
Operating System Windows Mobile 6.5
