Motorola MC319Z-GI4H24E0W RFID Reader


0.0

(No reviews)

Be the first to

Write a Review
Motorola MC3190-Z - Wi-Fi (802.11a/b/g), RFID Reader, UHF, Windows Mobile 6.5, 2D Imager Scanner, 256MB/1GB, 48 key Keypad, Bluetooth, 4800 mAh High Capacity Battery. Interface cables and charging cradle sold separately.
$2,945.90
In Stock:
Ships Same Day
Protect Your Product
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Motorola's signature rugged design and dual data capture functionality deliver superior value

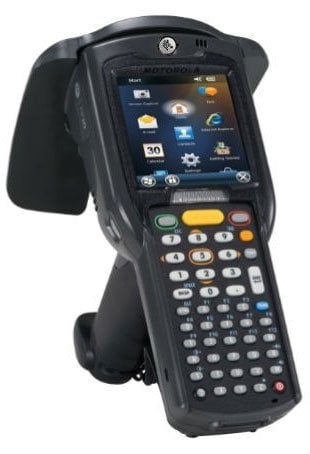

The Motorola MC3190-Z is a business-class handheld RFID reader designed specifically to extend the benefits of RFID beyond industrial spaces and into customer-facing and business environments. It starts with the signature rugged design and high performance that Motorola industrial handhelds are known for, and adds an advanced, high efficiency Motorola RFID reader engine for faster read rates and higher throughput. Add a groundbreaking new orientation-insensitive antenna tuned for European-centric use cases and the result is a highly versatile device that is at home in customer-facing environments - from retail stores and health care facilities to the office.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)
  • Barcode Symbology Supported: 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190-Z
  • Product Name: MC3190-Z Handheld Terminal

Physical Characteristics

  • Height: 7.6"
  • Width: 4.7"
  • Depth: 6.4"
  • Weight (Approximate): 1.43 lb

Other

  • Package Contents:
    • MC3190-Z Handheld Terminal
    • Li-Ion Battery
    • MC3190-Z Handheld Terminal
    • Li-Ion Battery
  • Certifications & Standards:
    • CCXv4 Certified
    • FIPS140-2 Certified
    • WiFi Certified
    • IP54
    • MIL-STD 810F
    • EMI/EMC:
    • FCC Part 15 Class B
    • ICES 003 Class B
    • IEC 60601-1-2
    • EN 301 489-1
    • EN 301 489-17
    • EN 301 489-3
    • Electrical Safety:
    • UL 60950-1
    • CSA C22.2 No. 60950-1
    • IEC 60950-1
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • RSS-102
    • WLAN, Bluetooth and RFID:
    • FCC Part 15.247
    • FCC Part 15.407
    • RSS-210
    • Laser Safety:
    • A21CFR1040.10
    • IEC/EN 60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAPTLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • Support for IPv6

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 4400 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

RFID

  • Maximum Operating Frequency: 928 MHz
  • Minimum Operating Frequency: 902 MHz

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 48

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.5

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC3190-Z
Frequency UHF
Scanner Type Imager
Style Handheld
RAM Memory 256 MB
Keypad Alphanumeric
Operating System Windows Mobile 6.5
