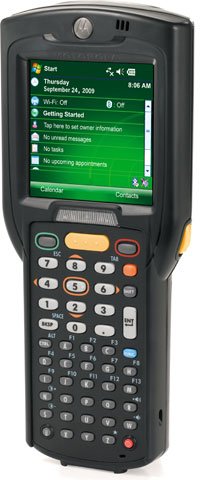

Motorola MC3190-SL3H24E0A Mobile Handheld Computer
Motorola MC3190-SL3H24E0A Mobile Handheld Computer
Motorola MC3190-S -
Brick Straight Shooter, 1D Laser Scanner, 38 key Alpha Shift Keypad, High Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-SL3H24E0A-KIT).
Full specifications (PDF)Purpose-built for demanding environments within the enterprise walls
The rugged wireless Motorola MC3190 is at home in the retail store and warehouse aisles, on the loading dock and out in the yard. Leveraging Motorola's new mobility platform, the MC3190 offers advanced computing power, industry-leading data capture capabilities and superior ergonomics. In addition to the processing power and memory required to support advanced applications, the MC3190 also offers the latest in mobile technology and security. An integrated RFID tag automates asset tracking, allowing enterprises to track and locate MC3190 devices right out the box. An integrated accelerometer enables leading edge motion-based applications that improve power management and more. Robust security features protect sensitive data. Compatibility with the existing MC3000 accessories ecosystem enables organizations to upgrade to the latest in technology, while preserving the existing accessory investment. The result is a robust affordable device that will help retailers, government agencies and distribution centers streamline and error-proof business processes, improving employee productivity as well as customer service and satisfaction.
Technical Information
- Connectivity Technology: Wireless
- Light Source: Laser
- Electrostatic Discharge (ESD):
- +/-8 kV DC Indirect Discharge
- +/-8 kV DC Direct Discharge
- +/-15 kV DC Air Discharge
- Drop Specification:
- 60" To Concrete73.4°F (23°C)
- 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC3100
- Product Name: MC3190 Handheld Terminal
Physical Characteristics
- Height: 7.5"
- Width: 3.3"
- Depth: 1.8"
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- WPA2 (Personal or Enterprise)
- 802.1x
- EAP-TLS
- TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
- LEAP
- Support for IPv6
- PEAP (TLS, MSCHAPv2, EAP-GTC)
- EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
- CCXv4 certified
- FIPS140-2 Certified
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
- Memory Card Slot: Yes
- Memory Card Supported:
- Secure Digital (SD) Card
- MultiMediaCard (MMC)
Display & Graphics
- Display Screen Type: LCD
- Screen Size: 3"
- Display Color: Color
- Screen Resolution: 320 x 320
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 624 MHz
- Processor Type: XScale
Battery Information
- Battery Capacity: 4800 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Software
- Operating System: Windows Mobile 6.5 Classic
Touchscreen Information
- Touchscreen: Yes
Keyboard/Keypad
- Keyboard Type: Alpha
| Brand | Motorola |
| Model | MC3190 |
| Drop Rating | 4 ft.1.2 m |
| Network Connectivity | 802.11g, Bluetooth, 802.11a, 802.11a/b/g |
| IP Rating | IP54 |
| RAM Memory | 256 MB |
| Display Resolution | 320 x 320 |
| Scanner Capability | 1D |
| Operating Temperature | -4 F - 122 F |
| Processor | 624 MHz Marvell PXA320 |
| Operating System | Windows Mobile 6.5 |
| Style | Full-size |
| Scanner Type | Laser |
| Data Collection Type | Wireless |
Loading...
The Motorola MC3190-SL3H24E0A is also known as MC3190-SL3H24E0A or MC3190SL3H24E0A .
