Motorola MC3190-SI4S04E0A Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

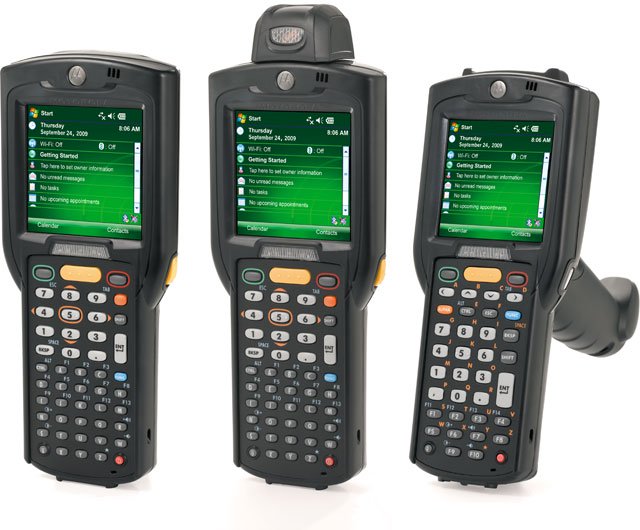

Motorola MC3190-S - Brick Straight Shooter, 2D Imager, 48 key Alphanumeric Keypad, Standard Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cable and charging cradle not included.
Purpose-built for demanding environments within the enterprise walls

The rugged wireless Motorola MC3190 is at home in the retail store and warehouse aisles, on the loading dock and out in the yard. Leveraging Motorola's new mobility platform, the MC3190 offers advanced computing power, industry-leading data capture capabilities and superior ergonomics. In addition to the processing power and memory required to support advanced applications, the MC3190 also offers the latest in mobile technology and security. An integrated RFID tag automates asset tracking, allowing enterprises to track and locate MC3190 devices right out the box. An integrated accelerometer enables leading edge motion-based applications that improve power management and more. Robust security features protect sensitive data. Compatibility with the existing MC3000 accessories ecosystem enables organizations to upgrade to the latest in technology, while preserving the existing accessory investment. The result is a robust affordable device that will help retailers, government agencies and distribution centers streamline and error-proof business processes, improving employee productivity as well as customer service and satisfaction.

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190
  • Product Name: MC3190 Handheld Terminal

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete

Physical Characteristics

  • Height: 7.5"
  • Width: 3.3"
  • Depth: 1.8"
  • Weight (Approximate): 14.96 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC3190 Handheld Terminal
    • High Capacity Battery
    • Stylus
    • Strap
    • MC3190 Handheld Terminal
    • High Capacity Battery
    • Stylus
    • Strap
  • Certifications & Standards:
    • IP54
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2No. 60950-1
    • EN60950-1/IEC 60950-1
    • WLAN and Bluetooth:
    • USA:
    • FCC Part 15.247
    • 15.407
    • Canada:
    • RSS-210
    • EU:
    • EN 300 328
    • EN 301 893
    • Japan:
    • ARIB STD-T33
    • T66
    • T70
    • T71
    • Australia:
    • AS/NZS 4268s
    • EMI/RFI Radio Versions:
    • USA:
    • FCC Part 15
    • Canada:
    • RSS210 Class B
    • EU:
    • EN 301 489-1
    • 489-17

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • CCXv4 Certified
    • Support for IPv6
    • FIPS140-2 Certified

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Display & Graphics

  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 48

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows CE 6.0

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC3190
Network Connectivity 802.11 b/g, 802.11g, 802.11a, Bluetooth, 802.11a/b/g
Display Resolution 752 x 480
Operating System Windows CE 6.0
Operating Temperature -4 F - 122 F
Style Gun
RAM Memory 256 MB
Keypad 48
Processor 624 MHz Marvell PXA320
IP Rating IP54
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 2D
Drop Rating 4 ft.1.2 m
