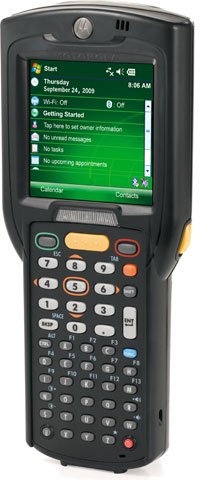

Motorola MC3190-SI2H04E0A Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

Save more when you buy multiple units
Buy 5-9 units and save 10%, 10-14 units save 15%,
for 15+ units contact us for extra savings

US orders only
Add to cart to set purchase quantity and see savings.

Motorola MC3190-S - Brick Straight Shooter, 2D Imager, 28 key Numeric Keypad, High Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-SI2H04E0A-KIT).
Purpose-built for demanding environments within the enterprise walls

The rugged wireless Motorola MC3190 is at home in the retail store and warehouse aisles, on the loading dock and out in the yard. Leveraging Motorola's new mobility platform, the MC3190 offers advanced computing power, industry-leading data capture capabilities and superior ergonomics. In addition to the processing power and memory required to support advanced applications, the MC3190 also offers the latest in mobile technology and security. An integrated RFID tag automates asset tracking, allowing enterprises to track and locate MC3190 devices right out the box. An integrated accelerometer enables leading edge motion-based applications that improve power management and more. Robust security features protect sensitive data. Compatibility with the existing MC3000 accessories ecosystem enables organizations to upgrade to the latest in technology, while preserving the existing accessory investment. The result is a robust affordable device that will help retailers, government agencies and distribution centers streamline and error-proof business processes, improving employee productivity as well as customer service and satisfaction.

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Direct Discharge
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
    • 60" To Concrete73.4°F (23°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3100
  • Product Name: MC3190 Handheld Terminal

Physical Characteristics

  • Height: 7.5"
  • Width: 3.3"
  • Depth: 1.8"
  • Weight (Approximate): 14.95 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC3190 Handheld Terminal
    • Battery
    • MC3190 Handheld Terminal
    • Battery
  • Certifications & Standards:
    • EMI/RFI:
    • Batch
    • USA:FCC Part 15
    • Canada: ICES 003 Class B
    • EU: EN55022 Class B EN55024
    • Japan: CISPR 22
    • Japan:Class B
    • Australia: AS3548
    • Radio:
    • USA: FCC Part 15
    • Canada: RSS210 Class B
    • EU: EN 301 489-1
    • EU: EN 301 489-17
    • Electrical Safety:
    • CSA C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
    • Certified to UL / cUL 60950-1
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class2/FDA Class II
    • RF Exposure:
    • USA: FCC Part 2
    • USA:FCC OET Bulletin 65 Supplement C
    • Canada: RSS-102
    • EU: EN 62311
    • Australia: Radiocommunications Standard 2003
    • WLAN:
    • Tri-mode IEEE 802.11a/b/g
    • CCXv4 certified
    • Support for IPv6
    • FIPS140-2 Certified
    • WPAN:
    • (Bluetooth Support) Class II
    • v2.1 with Enhanced Data Rate (EDR)
    • Integrated antenna

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • PEAP
    • TTLS
    • LEAP
    • EAP-FAST

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 28

Software

  • Operating System: Windows CE 6.0 Professional

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model MC3190
IP Rating IP54
Network Connectivity 802.11a/b/g, 802.11g, 802.11a, Bluetooth
Operating Temperature -4 F - 122 F
Style Full-size
Processor 624 MHz Marvell PXA320
Operating System Windows CE 6.0
Display Resolution 320 x 320
Scanner Type Imager
Data Collection Type Wireless
Scanner Capability 2D
Drop Rating 4 ft.1.2 m
