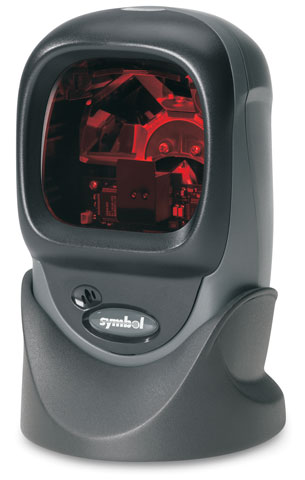

Motorola LS9203-SR10007NSWW Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Motorola LS 9203 - Includes stand and quick reference guide. Color: Twilight Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
Excellent Performance with a Smaller Footprint

Easy to use, deploy and maintain, the Motorola LS9203 omnidirectional scanner is an excellent choice, allowing seamless integration of high-tech data capture into any point of sale environment, all at a very affordable price. A 20-line scan pattern makes it easy for employees to scan items without having to twist and turn them to align a scan line. RS-232/serial, Keyboard wedge and USB connections make it easy to integrate the LS9203 into any current point of sale application. The small footprint allows placement anywhere, plus a durable construction makes the Motorola LS9203 an excellent choice for any point of sale environment. See the LS 9208 Scanner for single line/omnidirectional scanning and EAS support.

Technical Information

  • Scan Pattern: Omni-directional
  • Scan Rate: 1500 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN/JAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Trioptic Code 39
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Chinese 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • MSI
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
    • UPC/EAN/JAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Trioptic Code 39
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Chinese 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • MSI
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1" - 2.50"@5 mil
    • 0 mil - 6"@7.80 mil
    • 0 mil - 7.50"@10.40 mil
    • 0 mil - 8.50"@13 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS9203
  • Product Name: Symbol LS 9203 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 5.5"
  • Width: 3.5"
  • Depth: 3"
  • Color: Black
  • Weight (Approximate): 9.90 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • Symbol LS 9203 Barcode Reader
    • Quick Setup Guide
    • Stand
    • Symbol LS 9203 Barcode Reader
    • Quick Setup Guide
    • Stand
  • Certifications & Standards:
    • Electrical safety:
    • UL 1950
    • CSA C22.2 No. 950
    • Laser safety:
    • CDRH Class IIa
    • IEC 60825 Class 1
    • Class IIa
    • EMC:
    • CISPR B
    • FCC B
    • EN60825
  • Additional Information:
    • Supported Interfaces:
    • USB
    • Wand Emulation
    • Serial
    • Keyboard Wedge

Warranty

  • Limited Warranty: 2 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Motorola LS9203 Scanner
Motorola Cable (CBA-U01-S07ZAR)
USB Cable, 7 ft. (2m) Straight, Series A Connector.
In Stock: Ships Same Day


5.0

(1 reviews)

$25.40
+ Add to Quote
Motorola Cable (CBA-R01-S07PAR)
RS-232 Cable (7 ft. Straight, Standard DB-9F TxD-2). Requires Power supply (Part# PWRS-14000-253R).
In Stock: Ships Same Day
$24.20
+ Add to Quote

The Motorola LS9203-SR10007NSWW is also known as SYM-LS9203SR10007NSW or LS9203SR10007NSWW .
