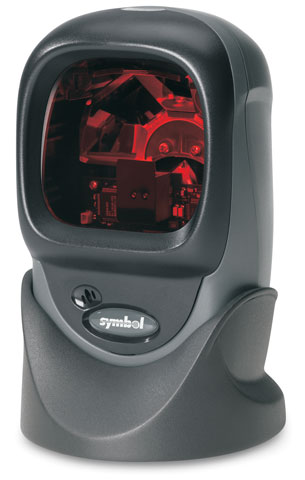

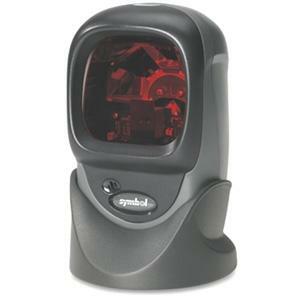

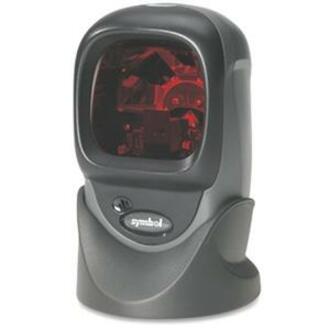

Motorola LS9203-7NNR0100DR Barcode Scanner

Zebra DS9208-SR4NNR01A Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra DS9208-SR4NNR01A Barcode Scanner.
Motorola LS 9203 - RS232 kit: Scanner, stand, 110V US Power Supply, 6 ft RS232 cable and product CD. Color: Twilight Black. RoHS Compliant.
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Scan barcodes with a staggering speed of 1500 scan/s
Read More
Discontinued See Replacement
Add to Quote
Motorola LS9203 Barcode Scanner Model Overview
Easy to use, deploy and maintain, the Motorola LS9203 omnidirectional scanner is an excellent choice, allowing seamless integration of high-tech data capture into any point of sale environment, all at a very affordable price. A 20-line scan pattern makes it easy for employees to scan items without having to twist and turn them to align a scan line. RS232/serial, keyboard wedge and USB connections make it easy to integrate the LS9203 into any current point of sale application. The small footprint allows placement anywhere, plus a durable construction makes the Motorola LS9203 an excellent choice for any point of sale environment. See the LS 9208 Scanner for single line/omnidirectional scanning and EAS support.
Motorola LS9203-7NNR0100DR Barcode Scanner Overview

The LS9203 Bar Code Reader helps you lower costs by eliminating the errors inherent with manual, paper-based sales and inventory tracking. You increase profitability by reducing pricing mistakes, minimizing shrinkage and providing better visibility into fundamental business processes. The LS9203 is both a handheld and a presentation Bar Code Scanner, your employees are able to quickly switch between hands-free and handheld mode to scan bar codes easily, maximizing their productivity.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • Code 128
  • ISBT 128
  • Code 39
  • Trioptic Code 39
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Chinese 2 of 5
  • Code 93
  • Code 11
  • Codabar
  • MSI
  • RSS-14
  • RSS-Limited
  • RSS-Expanded
Light Source:
Laser
Scan Rate:
1500 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 2.5"@5mil
  • 0" - 6"@7.8mil
  • 0" - 7.5"@10.4mil
  • 0" - 8.5"@13mil
Scan Pattern:
Omni-directional
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Power Supply Included:
Yes
Physical Characteristics
Color:
Black
Height:
5.5"
Width:
3.5"
Depth:
3"
Weight (Approximate):
9.90 oz
Miscellaneous
Package Contents:
  • Symbol LS9203 Bar Code Reader
  • Stand
  • Product CD
  • 110 VAC Power Supply
  • RS-232 (7ft. Straight) Cable
Additional Information:

Supported Interfaces:

  • USB
  • Wand Emulation
  • Serial
  • Keyboard Wedge

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Electrical safety:

  • UL 1950
  • CSA C22.2 No. 950

Laser safety:

  • CDRH Class IIa
  • IEC 60825 Class 1
  • Class IIa

EMC:

  • CISPR B
  • FCC B
  • EN60825
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola LS9203-7NNR0100DR Barcode Scanner is also known as SYM-LS92037NNR0100DR or LS92037NNR0100DR.
