Barcodes,Inc.

Motorola LS1203-1AZK0100SR Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review

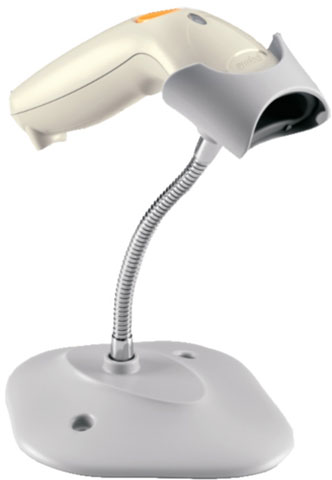

Motorola LS1203 - PS/2 kit, 1D Laser. Includes PS/2 cable and stand. Color: White.
Comfortably designed for continuous, all day every day use

The Motorola LS1203 handheld scanner delivers high quality laser scanning, user-friendly ergonomics and durability at an affordable price. Designed to meet the needs of small businesses, the LS1203 provides the performance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists and other small local retailers. Easy and comfortable to use, the Motorola LS1203 offers high reliability and investment protection. The Motorola LS1203 offers a range of interface options: USB, Keyboard wedge and RS-232 kits include cables and (when applicable) power supplies.

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Bi-directional
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • IATA
    • RSS Variants
    • Chinese 2 of 5
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • IATA
    • RSS Variants
    • Chinese 2 of 5
  • Depth of Field:
    • 0.25" - 5"@5 mil - Code 39
    • 0 mil - 7.75"@7.50 mil - Code 39
    • 0 mil - 8.50"@10 mil - Code 39
    • 0 mil - 8.50"@13 mil - 100% UPC
    • 0 mil - 10.25"@26 mil - 200% UPC

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS1203
  • Product Name: Symbol LS1203 Handheld BarCode Scanner
  • Product Line: Symbol

Physical Characteristics

  • Height: 2.4"
  • Width: 2.4"
  • Depth: 7.1"
  • Color: White
  • Weight (Approximate): 4.30 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS1203 Barcode Reader
    • Keyboard Wedge Cable
    • Stand
    • Software CD
    • Symbol LS1203 Barcode Reader
    • Keyboard Wedge Cable
    • Stand
    • Software CD
  • Certifications & Standards:
    • Electrical Safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC Class 1
    • RoHS Compliance
  • Additional Information:
    • Supported Interfaces:
    • SerialUSBKeyboard Wedge

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model LS1203
Scanner Capability 1D
Scanner Type Laser
