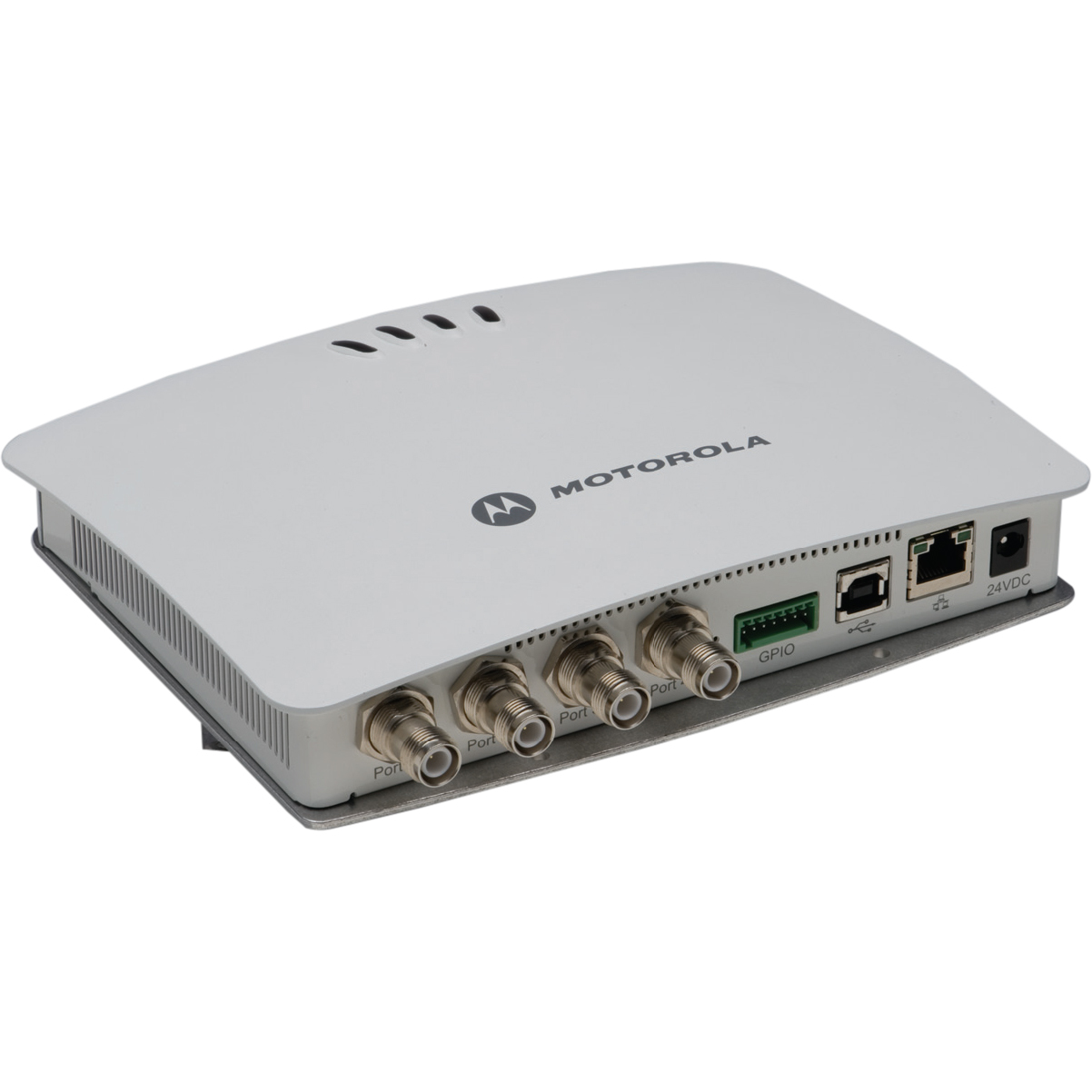

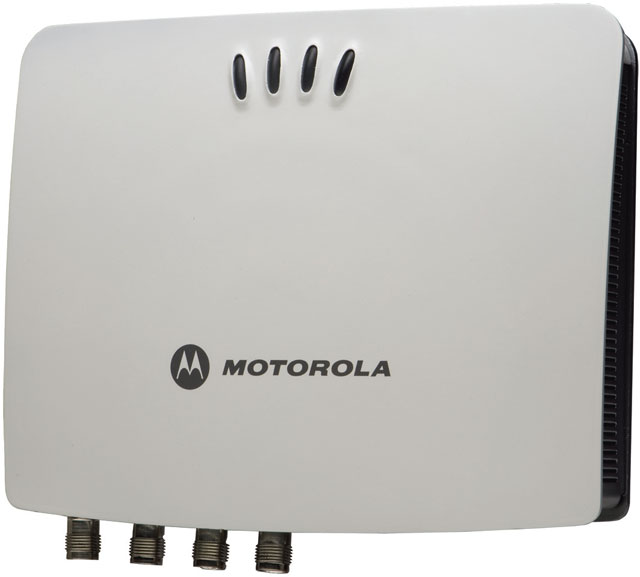

Motorola KT-FX74004US-02 RFID Reader

The Motorola KT-FX74004US-02 RFID Reader has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola FX7400 - FX7400 Bundled Fixed RFID Reader Kit. Includes, FX7400 Fixed Reader (Motorola FX7400, 4-port RFID reader, Gen 2, Power over Ethernet, fixed US frequency band, Windows CE 5.0), One (1) Left-Hand Circular Polarization Antenna, One (1) Antenna Cable, One (1) Antenna Mounting Bracket, Power Supply, A/C line cord.
Discontinued Need Assistance?
Add to Quote
Motorola FX7400 RFID Reader Model Overview
Easy to deploy, use, and manage, Motorola's high performance FX7400 series of fixed RFID readers is ideally suited for global enterprise deployments in space-constrained, customer-facing environments. It boasts a compact design married with a set of highly integrated, enterprise features including: auto-discovery and application-specific set-up for ease of installation; power over Ethernet (POE) to eliminate the need for costly power drops; and advanced features for secure data transmission. This unique combination makes the FX7400 series of RFID readers particularly well-suited for retail inventory and enterprise asset management applications in any environment where performance and a small footprint are important.
Motorola KT-FX74004US-02 RFID Reader Overview

Easy to deploy, use, and manage, Motorola's high performance FX7400 series of fixed RFID readers is ideally suited for global enterprise deployments in space-constrained, customer-facing environments. It boasts a compact design married with a set of highly integrated, enterprise features including: auto-discovery and application-specific set-up for ease of installation; power over Ethernet (POE) to eliminate the need for costly power drops; and advanced features for secure data transmission. This unique combination makes the FX7400 series of RFID readers particularly well-suited for retail inventory and enterprise asset management applications in any environment where performance and a small footprint are important.

Technical Information
Minimum Frequency:
902 MHz
Maximum Frequency:
928 MHz
Physical Characteristics
Material:
  • Cast Aluminum
  • Metal
  • Plastic
Height:
7.7"
Width:
5.9"
Depth:
1.7"
Weight (Approximate):
1.80 lb
Miscellaneous
Package Contents:
  • FX7400 RFID Reader
  • Mounting Brackit
Additional Information:
  • Humidity: 5-85% non-condensing
  • Operating Temperature: -4° to +131° F/-20° to +55° C
  • Frequency: 902 MHz to 928 MHz, 865 MHz to 868 MHz
  • Power Output: +15dBm to +30dBm
  • Power Supply: +24Vdc or POE (IEEE 802.3af)
  • Firmware Upgrade: Web-based and remote firmware upgrade capabilities
  • IP Addressing: Static and Dynamic
  • Memory: Flash 64 MB; DraM 64 MB
  • Operating System: Microsoft Windows CE 5.0
  • Communications: 10/100 BaseT Ethernet (rJ45) w/ PoE support; USB Client (USB type B)
  • General Purpose I/o: 2 inputs, 2 outputs, optically isolated
  • Antenna Ports: 4 mono-static ports (reverse Polarity tNC)
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211710
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola KT-FX74004US-02 RFID Reader is also known as SYM-KTFX74004US02 or KT-FX74004US-02.
