Motorola HK1875A Access Point

The Motorola HK1875A Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP7181 - AP7181 2.4/5.X Ghz AC Radio. Includes Power Supply (Part# 30009307001).
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • Ensure speedy data transfer of up to 300 Mbit/s with the IEEE 802.11n wireless technology
  • Link your Wi-Fi traffic to your wired network with Fast Ethernet port
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

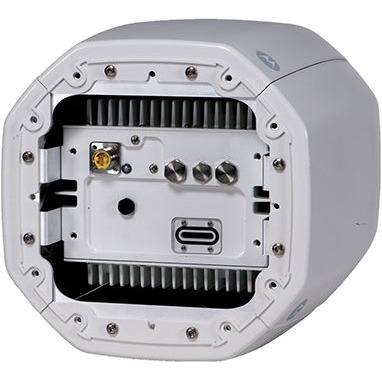

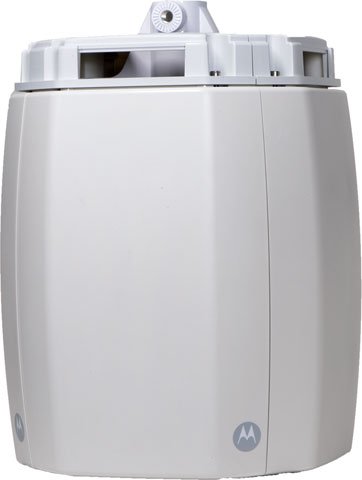

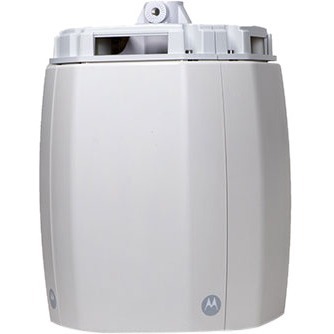

Motorola AP7181 Access Point Model Overview
The Motorola AP7181 is a high performance, multi-radio 802.11n access point featuring superb network capacity, a maximum data rate of 300 Mbps and Motorola's unique intelligent ADEPT (ADvanced Element Panel Technology) antenna system. With the exclusive, ADEPT (ADvanced Element Panel Technology) antenna system, the AP7181 achieves maximum data rates of up to 300 Mbps by delivering a reliable dual data stream in an outdoor environment. Leveraging multiple transmit and receive RF chains and dual polarized antennas, the AP7181 achieves superior mesh throughput throughout a coverage area. The Motorola AP7181 is the result of years of customer research and development and is designed specifically to meet the outdoor network needs of municipal agencies, transit systems, and enterprises.
Motorola HK1875A Access Point Overview
The AP 7181 is a high performance, multi-radio 802.11n access point featuring superb network capacity, a maximum data rate of 300 Mbps and Motorola's unique intelligent ADEPT (ADvanced Element Panel Technology) antenna system. With the exclusive, ADEPT (ADvanced Element Panel Technology) antenna system, the AP 7181 achieves maximum data rates of up to 300 Mbps by delivering a reliable dual data stream in an outdoor environment. Leveraging multiple transmit and receive RF chains and dual polarized antennas, the AP 7181 achieves superior mesh throughput throughout a coverage area.
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.46 GHz
UNII Minimum Frequency:
5.47 GHz
UNII Maximum Frequency:
5.86 GHz
Antenna Type:
Dual Polarized Antenna
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • WPA
  • WPA2-PSK
  • WEP
  • IEEE 802.11i
  • IEEE 802.1X
  • EAP-TLS
  • EAP-TTLS
  • AES- CCM
  • TKIP
  • AES
  • MAC Address Authentication
Features:
  • Quality of Service (QoS)
  • MIMO Technology
  • Corrosion Resistant
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
Network (RJ-11):
No
PoE (RJ-45) Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
Yes
Management & Protocols
Management:
Web Base Management
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Form Factor:
  • Pole-mountable
  • Wall Mountable
  • Parapet Mount
Height:
15.4"
Diameter:
14"
Weight (Approximate):
39 lb
Miscellaneous
Certifications & Standards:
Approvals:
  • FCC CFR 47 Part 15 Class B Subpart C
  • RSS 210
  • UL 60950-1 -22
  • CE
  • EN 301 489-17
  • EN 300 328
  • EN 302 502 v1.2.1
  • EN 301 893 v1.5.1
  • DFSCB
  • IEC 60950-1 -22
  • EPP
  • CMM
IEEE Standards
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11i
  • 802.1X
  • 802.3af
  • 802.11e
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola HK1875A Access Point is also known as MOT-HK1875A or HK1875A.
