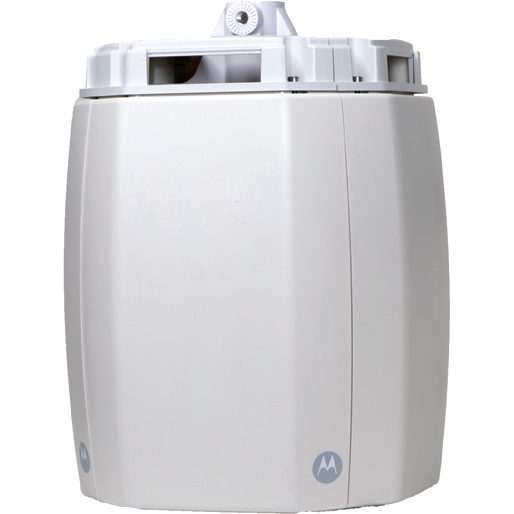

Motorola HK1860A Access Point

The Motorola HK1860A Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Motorola AP7181 - Wireless Access Point/Bridge

This wireless access point uses IEEE 802.11n technology with steadfast speed of up to 300 Mbit/s for optimal wireless signals
Link your Wi-Fi traffic to your wired network with Fast Ethernet port
With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
Its management capability provides efficient control over setup and configuration of your network

Need a different version? See all Motorola AP7181 Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

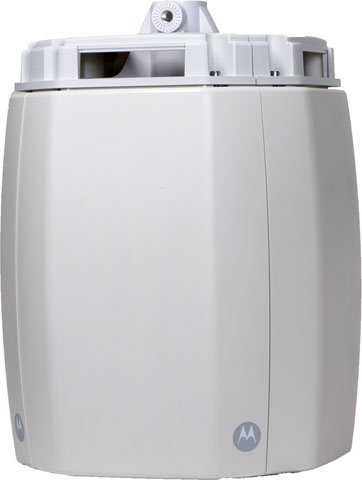

Motorola AP7181 Access Point Model Overview

The Motorola AP7181 is a high performance, multi-radio 802.11n access point featuring superb network capacity, a maximum data rate of 300 Mbps and Motorola's unique intelligent ADEPT (ADvanced Element Panel Technology) antenna system. With the exclusive, ADEPT (ADvanced Element Panel Technology) antenna system, the AP7181 achieves maximum data rates of up to 300 Mbps by delivering a reliable dual data stream in an outdoor environment. Leveraging multiple transmit and receive RF chains and dual polarized antennas, the AP7181 achieves superior mesh throughput throughout a coverage area. The Motorola AP7181 is the result of years of customer research and development and is designed specifically to meet the outdoor network needs of municipal agencies, transit systems, and enterprises.

Motorola HK1860A Access Point Overview

The Motorola Mesh Wide Area Network (MWAN) portfolio includes the AP 7181, an outdoor high performance, multi-radio 802.11n mesh access point that delivers exceptional network capacity and performance. By embracing the 802.11n standard and optimizing radio hardware and software components, maximum throughputs and connections for mesh networking are realized. The AP 7181 delivers fast, stable connections and allows 802.11n capabilities to be extended outdoors. The AP 7181 is the result of years of customer research and development and is designed specifically to meet the outdoor network needs of enterprises, municipal agencies, and transit systems.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.40 GHz

ISM Maximum Frequency:

2.46 GHz

UNII Minimum Frequency:

5.73 GHz

UNII Maximum Frequency:

5.85 GHz

Antenna Type:

Panel Antenna

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

WEP
WPA
WPA2-PSK
TKIP
RADIUS
AES-CCM
IEEE 802.1x
EAP-TLS
EAP-TTLS
Secure Mesh with AES
MAC Address Authentication

Features:

MIMO Technology
Quality of Service (QoS)

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet
Gigabit Ethernet

Number of Network (RJ-45) Ports:

PoE (RJ-45) Port:

Yes

Management Port:

Yes

Management & Protocols

Management:

Web based GUI

Power Description

Input Voltage:

48 V DC

Physical Characteristics

Form Factor:

Ceiling Mountable
Pole-mountable

Height:

15.4"

Diameter:

14"

Weight (Approximate):

39 lb

Miscellaneous

Certifications & Standards:

IEEE Standards:

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11i
IEEE 802.11e
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af

Approvals:

CE
EPP
CMM
FCC CFR 47 Part 15, Class B Subpart C
Industry Canada RSS 210
UL 60950-1, -22
EN 301 489-17
EN 300 328
EN 302 502 v1.2.1
EN 301 893 v1.5.1 DFS
CB - IEC 60950-1, -22

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Item Numbers

UNSPSC: 43222631
