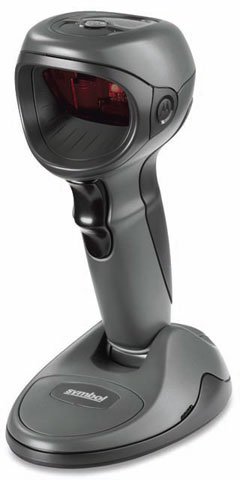

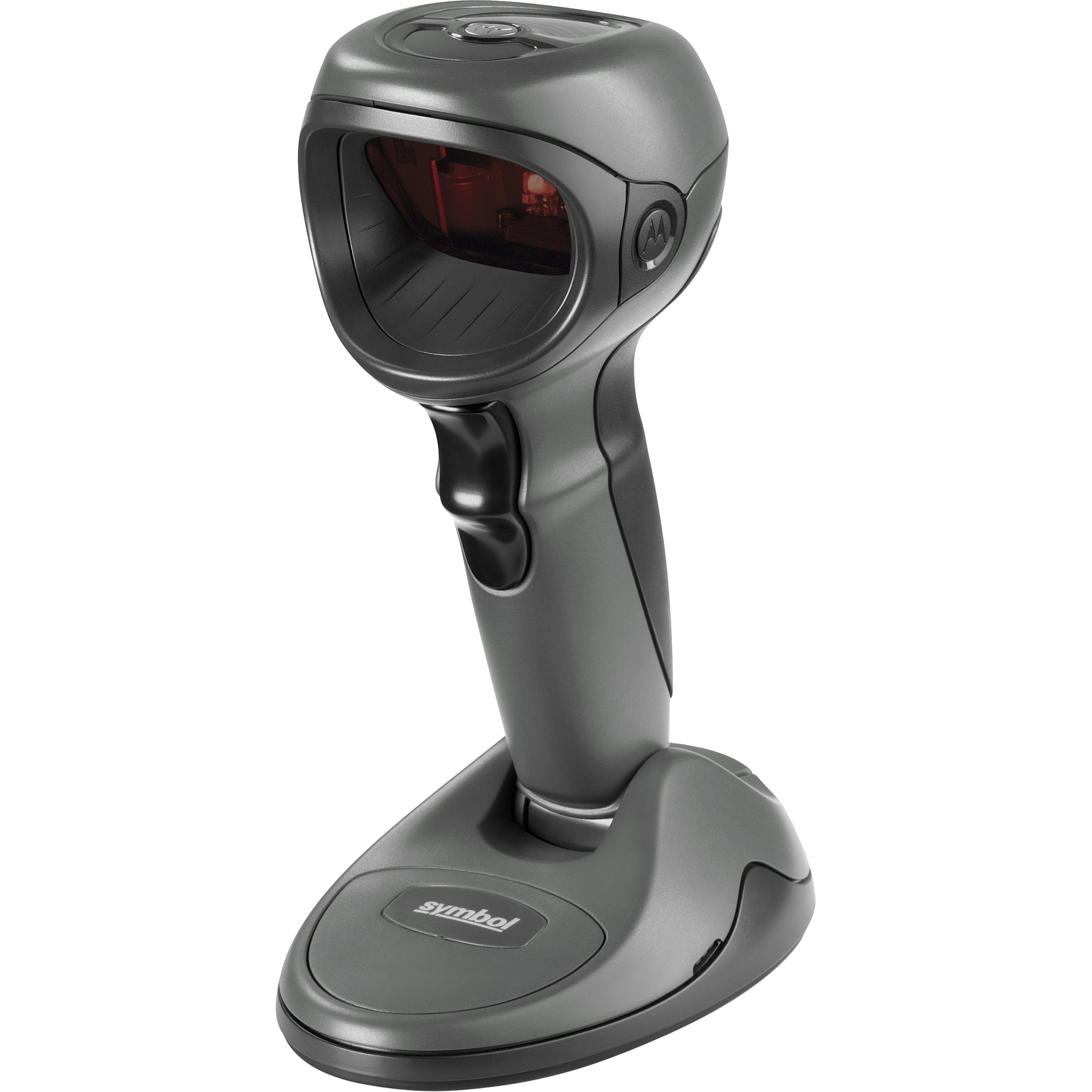

Motorola DS9808-SR7NNU03ZR Barcode Scanner
Motorola Symbol DS9808 -
IBM USB Kit, 2D Imager, Standard Focus. Includes Power+ IBM USB cable. Not a standard USB configuraion.
Reduce costs and increase sales with the applications of today - and tomorrow
Designed to deliver a new level of versatility, functionality and performance, the Motorola DS9808 features a one-of-a-kind hybrid form factor that provides superior comfort and ease of use in both handheld and hands-free scanning modes. Inside, the DS9808 offers the latest scanning technology, delivering record swipe speeds for 1D and 2D barcodes, as well as the ability to capture images and signatures. Available in standard and long range models, the hands-free decode range on both can be adjusted to meet your needs, for example, to match EAS deactivation range or prevent inadvertent scanning of items nearby.
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern: Omni-directional
- Connectivity Technology: Cable
- Scanning Distance: 10.50"
- Light Source: Laser
- Image Sensor: Imager
- Barcode Symbology Supported:
- 1D:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13) plus supplementals
- ISBN (Bookland)
- ISSN
- Coupon Code
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417:
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal:
- U.S. Postnet and Planet
- U.K. Post
- Japan Post
- Australian Post
- Netherlands KIX Code
- Royal Mail 4 State Customer
- UPU FICS 4 State Postal USPS 4CB
- 1D:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13) plus supplementals
- ISBN (Bookland)
- ISSN
- Coupon Code
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417:
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal:
- U.S. Postnet and Planet
- U.K. Post
- Japan Post
- Australian Post
- Netherlands KIX Code
- Royal Mail 4 State Customer
- UPU FICS 4 State Postal USPS 4CB
- Maximum Scan Resolution: 7.80 mil
- Depth of Field:
- 0 mil - 4.50"@5 mil - Code 39
- 0 mil - 8.50"@10 mil - UPC/EAN
- 0 mil - 10.50"@13 mil - UPC/EAN
- 0 mil - 5"@6.60 mil - PDF417
- 0 mil - 6"@10 mil - Datamatrix
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: DS9808
- Product Name: Symbol DS9808 Handheld Barcode Scanner
- Product Line: Symbol
Physical Characteristics
- Height: 8"
- Width: 3.4"
- Depth: 5.4"
- Color: Twilight Black
- Weight (Approximate): 12 oz
Interfaces/Ports
- Host Interface: Powered USB
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
Full specifications (PDF)| Brand | Motorola |
| Model | DS9808 |
