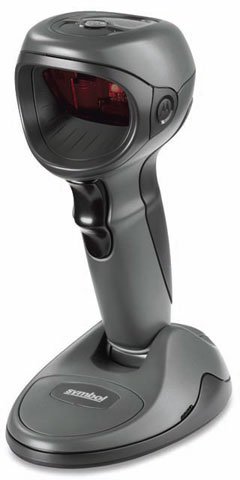

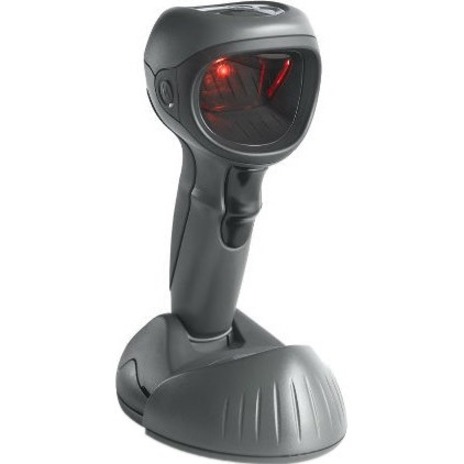

Motorola DS9808-SR00147CNWR Barcode Scanner

The Motorola DS9808-SR00147CNWR Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Motorola DS9808 - DS9808 Hybrid Presentation Imager (Standard Range With Mobile Phone Decode, Eas)

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Perfect for applications that require direct association with a workstation or a notebook
Incredible and responsive 2D scanning even on curved or translucent surfaces
LED aimer is a perfect choice for patient-facing applications

Need a different version? See all Motorola DS9808 Barcode Scanners

Discontinued Need Assistance?

Add to Quote

Motorola DS9808-SR00147CNWR Barcode Scanner

Overview

Full specifications (PDF)

Motorola DS9808 Barcode Scanner Model Overview

Designed to deliver a new level of versatility, functionality and performance, the Motorola DS9808 features a one-of-a-kind hybrid form factor that provides superior comfort and ease of use in both handheld and hands-free scanning modes. Inside, the DS9808 offers the latest scanning technology, delivering record swipe speeds for 1D and 2D barcodes, as well as the ability to capture images and signatures. Available in standard and long range models, the hands-free decode range on both can be adjusted to meet your needs, for example, to match EAS deactivation range or prevent inadvertent scanning of items nearby.

Motorola DS9808-SR00147CNWR Barcode Scanner Overview

Achieve a new level of productivity and throughput at the checkout stand with the Symbol DS9808. Designed to deliver a new level of versatility, functionality and performance, the DS9808 features a one-of-a-kind hybrid form factor that provides superior comfort and ease of use in both handheld and hands-free scanning modes.

Inside, it offers the latest scanning technology, delivering record swipe speeds for 1-D and 2-D barcodes, as well as the ability to capture images and signatures, and read barcodes on mobile phone displays. Available in standard and long range models, the hands-free decode range on both can be adjusted to meet your needs, for example, to match EAS deactivation range or prevent inadvertent scanning of items nearby.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1-D:

UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 Plus Supplementals)
ISBN (Bookland), ISSN, Coupon Code)
Code 39 (Standard, Full ASCII, Trioptic)
Code 128 (Standard, UCC/EAN-128, ISBT-128 Concatenated)
Code 93
Codabar/NW7
Code11 (Standard, Matrix 2 of 5)
MSI Plessey
I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
Base 32 (Italian Pharmacode)

PDF417(and Variants):

PDF417 (Standard, Macro)
MicroPDF417 (Standard, Macro)
Composite Codes (CC-A, CC-B, CC-C)

2-D:

TLC-39
Aztec (Standard, Inverse)
MaxiCode
DataMatrix/ECC 200 (Standard, Inverse)
QRCode (Standard, Inverse, Micro)

Postal:

U.S. Postnet
Planet
U.K. Post
Japan Post
Australian Post
Netherlands KIX Code
Royal Mail 4 State Customer
UPU FICS 4 State Postal
USPS 4CB
Canadian Post (Postbar)

Light Source:

LED

Image Sensor Type:

Imager

Physical Characteristics

Color:

Twilight Black

Height:

Width:

3.4"

Length:

5.4"

Weight (Approximate):

11.99 oz

Miscellaneous

Additional Information:

USB Cable separate

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Motorola DS9808-SR00147CNWR Barcode Scanner is also known as SYM-DS9808SR00147CMR
