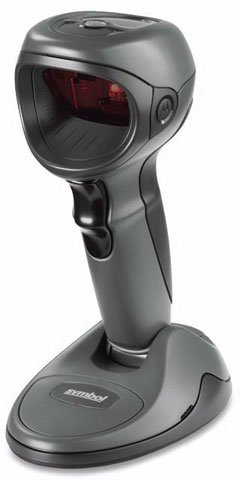

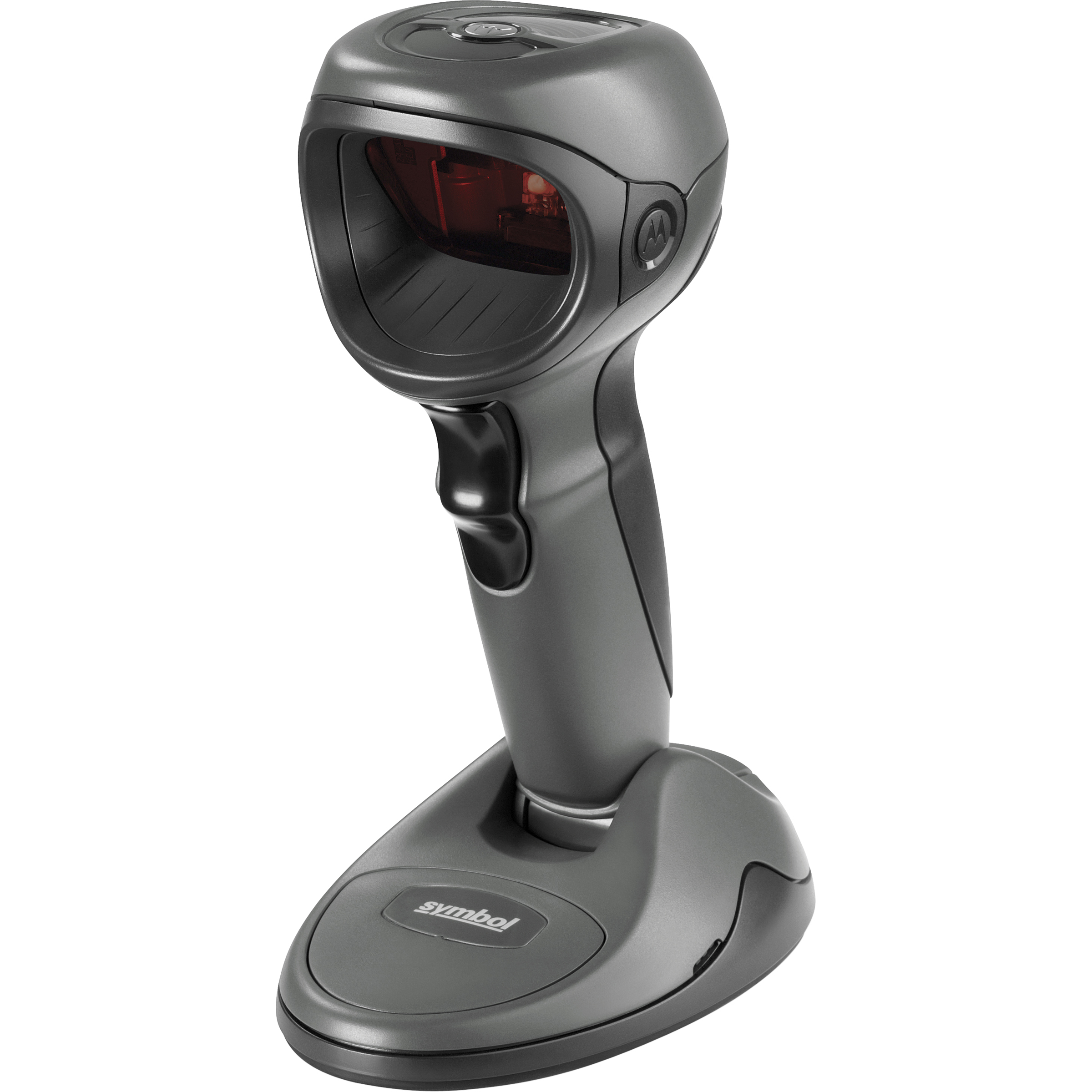

Motorola DS9808-LR7NNR01BR Barcode Scanner

The Motorola DS9808-LR7NNR01BR Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola DS9808 - Kit: Long Range, Twilight Black, RS232 Cable (Cba-R01-S07par), European Power Adapter, 100 - 240v P/S (50-14000-256r)
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More

Need a different version? See all Motorola DS9808 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Motorola DS9808-LR7NNR01BR Barcode Scanner
Motorola DS9808-LR7NNR01BR Barcode Scanner Motorola DS9808-LR7NNR01BR Barcode Scanner Motorola DS9808-LR7NNR01BR Barcode Scanner Motorola DS9808-LR7NNR01BR Barcode Scanner
Motorola DS9808-LR7NNR01BR Barcode Scanner
Motorola DS9808-LR7NNR01BR Barcode Scanner
Motorola DS9808-LR7NNR01BR Barcode Scanner

Full specifications (PDF)
Motorola DS9808 Barcode Scanner Model Overview
Designed to deliver a new level of versatility, functionality and performance, the Motorola DS9808 features a one-of-a-kind hybrid form factor that provides superior comfort and ease of use in both handheld and hands-free scanning modes. Inside, the DS9808 offers the latest scanning technology, delivering record swipe speeds for 1D and 2D barcodes, as well as the ability to capture images and signatures. Available in standard and long range models, the hands-free decode range on both can be adjusted to meet your needs, for example, to match EAS deactivation range or prevent inadvertent scanning of items nearby.
Motorola DS9808-LR7NNR01BR Barcode Scanner Overview

Achieve a new level of productivity and throughput at the checkout stand with the Symbol DS9808 Bar Code Reader. The groundbreaking Symbol DS9808 Bar Code Reader is designed inside and outside to bring a new level of versatility, functionality and performance to the checkout stand.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1-D / LINEAR CODES:

  • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals)
  • ISBN (Bookland)
  • ISSN
  • Coupon Code
  • Code 39 (Standard, Full ASCII, Trioptic)
  • Code 128 (Standard, UCC/EAN-128, ISBT-128 Concatenated)
  • Code 93
  • Codabar/NW7
  • Code 11 (Standard, Matrix 2 of 5)
  • MSI Plessey
  • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
  • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
  • Base 32 (Italian Pharmacode)

PDF417 (and variants):

  • PDF417 (Standard, Macro)
  • MicroPDF417 (Standard, Macro)
  • Composite Codes (CC-A, CC-B, CC-C)

2-D:

  • TLC-39
  • Aztec (Standard, Inverse)
  • MaxiCode, DataMatrix/ECC 200 (Standard, Inverse)
  • QR Code (Standard, Inverse, Micro)

Postal:

  • U.S. Postnet and Planet
  • U.K. Post
  • Japan Post
  • Australian Post
  • Netherlands KIX Code
  • Royal Mail 4 State Customer
  • UPU FICS 4 State Postal
  • USPS 4CB
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
7.80 mil
Depth of Field:
  • 0" - 5"@5mil - Code 39
  • 0" - 13.5"@10mil - UPC/EAN
  • 0" - 18"@13mil - UPC/EAN
  • 0" - 5"@6.6mil - PDF417
  • 0" - 6"@10mil - Datamatrix
Scan Pattern:
Omni-directional
Scanning Distance:
18"
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Form Factor:
Handheld
Color:
Twilight Black
Height:
8"
Width:
3.4"
Depth:
5.4"
Weight (Approximate):
12 oz
Item Numbers
UNSPSC: 43211701
