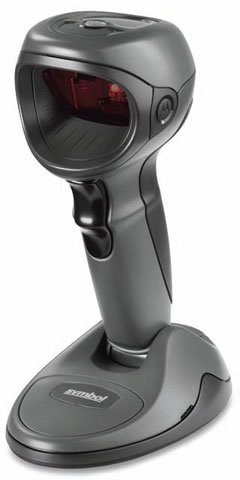

Motorola DS9808-DL00007NNWR Barcode Scanner

Zebra DS9908-DL00004ZZNA Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra DS9908-DL00004ZZNA Barcode Scanner.
Motorola DS9808 - Standard range, Imager only, Driver's license Parsing
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Laser scan engine guarantees rapid error free data entry
Read More
Discontinued See Replacement
Add to Quote
Motorola DS9808 Barcode Scanner Model Overview
Designed to deliver a new level of versatility, functionality and performance, the Motorola DS9808 features a one-of-a-kind hybrid form factor that provides superior comfort and ease of use in both handheld and hands-free scanning modes. Inside, the DS9808 offers the latest scanning technology, delivering record swipe speeds for 1D and 2D barcodes, as well as the ability to capture images and signatures. Available in standard and long range models, the hands-free decode range on both can be adjusted to meet your needs, for example, to match EAS deactivation range or prevent inadvertent scanning of items nearby.
Motorola DS9808-DL00007NNWR Barcode Scanner Overview

Achieve a new level of productivity and throughput at the checkout stand with the DS9808. Designed to deliver a new level of versatility, functionality and performance, the DS9808 features a one-of-a-kind hybrid form factor that provides superior comfort and ease of use in both handheld and hands-free scanning modes. Inside, it offers the latest scanning technology, delivering record swipe speeds for 1D and 2D bar codes, as well as the ability to capture images and signatures. Available in standard and long range models, the hands-free decode range on both can be adjusted to meet your needs, for example, to match EAS deactivation range or prevent inadvertent scanning of items nearby.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1-D:

  • UPC/EAN
  • ISBN
  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code11
  • MSI Plessey
  • I 2 of 5
  • GS1 DataBar
  • Base 32

PDF417(and variants):

  • PDF417
  • MicroPDF417
  • Composite Codes

2-D:

  • TLC-39
  • Aztec
  • MaxiCode
  • DataMatrix/ECC 200
  • QRCode

Postal:

  • U.S. Postnet
  • Planet
  • U.K. Post
  • Japan Post
  • Australian Post
  • Netherlands KIX Code
  • Royal Mail 4 State Customer
  • UPU FICS 4 State Postal
  • USPS 4CB
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
7.80 mil
Depth of Field:
  • 0" - 4.5"@5mil - Code 39
  • 0" - 8.5"@10mil - UPC/EAN
  • 0" - 10.5"@13mil - UPC/EAN
  • 0" - 5"@6.6mil - PDF417
  • 0" - 6"@10mil - Data Matrix
Scan Pattern:
Omni-directional
Scanning Distance:
10.50"
Physical Characteristics
Color:
Twilight Black
Height:
8"
Width:
3.4"
Depth:
5.4"
Weight (Approximate):
12 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0777786324346, 0853585464497
UPC: 777786324346, 853585464497
EAN: 0777786324346, 0853585464497
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola DS9808-DL00007NNWR Barcode Scanner is also known as SYM-DS9808DL0007NNWR or DS9808DL00007NNWR.
