Barcodes,Inc.

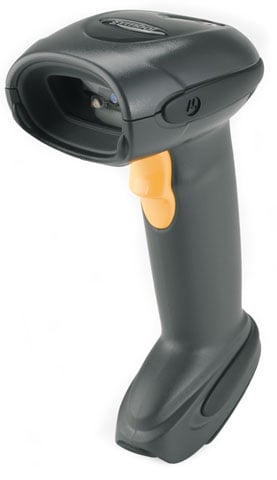

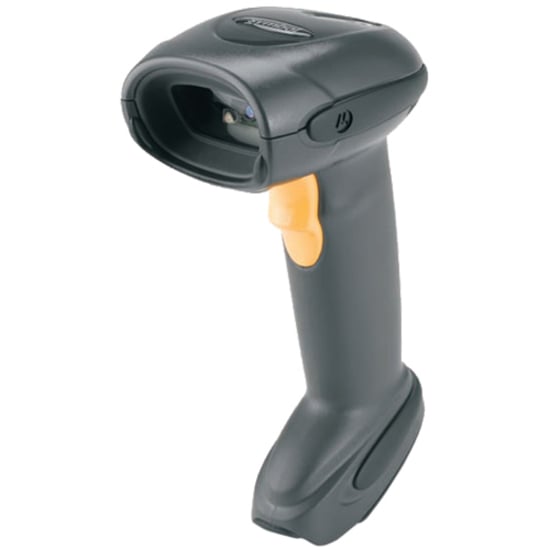

Motorola DS6878-TRBR0100AWR Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Motorola DS6878 - RS-232 Kit, 2D Imager, Cordless. Includes charging/communications base and RS-232 cable. No power supply or line cord. Color: Black
Eliminates the need to purchase multiple types of devices - captures 1D, 2D and PDF417 barcodes

The Motorola DS6878-SR cordless 2D imager offers the complete data capture functionality required to streamline and error-proof everyday processes. Comfortable and easy-to-use, this single device can capture all common barcodes (1D, 2D and PDF417) on labels as well as on mobile phone displays. The optional hands-free presentation cradle enables additional advanced capabilities: signature, document and photo capture, optical character recognition (OCR) to capture text in documents, and MICR to capture numeric information on the bottom of checks.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1-D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8-EAN-13/JAN-8/JAN13 plus Supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2of 5 / ITF, Discrete 2of 5 IATA, Chinese 2 of 5)
    • GS1 Databar (Omnidirectional,Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (And Variants):
    • PDF417
    • MicroPDF417
    • Composite Codes (CC-A, CC-B, CC-C)CC-B, CC-C)
    • Postal:
    • U.S. Postnet And Planet
    • U.K.
    • Japan
    • Australian
    • Netherlands KIX code
    • Royal Mail 4 State Customer
    • UPU ICS 4 State Postal
    • USPS 4CB
    • 2-D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse and Micro)
    • 1-D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8-EAN-13/JAN-8/JAN13 plus Supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2of 5 / ITF, Discrete 2of 5 IATA, Chinese 2 of 5)
    • GS1 Databar (Omnidirectional,Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (And Variants):
    • PDF417
    • MicroPDF417
    • Composite Codes (CC-A, CC-B, CC-C)CC-B, CC-C)
    • Postal:
    • U.S. Postnet And Planet
    • U.K.
    • Japan
    • Australian
    • Netherlands KIX code
    • Royal Mail 4 State Customer
    • UPU ICS 4 State Postal
    • USPS 4CB
    • 2-D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse and Micro)
  • Depth of Field:
    • 0.50" - 6.30"@5 mil - Code 39
    • 1.30" - 5.40"@6 mil - Code 128
    • 8"@10 mil - Code 128
    • 0.60" - 7.20"@7.80 mil - 60% UPC
    • 0.70" - 11"@13 mil - 100% UPC
    • 1.90" - 3.50"@5 mil - PDF
    • 1" - 5.90"@6.60 mil - PDF
    • 10 mil - PDF
    • 1.10" - 7.20"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Name: Symbol DS6878-SR Handheld Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 2.7"
  • Depth: 3.9"
  • Color: Black
  • Weight (Approximate): 8.40 oz

Network & Communication

  • Bluetooth: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model DS6878-SR
Connection RS-232 Serial
Connectivity Cordless
Scanner Capability 2D
Scanner Type Imager
Scan Pattern Area


Customer Review Summary

Recommended Accessories for Model: Motorola DS6878-SR Scanner
Motorola Cable (CBA-U01-S07ZAR)
USB Cable, 7 ft. (2m) Straight, Series A Connector.
In Stock: Ships Same Day


5.0

(1 reviews)

$25.40
+ Add to Quote
Motorola DS6878-HC Accessories (21-135001-01)
Bracket Assembly (Cradle Mounting) For The DS6878
In Stock: Ships Same Day
$27.20
+ Add to Quote
Motorola Cable (CBA-R37-C09ZAR)
- RS-232: DB-9 Female CON. 9 ft. (2.8m) Coiled, POWER PIN
In Stock: Ships Same Day
$65.30
+ Add to Quote
Symbol (BTRY-LS42RAA0E-01)
Spare battery for LS4278, DS6878 and LI4278
In Stock: Ships Same Day
$26.50
+ Add to Quote
Motorola (23844-00-00R)
US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R).
In Stock: Ships Same Day
$15.70
+ Add to Quote

The Motorola DS6878-TRBR0100AWR is also known as SYM-DS6878TRBR0100AW or DS6878TRBR0100AWR .
