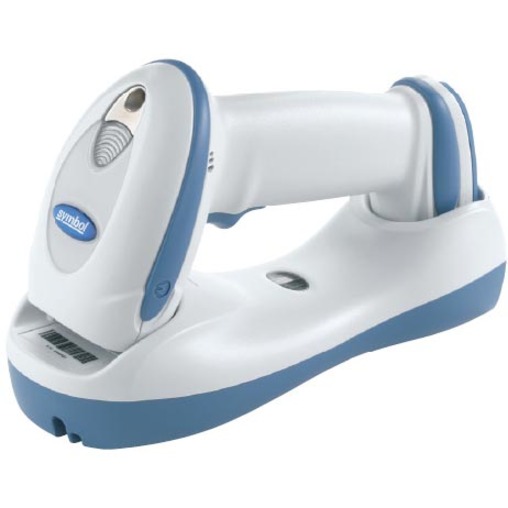

Motorola DS6878-PCBU0100AWR Barcode Scanner

Overview

Full specifications (PDF)

Motorola DS6878-HC Barcode Scanner Model Overview

Designed specifically to meet the unique requirements of healthcare, the Motorola DS6878-HC integrates seamlessly into healthcare facilities, including admissions, pharmacies, patient rooms and laboratories. With revolutionary scan technology, intuitive interface, and ergonomic and disinfectant-ready design, the DS6878-HC is easy to install virtually anywhere inside the hospital environment. The scanner's flexible base options enable easy mounting horizontally or vertically on walls, cabinets and on COWs and WOWs (cart on wheels/workstation on wheels). Cordless freedom via Bluetooth allows users to easily move to the barcode, eliminating the hazards associated with cables as well as the need to disturb or inconvenience patients, while offering the flexibility required for rapid data capture in emergency situations.

Motorola DS6878-PCBU0100AWR Barcode Scanner Overview

Prevent medical errors, improve patient safety and increase caregiver productivity. The DS6878-HC cordless imager from Motorola enables hospitals to automate data capture, improve data accuracy, increase productivity and streamline everyday processes in patient rooms, admitting, laboratories and the pharmacy. Its matchless feature set meets the unique requirements of healthcare facilities. An intuitive and ergonomic design combines with dependable and rapid capture of bar codes and other images, allowing caregivers to remain focused on the patient - not the technology. The DS6878-HC is compatible with popular Bedside Meds Administration software including Cerner, Epic, Siemens, Eclipsys and Meditech.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

1-D:

UPC/EAN (UPCA/UPCE/UPCE1/EAN-8-EAN-13/JAN-8/JAN13 Plus Supplementals)
ISBN (Bookland)
ISSN
Coupon Code
Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
Code 93
Codabar/NW7
Code 11 (Standard, Matrix 2 of 5)
MSI Plessey
I 2of 5 (Interleaved 2of 5 / ITF, Discrete 2of 5 IATA, Chinese 2 of 5)
GS1 Databar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
Base 32 (Italian Pharmacode)

PDF417 (and Variants):

PDF417
MicroPDF417
Composite Codes (CC-A, CC-B, CC-C)

Postal:

U.S. Postnet And Planet
U.K
Japan
Australian
Netherlands KIX Code
Royal Mail 4 State Customer
UPU ICS 4 State Postal
USPS 4CB

2-D:

TLC-39
Aztec (Standard, Inverse)
MaxiCode
DataMatrix/ECC 200 (Standard, Inverse)
QR Code (Standard, Inverse And Micro)

Light Source:

Laser

Image Sensor Type:

Imager

Depth of Field:

0.5" - 6.3"@5mil - Code 39
1.3" - 5.4"@6mil - Code 128
8"@10mil - Code 128
0.6" - 7.2"@7.8mil - 60% UPC
0.7" - 11"@13mil - 100% UPC
1.9" - 3.5"@5mil - PDF
1" - 5.9"@6.6mil - PDF
8"@10mil - PDF
1.1" - 7.2"@10mil - DataMatrix

Scan Pattern:

Omni-directional

Network & Communication

Bluetooth:

Yes

Interfaces/Ports

Host Interface:

USB

Physical Characteristics

Color:

White

Height:

7.3"

Width:

2.7"

Depth:

3.9"

Weight (Approximate):

8.40 oz

Miscellaneous

Additional Information:

USB Cable separate

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0799471566879, 5712505191255

UPC: 799471566879

EAN: 0799471566879, 5712505191255

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Motorola DS6878-PCBU0100AWR Barcode Scanner is also known as SYM-DS6878PCBU0100AW or DS6878PCBU0100AWR.

Motorola DS6878-PCBU0100AWR Barcode Scanner

Need a different version? See all Motorola DS6878-HC Barcode Scanners
