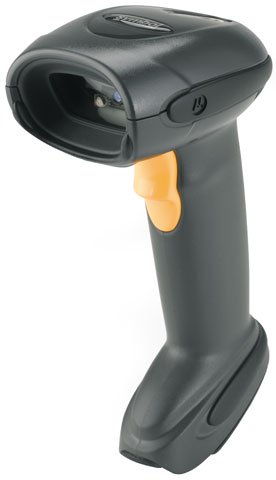

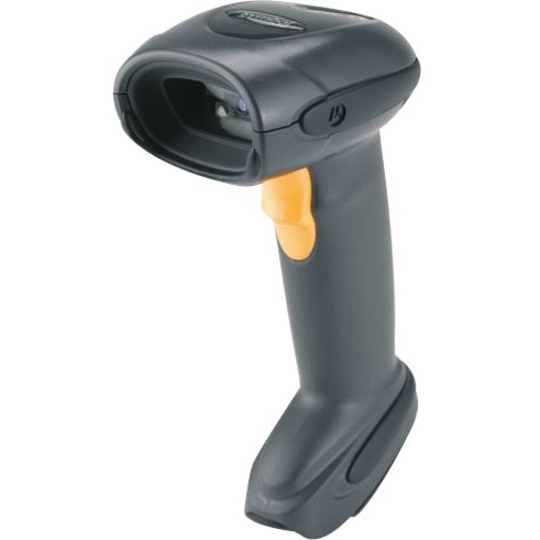

Motorola DS6878-DL – Barcode Scanner – Cordless – 2D

Part Number: DS6878-DL20001WR
Model: DS6878-DL

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Cordless
Form Factor
Handheld
Scanner Capability
2D
Scanner Type
Imager

Product Description:

  SCANNER ONLY. Cordless 2D Imager with Embedded Driver's License Parsing firmware. Requires Radio/Charging Cradle (CR0078-SC10007WR) and USB Cable (CBA-U01-S07ZAR). Power Supply Optional. Color: White.

Motorola DS6878-DL Barcode Scanner Model Overview

The Motorola DS6878-DL cordless 2D imager offers the complete data capture functionality required to streamline and error-proof everyday processes. Comfortable and easy-to-use, this single device can capture all common barcodes (1D, 2D and PDF417) on labels as well as on mobile phone displays. The on-board Driver's License parsing agent enables instant decoding of barcoded information on driver's licenses to support a wide variety of value-added applications. The optional hands-free presentation cradle enables additional advanced capabilities: signature, document and photo capture; optical character recognition (OCR) to capture text in documents; and MICR to capture numeric information on the bottom of checks.
Motorola DS6878-DL20001WR Barcode Scanner Overview

The DS6878-DL cordless 2D imager offers the complete data capture functionality required to streamline and error-proof everyday processes. Comfortable and easy-to-use, this single device can capture all common bar codes (1D, 2D and PDF417) on labels as well as on mobile phone displays. The on-board drivers license parsing agent enables instant decoding of bar coded information on driver's licenses to support a wide variety of value-added applications. The optional hands-free presentation cradle enables additional advanced capabilities: signature, document and photo capture; optical character recognition (OCR) to capture text in documents; and MICR to capture numeric information on the bottom of checks.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1-D:
  • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8-EAN-13/JAN-8/JAN13 plus supplementals
  • ISBN (Bookland)
  • ISSN
  • Coupon Code
  • Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
  • Code 93
  • Codabar/NW7
  • Code 11 (standard, Matrix 2 of 5)
  • MSI Plessey
  • I 2of 5 (Interleaved 2of 5 /ITF, Discrete 2of 5 IATA, Chinese 2 of 5)
  • GS1 Databar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
  • Base 32 (Italian Pharmacode)
PDF417 (and Variants):
  • PDF417
  • microPDF417
  • Composite Codes (CC-A, CC-B, CC-C)
Postal:
  • U.S. Postnet and Planet
  • U.K.
  • Japan
  • Australian
  • Netherlands KIX code
  • Royal Mail 4 State Customer
  • UPU ICS 4 State Postal
  • USPS 4CB
  • Canadian Post (Postbar)
2-D:
  • TLC-39
  • Aztec (Standard, Inverse)
  • MaxiCode
  • DataMatrix/ECC 200 (Standard, Inverse)
  • QR Code (Standard, Inverse and Micro)
Image Sensor Type:
Imager
Network & Communication
Bluetooth:
Yes
Physical Characteristics
Color:
Cash Register White
Height:
7.3"
Width:
2.7"
Length:
3.9"
Weight (Approximate):
8.40 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0853585471563
UPC: 853585471563
EAN: 0853585471563
UNSPSC: 43211701
