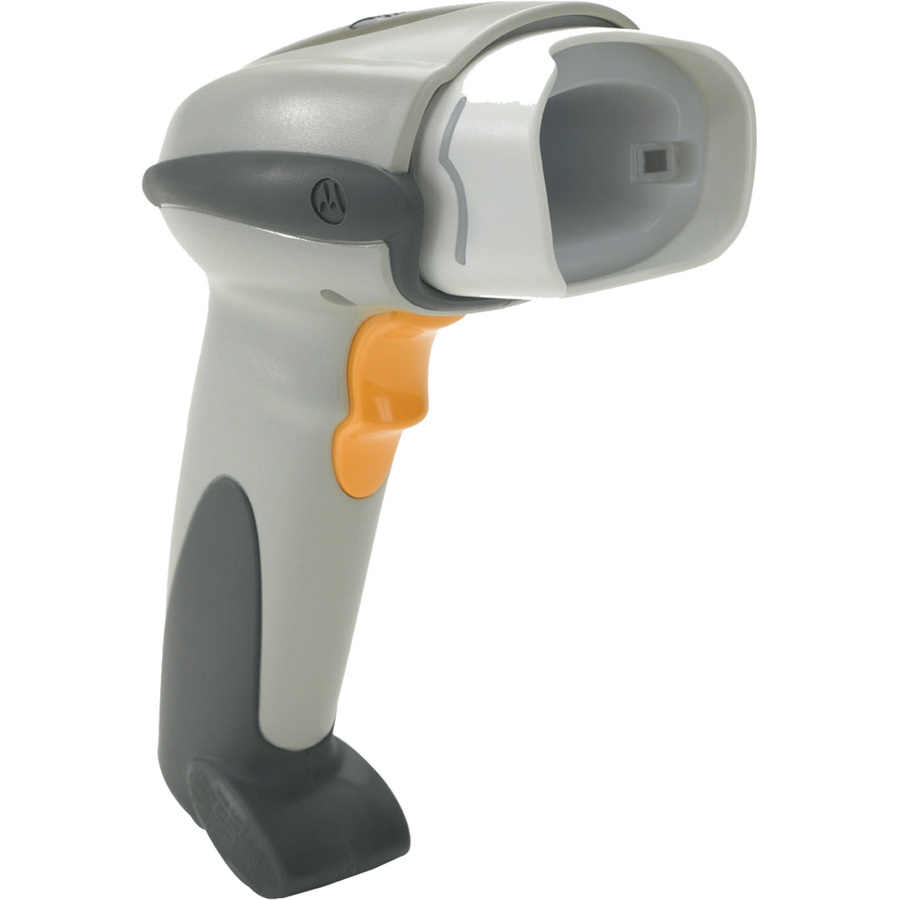

Motorola DS6707-DP20001ZZR Barcode Scanner

A newer version of this item is available.
It is replaced by the Zebra DS3608-DP20003VZWW Barcode Scanner.

Motorola DS6707-DP - SCANNER ONLY, 2D imager, DPM (Direct Part Marking) Reading Capability. For digital scanning/HD focus. Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR) or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWR-WUA5V4W0US). Color: White.

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Perfect for applications that require direct association with a workstation or a notebook
Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
Laser scan engine guarantees rapid error free data entry

Need a different version? See all Motorola DS6707-DP Barcode Scanners

Discontinued See Replacement

Add to Quote

Motorola DS6707-DP20001ZZR Barcode Scanner

Overview

Full specifications (PDF)

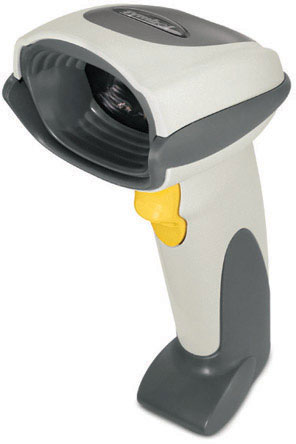

Motorola DS6707-DP Barcode Scanner Model Overview

The Motorola DS6707-DP is a premier general purpose scanner, offering the maximum in data capture flexibility. The DS6707-DP is able to capture images and read virtually all 1D and 2D bar codes and direct part marks (DPM) including the most challenging mark, dot peen. This highly versatile device is ideal in industries that depend on a wide variety of data types, such as healthcare, aerospace and automotive. With the DS6707-DP, workers can capture the right information at the right time, driving inefficiencies and errors out of business processes improving accuracy as well as employee productivity.

Motorola DS6707-DP20001ZZR Barcode Scanner Overview

The affordable Symbol DS6707-HD brings a new level of efficiency to electronic component manufacturing by enabling the automated capture of virtually every type of bar code utilized in electronics manufacturing. The DS6707-HD supports the complete set of high density marks common in electronics manufacturing environments, including laser etched, ink marked, chemical etched and inkjet bar codes.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1-D:

UPC/EAN and with supplementals
Code 39
Code 39 Full ASCII
Tri-optic Code 39
GS1DataBar (formerly RSS)
Code 128
Code 128 Full ASCII
GS1-128 (formerly UCC/EAN-128)
Code 93
Codabar (NW1)
Interleaved 2 of 5
Discrete 2 of 5
MSI
Codell
IATA
Bookland EAN
Code 32

PDF417 (and Variants):

PDF417
MicroPDF417 and composite codes

Postal:

U.S. Postnet and Planet
U.K.
Japan
Australian
Dutch
4 State Postal
Post US 4

2-D:

MaxiCode
DataMatrix (ECC 200)
QR Code
MicroQR
Aztec

Light Source:

Laser

Image Sensor Type:

Imager

Depth of Field:

0.84" - 2.42"@3mil - Code 39
0.42" - 3.13"@4mil - Code 39
0.29" - 3.38"@5mil - Code 39
4.38"@7.5mil - Code 39
0.59" - 4.96"@10mil - Code 39
0.42" - 8.21"@20mil - Code 39
0.21" - 5.13"@13mil - 100% UPC
0.63" - 3.10"@6.67mil - PDF417
0.46" - 3.54"@10mil - PDF417
1.33" - 4.46"@15mil - PDF417
1.04" - 2.13"@4mil - Data Matrix
0.79" - 2.50"@5mil - Data Matrix
0.50" - 3"@7.5mil - Data Matrix
0.54" - 3.50"@10mil - Data Matrix
1.13" - 2.17"@4mil - QR Code
0.88" - 2.54"@5mil - QR Code
0.67" - 3"@7.5mil - QR Code
0.46" - 3.42"@10mil - QR Code

Scan Pattern:

Omni-directional

Interfaces/Ports

Host Interface:

Serial
USB

Physical Characteristics

Color:

White

Height:

6.6"

Width:

2.8"

Depth:

4.7"

Weight (Approximate):

6.40 oz

Miscellaneous

Additional Information:

USB Cable separate

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 0800953576757

UPC: 800953576757

EAN: 0800953576757

UNSPSC: 43211701
