Motorola DS4800 – Barcode Scanner – 2D

Part Number: DS4801-DL0000WZZNA
Model: DS4800
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Handheld
Scanner Capability
2D
Scanner Type
CCD, Imager

Product Description:

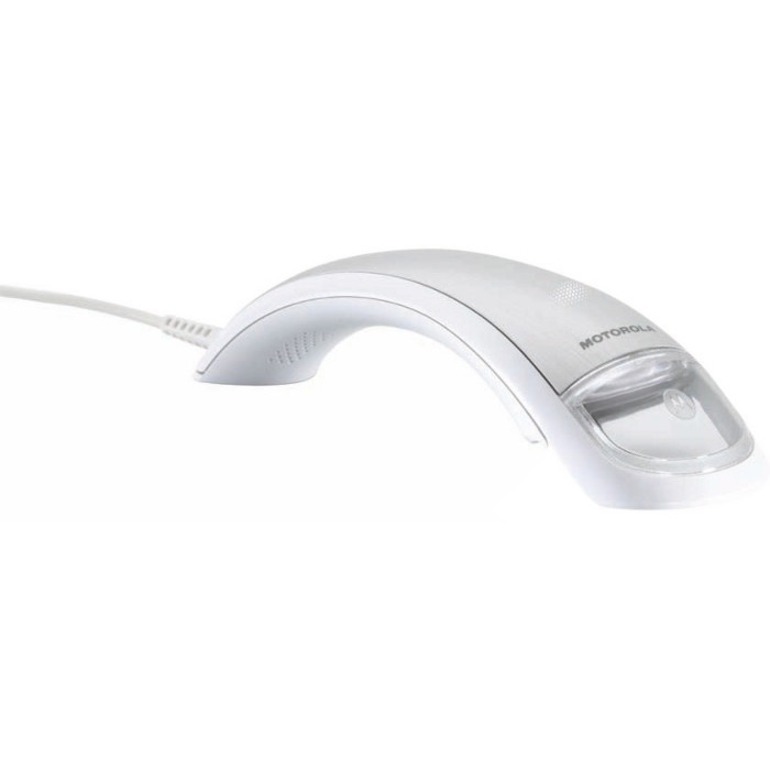

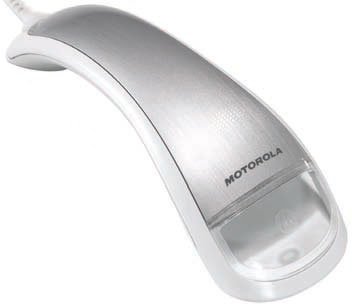

  2D Imager, Driver's License parsing. Includes USB cable. Color: White.
Explore all Motorola DS4800 Barcode Scanners
Add to Quote
Motorola DS4801-DL0000WZZNA Barcode Scanner
Motorola DS4801-DL0000WZZNA Barcode Scanner
Motorola DS4801-DL0000WZZNA Barcode Scanner
Motorola DS4801-DL0000WZZNA Barcode Scanner
Motorola DS4801-DL0000WZZNA Barcode Scanner
Motorola DS4801-DL0000WZZNA Barcode Scanner Motorola DS4801-DL0000WZZNA Barcode Scanner Motorola DS4801-DL0000WZZNA Barcode Scanner Motorola DS4801-DL0000WZZNA Barcode Scanner

Full specifications (PDF)

Motorola DS4800 Barcode Scanner Model Overview

The DS4800 Series offers the best of both worlds - scanning capability and chic consumer styling. The DS4800 Series will not only impress your shoppers, it will keep lines moving at the POS. It can capture any 1D and 2D bar code printed on a paper label or displayed on the screen of a shoppers mobile phone.
Motorola DS4801-DL0000WZZNA Barcode Scanner Overview

Your store represents your brand. You take pride in its design. The ambiance it creates is a big part of your customer's experience, and you've worked hard to make sure they feel it the moment they walk through your doors. With the DS4800 Series, you can extend that customer experience right to your POS. This innovative bar code scanner offers style without compromise, marrying impressive design and leading-edge technologies with the enterprise reliability and functionality that you expect from Motorola Solutions. The DS4800 series - elite performance, elegantly crafted.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • UPC/EAN
  • UPC/EAN with supplementals
  • Bookland EAN
  • ISSN
  • UCC Coupon Extended Code
  • Code 128
  • GS1- 128
  • ISBT 128
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 32
  • Code 93
  • Code 11
  • Matrix 2 of 5
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Codabar
  • MSI
  • Chinese 2 of 5
  • GS1 DataBar variants
  • Korean 3 of 5
  • ISBT Concatenated
2D:
  • PDF417
  • MicroPDF417
  • Composite Codes
  • TLC-39
  • Data Matrix
  • Maxicode
  • QR Code
  • MicroQR
  • Aztec
  • Han Xin
Postal:
  • Australian Post
  • US PLANET
  • Royal Mail 4 State Customer
  • US POSTNET
  • KIX Code (Dutch)
  • UK Postal
  • Japan Post
  • UPU 4 State Postal FICS (Post US4)
  • USPS 4 State Postal (Post US3)
Image Sensor Type:
Imager
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
Alpine White
Height:
1.9"
Width:
2.6"
Length:
7.5"
Weight (Approximate):
6 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
