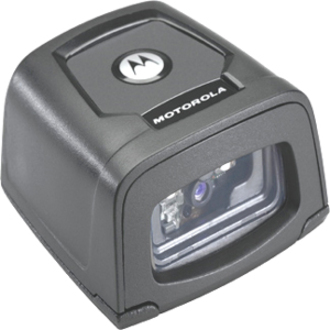

Motorola DS457 Series Fixed Barcode Scanner Model Overview
The Zebra DS457 Series is a next-generation fixed mount imager designed for hands-free convenience and extraordinary scanning speed across various barcodes. Ideal for retail, manufacturing, and transportation settings, this versatile scanner captures 1-D, 2-D, and direct part marks on any surface, including mobile phone displays. Its compact size allows for easy mounting in tight spaces, optimizing workspace efficiency. Equipped with advanced digital imaging technology, the DS457 ensures rapid and accurate data capture, boosting productivity with minimal training required for users.
Key Features
Extraordinary scanning speed: Effectively captures all types of barcodes without pauses.
Tiny footprint: Measures just 1.15 in. H x 2.3 in. L x 2.44 in. W, perfect for space-constrained areas.
Compatibility with mobile devices: Scans barcodes from mobile phones and computer displays.
Easily integrated: Functions as a standalone device or can be seamlessly built into various products.
Multiple models available: Tailored options for diverse scanning needs, including standard and high-density codes.
Specifications
Dimensions: 1.15 in. H x 2.3 in. L x 2.44 in. W (2.92 cm H x 5.84 cm L x 6.2 cm W)
Weight: 3.9 oz. / 111 g
Power: 5 VDC +/- 10% @ 450 mA
Operating Temperature: -4° to 122° F / -20° to 50° C
Scanning Capability: Captures 1-D/2-D barcodes and direct part marks
Drop Specification: Withstands multiple 30 in. / 176 cm drops to concrete
Sealing: IP54 rated
Illumination: Uses fastpulse illumination technology for quick scanning
Warranty: 3 years against defects in workmanship and materials
Somewhere, a flight is sold out at a busy airport, and to stay on schedule the passengers must board quickly. The checkout line is growing at a popular boutique and the customers are not happy. An engineer struggles to add direct part marking into his space-constrained product design. The Motorola DS457 Series can help, delivering fast, high-volume hands-free scanning of virtually any bar code - including 1D, 2D and direct part marks. No matter what type of bar code is presented, or whether it is printed on paper, etched into a product or displayed on a mobile phone screen, the DS457 Series provides fast, accurate scanning in a tiny footprint that fits in the most space-constrained areas.
Cables, Connectors, and Adapters, Zebra, Push Button Trigger Cable, In Order For This Cable To Work You Must Purchase A Cable That Has A Trigger Jack Attachment.
Cables, Connectors, and Adapters, Zebra, RS232 Cable Assembly, 9-Pin Female Straight Host Connector With Trigger Jack, 6' Straight Cable, To Be Used With General Purpose Fixed Mount Scanners
Power Device, Zebra, Level Vi AC/DC Power Supply Wall Adapter, With Captive DC Cable And US Adapter Clip AC Input, 100-240V, 0.2A DC Output, 5.2V, 1.1A, 5.7W
Power Systems & Supplies, Zebra, Level VI AC/DC Power Supply (Wall Adapter, with Captive DC Cable and Cn Adapter Clip). AC Input: 100-240V, 0.2A. DC Output: 5.2V, 1.1A, 5.7W
What processor does the Zebra TC501G have and how much faster is it than older models?
The TC501G is powered by a Qualcomm Dragonwing Q-6690 octa-core processor running up to 2.9 GHz, delivering processing speeds up to 300% faster than legacy devices. This exceptional processing power is specifically designed to enhance AI-driven applications and boost productivity across retail, field services, and other demanding sectors. We offer this device with configurations up to 12GB RAM and 256GB Flash to support high-demand applications.
Is the Zebra TC501G rugged enough for warehouse and outdoor environments?
Yes, the TC501G is engineered for demanding environments with an IP68 and IP65 rating for dust and water resistance, and it survives drops from 8 feet with a robust protective boot. The device operates reliably across a wide temperature range from -4°F to +122°F (-20°C to +50°C), making it suitable for both indoor warehouses and outdoor field operations. Available from us with these enterprise-grade durability features built in.
What connectivity options does the TC501G support?
The TC501G supports Wi-Fi 7, Bluetooth 6.0, and 5G LTE connectivity, ensuring reliable high-speed data transmission across various network environments. These advanced connectivity options enable real-time communication and data synchronization for logistics, warehouse management, and field service applications. Contact us today to discuss which connectivity configuration best fits your deployment needs.
How fast does the TC501G battery charge and what are the battery options?
The TC501G features fast charging technology that recharges the battery from 0 to 70% in just 45 minutes, with standard 5000 mAh and extended 7240 mAh battery options available. Both battery options are hot-swappable, allowing your team to maintain continuous operations without device downtime during extended shifts. Visit barcodesinc.com to configure the battery capacity that matches your operational requirements.
What data capture capabilities does the TC501G offer for inventory management?
The TC501G includes integrated RFID capability that can effortlessly capture over 200 RFID tags each second for streamlined inventory control, plus a 50MP rear-facing camera and optional ultra-wide 13MP camera for barcode and image-based data capture. The device also features an AC670 imager for traditional barcode scanning across multiple formats. These diverse data capture features ensure your team can efficiently manage inventory and asset tracking across warehouse and field operations.
What display features does the TC501G have for outdoor visibility?
The TC501G features a 6-inch FHD+ AMOLED display with 2160x1080 resolution and 1500 nits brightness, protected by Corilla Glass Victus, providing exceptional visibility even in bright outdoor conditions. The high-resolution AMOLED technology delivers vibrant colors and sharp text for enhanced user experience during extended use throughout the workday. Contact us today to arrange a demonstration of the TC501G's display capabilities for your specific operational environment.
The Motorola DS457-DP20009 Fixed Barcode Scanner is also known as
MOT-DS457DP20009
or DS457DP20009.
Full specifications (PDF)
