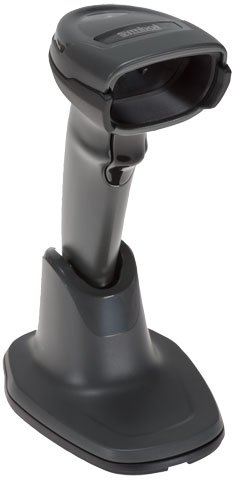

Motorola Symbol DS4308 Presentation – Barcode Scanner

Part Number: DS4308-SR7R0110PZN

Model: Symbol DS4308 Presentation

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Form Factor

Handheld

Scanner Type

CCD, Imager

Product Description:

RS-232/Presentation Stand kit. 2D Imager, Standard Range. Color: Black. Includes RS-232 interface cable, US power supply, and presentation stand.

Explore all Motorola Symbol DS4308 Presentation Barcode Scanners

Add to Quote

Motorola DS4308-SR7R0110PZN Barcode Scanner

Overview

Full specifications (PDF)

Motorola Symbol DS4308 Presentation Barcode Scanner Model Overview

The DS4308P is a feature-rich combination handheld and hands-free 2D imager that resets the bar for scanning performance, scanning range, versatility and ease-of-use. In presentation mode, its tiny footprint is ideal for space constrained areas. In handheld mode, the small and lightweight design provides the ergonomics workers need for all day scanning comfort. In either mode, workers can capture virtually any bar code faster than ever, whether it is displayed on a smartphone, tablet or computer or printed on a label - even if it is scratched, damaged or dirty. With its extraordinary scanning range, you get one powerful scanner that does the job of two, eliminating the need to purchase separate standard and extended range scanners. The result? A new class of scanner for a new world of bar codes.

Motorola DS4308-SR7R0110PZN Barcode Scanner Overview

ANY BARCODE . A NEW LEVEL OF PERFORMANCE . MORE VERSATILITY.

If you're looking for extraordinary flexibility and performance in your handheld scanner, the next-generation scanning technology in the DS4308 delivers. Its truly extraordinary range does the job of two scanners, allowing you to scan nearer and farther than any other scanner in this class. Your workers can scan virtually any bar code. The DS4308 does it all - 1D or 2D, electronic or printed on paper labels or plastic cards, even if the bar code is dirty, scratched or poorly printed. With PRZM Intelligent Imaging inside, your workers can capture bar codes as fast as they can pull the scan trigger. And that means no more Point-of-Sale exceptions that can turn into longer lines, longer wait times and lost sales. The DS4308 - a new class of scanner for a new world of bar codes.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1D:

UPC/EAN
UPC/EAN with supplementals
Bookland EAN
ISSN
UCC Coupon Extended Code
Code 128
GS1-128
ISBT 128
Code 39
Code 39 Full ASCII
Trioptic
Code 39
Code 32
Code 93
Code 11
Matrix 2 of 5
Interleaved 2 of 5
Discrete 2 of 5
Codabar
MSI
Chinese 2 of 5
GS1 DataBar variants
Korean 3 of 5
ISBT Concat

2D:

PDF417
MicroPDF417
Composite Codes
TLC-39
Data Matrix
Maxicode
QR Code
MicroQR
Aztec
Han Xin

Postal:

Australian Post
US PLANET
Royal Mail 4 State Customer
US POSTNET
KIX Code (Dutch)
UK Postal
Japan Post
UPU 4 State Postal FICS (Post US4)
USPS 4 State Postal (Post US3)
Canadian Post (Postbar)

Image Sensor Type:

Imager

Interfaces/Ports

Host Interface:

Serial

Physical Characteristics

Color:

Twilight Black

Height:

6.5"

Width:

2.6"

Length:

3.9"

Weight (Approximate):

5.71 oz

Miscellaneous

Additional Information:

USB Cable separate

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

5 Year

Item Numbers

UNSPSC: 43211701
