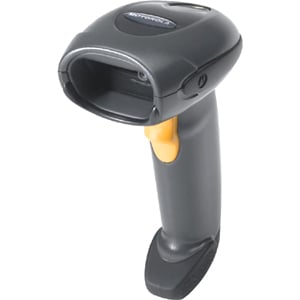

Motorola DS4208-SR00007WR Barcode Scanner
The Motorola DS4208 general purpose imager delivers the blazing speed typical of laser scanners on both 1D and 2D barcodes, accommodating 2D barcodes without sacrificing scanning quality or performance. Users never need to take time to align the barcode with the scanner or pause between scans. Since the DS4208 can scan barcodes printed on paper labels or on mobile phone displays, users can drive revenue by attracting the millions of customers who are using their cell phones to better manage their lives. Retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. Quick service restaurants can accept mobile coupons at the register. Hotels can allow guests to use electronic loyalty cards stored on their cell phones, eliminating the need to carry physical cards. And since theaters, theme parks and stadiums can scan mobile tickets as easily as a paper ticket, they can offer customers an added convenience: paperless ticketing.
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern: Omni-directional
- Light Source: LED
- Image Sensor: Imager
- Barcode Symbology Supported:
- 1D:
- UPC/EAN
- UPC/EAN with supplementals
- Bookland EAN
- ISSN
- UCC Coupon Extended Code
- Code 128
- GS1-128
- ISBT 128
- Code 39
- Code 39 Full ASCII
- Trioptic Code 39
- Code 32
- Code 93
- Code 11
- Matrix 2 of 5
- Interleaved 2 of 5
- Discrete 2 of 5
- Codabar
- MSI
- Chinese 2 of 5
- GS1 DataBar Variants
- Korean 3 of 5
- ISBT Concat
- 2D:
- PDF417
- MicroPDF417
- Composite Codes
- TL C-39
- Data Matrix
- Maxicode
- QR Code
- MicroQR
- Aztec
- Postal:
- Australian Post
- US PLANET
- Royal Mail 4 State Customer
- US POSTNET
- KIX Code (Dutch)
- UK Postal
- Japan Post
- UPU 4 State Postal FICS (Post US4)
- USPS 4 State Postal (Post US3)
- 1D:
- UPC/EAN
- UPC/EAN with supplementals
- Bookland EAN
- ISSN
- UCC Coupon Extended Code
- Code 128
- GS1-128
- ISBT 128
- Code 39
- Code 39 Full ASCII
- Trioptic Code 39
- Code 32
- Code 93
- Code 11
- Matrix 2 of 5
- Interleaved 2 of 5
- Discrete 2 of 5
- Codabar
- MSI
- Chinese 2 of 5
- GS1 DataBar Variants
- Korean 3 of 5
- ISBT Concat
- 2D:
- PDF417
- MicroPDF417
- Composite Codes
- TL C-39
- Data Matrix
- Maxicode
- QR Code
- MicroQR
- Aztec
- Postal:
- Australian Post
- US PLANET
- Royal Mail 4 State Customer
- US POSTNET
- KIX Code (Dutch)
- UK Postal
- Japan Post
- UPU 4 State Postal FICS (Post US4)
- USPS 4 State Postal (Post US3)
- Depth of Field:
- 0.20" - 6.80"@5 mil - Code 39
- 0 mil - 12.70"@10 mil - 80% UPCA
- 0.30" - 15.20"@13 mil - 100% UPCA
- 1.50" - 4.30"@5 mil - PDF 417
- 0.80" - 6"@6.60 mil - PDF 417
- 0.40" - 7.20"@10 mil - Data Matrix
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: DS4208
- Product Name: DS4208 Handheld Barcode Reader
Physical Characteristics
- Height: 6.7"
- Width: 2.7"
- Depth: 3.7"
- Color: Twilight Black
- Weight (Approximate): 6.10 oz
Interfaces/Ports
- Host Interface:
- USB
- Serial
- IBM 46XX
- Keyboard Wedge
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- IP43
- Electrical Safety:
- UL60950-1 2nd ed
- CSA C22.2 No. 60950-1 2nd ed
- EN60950-1/IEC60950-1 2nd ed
- LED Safety:
- IEC/EN60825-1:2001
- IEC/EN62471:2006
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- EN55022 Class B
- EN55024
Warranty
- Limited Warranty: 5 Year
Full specifications (PDF)| Brand | Motorola |
| Model | DS4208 |
| Connection | USB |
| Included Cables | Scanner Only - No Cable |
| Scan Pattern | Area |
| Form Factor | Handheld |
| Scanner Capability | 2D |
| Connectivity | Corded |
| Scanner Type | Imager |
| Color | Black |
| Ruggedness | General Purpose |
|
Motorola DS4208 Accessories (20-147076-07)
Twilight Black, Adjustable Gooseneck Stand For DS4208
:
|
$34.10 + Add to Quote |
|
Motorola Cable (CBA-R37-C09ZAR)
- RS-232: DB-9 Female CON. 9 ft. (2.8m) Coiled, POWER PIN
:
|
$73.80 + Add to Quote |
|
Zebra (PWR-WUA5V4W0US)
Power supply, AC INPUT: 100-240V, 0.2A DC OUTPUT: 5.2V, 1.1A for the Motorola LI4278 barcode scanner. Includes line cord.
:
|
$31.10 + Add to Quote |
|
Motorola Cable (CBA-U32-C09ZAR)
Shld Cable: USB, (Series A), 9 ft., Cl
:
|
$31.10 + Add to Quote |
|
Symbol Cable (CBA-R02-C09PAR)
Assembly (9 feet, Coiled, RS-232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R).
:
|
$32.00 + Add to Quote |
|
Motorola Service Contract - 1 year (Z1BE-DS4208-1000)
1 Year Zebra OneCare Service Center Essential. Does not include Comprehensive coverage.
|
$27.70 + Add to Quote |
|
|
Motorola Service Contract - 5 year (SSS-DS4208-50)
Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
|
$46.30 + Add to Quote |
The Motorola DS4208-SR00007WR is also known as SYM-DS4208SR00007WR or DS4208SR00007WR .
