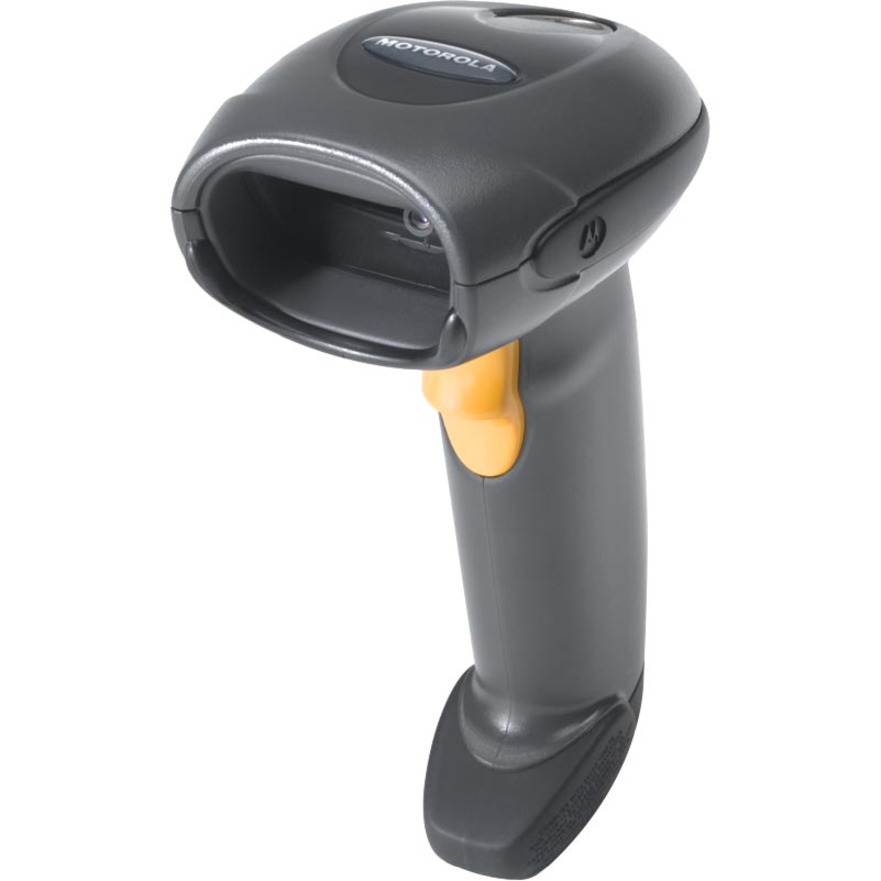

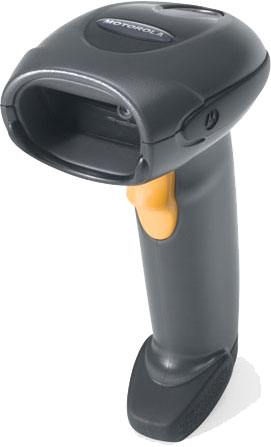

Motorola DS4208 – Barcode Scanner – Corded – 1D

Part Number: DS4208-SBZU0100ZWR
Model: DS4208
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D

Product Description:

  USB Kit, 2D Imager. Includes USB cable. Color: Black
Explore all BCI-Hidden Work In Process Bundle Barcode Scanners
Add to Quote
Motorola DS4208-SBZU0100ZWR Barcode Scanner
Motorola DS4208-SBZU0100ZWR Barcode Scanner
Motorola DS4208-SBZU0100ZWR Barcode Scanner
Motorola DS4208-SBZU0100ZWR Barcode Scanner
Motorola DS4208-SBZU0100ZWR Barcode Scanner Motorola DS4208-SBZU0100ZWR Barcode Scanner Motorola DS4208-SBZU0100ZWR Barcode Scanner

Full specifications (PDF)

BCI-Hidden Work In Process Bundle Barcode Scanner Model Overview

Everything you need for your work in process solution.
Motorola DS4208-SBZU0100ZWR Barcode Scanner Overview

The DS4208 delivers the blazing speed typical of laser scanners on both 1D and 2D bar codes, allowing you to accommodate 2D bar codes without sacrificing scanning quality or performance. Users never need to take time to align the bar code with the scanner or pause between scans. And since you can capture bar codes printed on paper labels or displayed on the screen of a mobile phone, retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. You get industry-leading scanning speed on every bar code; true point-and-shoot first time scanning simplicity on even damaged and poorly printed bar codes; and a durable design for all day everyday reliability all at an affordable price.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • UPC/EAN
  • UPC/EAN with supplementals
  • Bookland EAN
  • ISSN
  • UCC Coupon Extended Code
  • Code 128
  • GS1-128
  • ISBT 128
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 32
  • Code 93
  • Code 11
  • Matrix 2 of 5
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Codabar
  • MSI
  • Chinese 2 of 5
  • GS1 DataBar Variants
  • Korean 3 of 5
  • ISBT Concat

2D:

  • PDF417
  • MicroPDF417
  • Composite Codes
  • TL C-39
  • Data Matrix
  • Maxicode
  • QR Code
  • MicroQR
  • Aztec

Postal:

  • Australian Post
  • US PLANET
  • Royal Mail 4 State Customer
  • US POSTNET
  • KIX Code (Dutch)
  • UK Postal
  • Japan Post
  • UPU 4 State Postal FICS (Post US4)
  • USPS 4 State Postal (Post US3)
Light Source:
LED
Image Sensor Type:
Imager
Depth of Field:
  • 0.2" - 6.8"@5mil - Code 39
  • 0" - 12.7"@10mil - 80% UPCA
  • 0.3" - 15.2"@13mil - 100% UPCA
  • 1.5" - 4.3"@5mil - PDF 417
  • 0.8" - 6"@6.6mil - PDF 417
  • 0.4" - 7.2"@10mil - Data Matrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
Black
Height:
6.7"
Width:
2.7"
Depth:
3.7"
Weight (Approximate):
6.10 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:
  • IP43
Electrical Safety:
  • UL60950-1 2nd ed
  • CSA C22.2 No. 60950-1 2nd ed
  • EN60950-1/IEC60950-1 2nd ed
LED Safety:
  • IEC/EN60825-1:2001
  • IEC/EN62471:2006
EMI/RFI:
  • FCC Part 15 Class B
  • ICES-003 Class B
  • EN55022 Class B
  • EN55024
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0853585464848, 5711045326677
UPC: 853585464848
EAN: 0853585464848, 5711045326677
UNSPSC: 43211701
