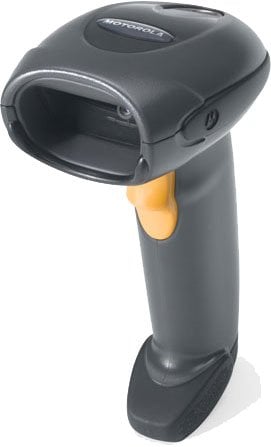

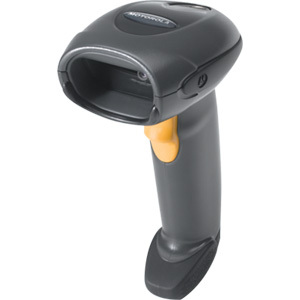

Motorola DS4208-HD00007WR Barcode Scanner

Motorola DS4208 - SCANNER ONLY. 2D Imager, High-Density. Cables and accessories must be purchased separately. Color: Black
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Perfect for applications that require direct association with a workstation or a notebook
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • LED aimer is a perfect choice for patient-facing applications
Read More

Full specifications (PDF)

Scans 1D, 2D and PDF417 barcodes on paper, mobile phones and computer displays
The Motorola DS4208 general purpose imager delivers the blazing speed typical of laser scanners on both 1D and 2D barcodes, accommodating 2D barcodes without sacrificing scanning quality or performance. Users never need to take time to align the barcode with the scanner or pause between scans. Since the DS4208 can scan barcodes printed on paper labels or on mobile phone displays, users can drive revenue by attracting the millions of customers who are using their cell phones to better manage their lives. Retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. Quick service restaurants can accept mobile coupons at the register. Hotels can allow guests to use electronic loyalty cards stored on their cell phones, eliminating the need to carry physical cards. And since theaters, theme parks and stadiums can scan mobile tickets as easily as a paper ticket, they can offer customers an added convenience: paperless ticketing.
Motorola DS4208-HD00007WR Overview

The DS4208 delivers the blazing speed typical of laser scanners on both 1D and 2D bar codes, allowing you to accommodate 2D bar codes without sacrificing scanning quality or performance. Users never need to take time to align the bar code with the scanner or pause between scans. And since you can capture bar codes printed on paper labels or displayed on the screen of a mobile phone, retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. You get industry-leading scanning speed on every bar code; true point-and-shoot first time scanning simplicity on even damaged and poorly printed bar codes; and a durable design for all day everyday reliability - all at an affordable price.

Loading...

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • UPC/EAN
  • UPC/EAN with Supplementals
  • Bookland EAN
  • ISSN
  • UCC Coupon Extended Code
  • Code 128
  • GS1-128
  • ISBT 128
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 32
  • Code 93
  • Code 11
  • Matrix 2 of 5
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Codabar
  • MSI
  • Chinese 2 of 5
  • GS1 DataBar Variants
  • Korean 3 of 5
  • ISBT Concat

2D:

  • PDF417
  • MicroPDF417
  • Composite Codes
  • TL C-39
  • Data Matrix
  • Maxicode
  • QR Code
  • MicroQR
  • Aztec

Postal:

  • Australian Post
  • US PLANET
  • Royal Mail 4 State Customer
  • US POSTNET
  • KIX Code (Dutch)
  • UK Postal
  • Japan Post
  • UPU 4 State Postal FICS (Post US4)
  • USPS 4 State Postal (Post US3)
Light Source:
LED
Image Sensor Type:
Imager
Depth of Field:
  • 0.2" - 3.7"@3mil - Code 39
  • 0.1" - 4.6"@4mil - Code 39
  • 0.1" - 5.1"@5mil - Code 39
  • 0.1" - 6.4"@7.5mil - Code 39
  • 0.2" - 7.7"@10mil - Code 39
  • 0.2" - 5.4"@7.8mil - 60% UPC
  • 0.3" - 6.5"@10.4mil - 80% UPC
  • 0.7" - 7.6"@13mil - 100% UPC
  • 0.3" - 4"@5mil - Code 128
  • 0.8" - 7.2"@10mil - I2of5
  • 0.7" - 2.7"@4mil - PDF 417
  • 0.3" - 3"@5mil - PDF 417
  • 0.4" - 3.6"@6.67mil - PDF 417
  • 0.8" - 4.7"@10mil - PDF 417
  • 0.4" - 2.8"@5mil - Data Matrix
  • 0.4" - 3.9"@7.5mil - Data Matrix
  • 0.1" - 4.6"@10mil - Data Matrix
  • 0.4" - 3.9"@10mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
  • Serial
  • USB
  • Keyboard Wedge
Physical Characteristics
Color:
Twilight Black
Height:
6.7"
Width:
2.7"
Depth:
3.7"
Weight (Approximate):
6.10 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:
  • UL60950-1 2nd ed
  • CSA C22.2 No. 60950-1 2nd ed
  • EN60950-1/IEC60950-1 2nd ed
  • IEC/EN60825-1:2001
  • IEC/EN62471:2006
  • FCC Part 15 Class B
  • ICES-003 Class B
  • EN55022 Class B
  • EN55024
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 5711045637797, 7426700930967
EAN: 5711045637797, 7426700930967
UNSPSC: 43211701

Loading...

The Motorola DS4208-HD00007WR is also known as MOT-DS4208HD00007WR or DS4208HD00007WR .
