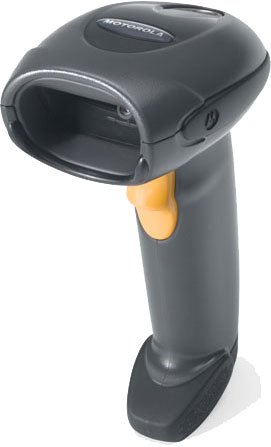

Motorola DS4208-HBZU000YWR Barcode Scanner

Overview

Full specifications (PDF)

Motorola DS4208 Barcode Scanner Model Overview

The Motorola DS4208 general purpose imager delivers the blazing speed typical of laser scanners on both 1D and 2D barcodes, accommodating 2D barcodes without sacrificing scanning quality or performance. Users never need to take time to align the barcode with the scanner or pause between scans. Since the DS4208 can scan barcodes printed on paper labels or on mobile phone displays, users can drive revenue by attracting the millions of customers who are using their cell phones to better manage their lives. Retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. Quick service restaurants can accept mobile coupons at the register. Hotels can allow guests to use electronic loyalty cards stored on their cell phones, eliminating the need to carry physical cards. And since theaters, theme parks and stadiums can scan mobile tickets as easily as a paper ticket, they can offer customers an added convenience: paperless ticketing.

Motorola DS4208-HBZU000YWR Barcode Scanner Overview

The DS4208 delivers the blazing speed typical of laser scanners on both 1D and 2D bar codes, allowing you to accommodate 2D bar codes without sacrificing scanning quality or performance. Users never need to take time to align the bar code with the scanner or pause between scans. And since you can capture bar codes printed on paper labels or displayed on the screen of a mobile phone, retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. You get industry-leading scanning speed on every bar code; true point-and-shoot first time scanning simplicity on even damaged and poorly printed bar codes; and a durable design for all day everyday reliability - all at an affordable price.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1D:

UPC/EAN
UPC/EAN with supplementals
Bookland EAN
ISSN
UCC Coupon Extended Code
Code 128
GS1-128
ISBT 128
Code 39
Code 39 Full ASCII
Trioptic Code 39
Code 32
Code 93
Code 11
Matrix 2 of 5
Interleaved 2 of 5
Discrete 2 of 5
Codabar
MSI
Chinese 2 of 5
GS1 DataBar Variants
Korean 3 of 5
ISBT Concat

2D:

PDF417
MicroPDF417
Composite Codes
TL C-39
Data Matrix
Maxicode
QR Code
MicroQR
Aztec

Postal:

Australian Post
US PLANET
Royal Mail 4 State Customer
US POSTNET
KIX Code (Dutch)
UK Postal
Japan Post
UPU 4 State Postal FICS (Post US4)
USPS 4 State Postal (Post US3)

Light Source:

LED

Image Sensor Type:

Imager

Maximum Scan Resolution:

5 mil

Depth of Field:

0.2" - 3.7"@3mil - Code 39
0.1" - 4.6"@4.0mil - Code 39
0.1" - 5.1"@5.0mil - Code 39
0.1" - 6.4"@7.5mil - Code 39
0.2" - 7.7"@10mil - Code 39
0.2" - 5.4"@7.8mil - 60% UPC
0.3" - 6.5"@10.4mil - 80% UPC
0.7" - 7.6"@13.0mil - 100% UPC
0.3" - 4.0"@5mil - Code 128
0.8" - 7.2"@10mil - I2of5
0.7" - 2.7"@4mil - PDF 417
0.3" - 3"@5mil - PDF 417
0.4" - 3.6"@6.67mil - PDF 417
0.8" - 4.7"@10mil - PDF 417
0.4" - 2.8"@5mil - Data Matrix
0.4" - 3.9"@7.5mil - Data Matrix
0.1" - 4.6"@10mil - Data Matrix
0.4" - 3.9"@10mil - QR Code

Scan Pattern:

Omni-directional

Interfaces/Ports

Host Interface:

Multi-interface

Physical Characteristics

Color:

Twilight Black

Height:

6.7"

Width:

2.7"

Depth:

3.7"

Weight (Approximate):

6.10 oz

Miscellaneous

Additional Information:

USB Cable separate

Item Numbers

GTIN: 0616174224250, 0682017465975, 3609740040474

UPC: 616174224250, 682017465975

EAN: 0616174224250, 0682017465975, 3609740040474

UNSPSC: 43211701
