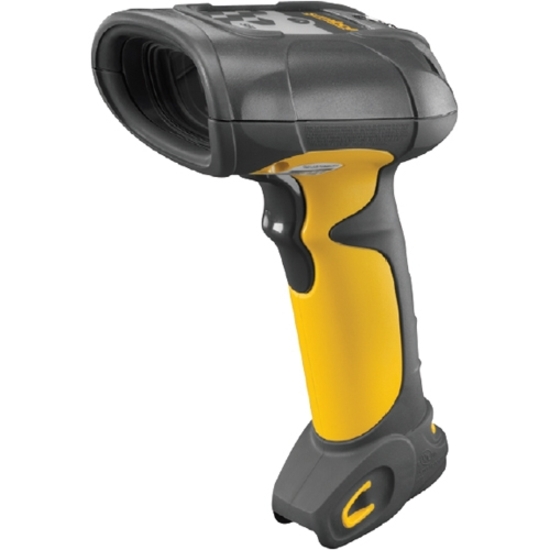

Motorola DS3578-SRBU0100IR Barcode Scanner

Motorola DS3578-SRFU0100IR Barcode Scanner A newer version of this item is available.
It is replaced by the Motorola DS3578-SRFU0100IR Barcode Scanner.

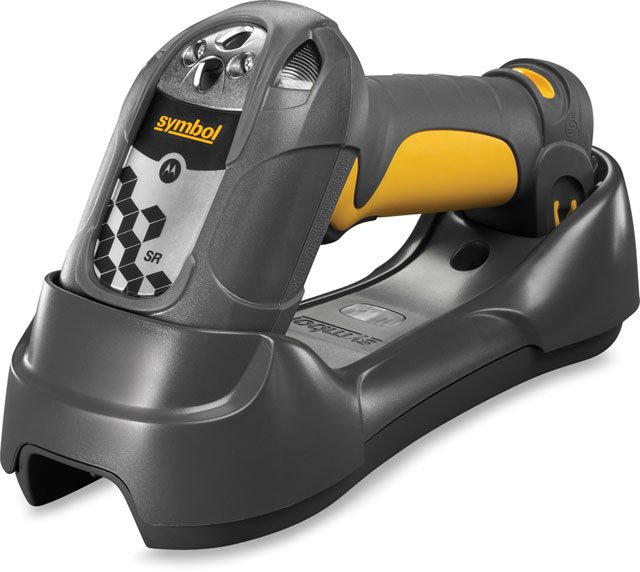

Motorola DS3578 - USB Kit, 2D Imager, Cordless. Includes Charging and Communication Cradle, USB cable, and Power supply.
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Laser scan engine guarantees rapid error free data entry
Read More

Need a different version? See all Motorola DS3578 Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Motorola DS3578-SRBU0100IR Barcode Scanner
Motorola DS3578-SRBU0100IR Barcode Scanner Motorola DS3578-SRBU0100IR Barcode Scanner Motorola DS3578-SRBU0100IR Barcode Scanner
Motorola DS3578-SRBU0100IR Barcode Scanner
Motorola DS3578-SRBU0100IR Barcode Scanner
Motorola DS3578-SRBU0100IR Barcode Scanner
Full specifications (PDF)
Motorola DS3578 Barcode Scanner Model Overview
The Motorola DS3578 Series of rugged, omni-directional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments, plus integrated Bluetooth provides cordless freedom, improving productivity. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of 1D and 2D barcodes, images and direct part marks (DPM), and supports Item Unique Identification (IUID). The DS3578 Series is available in a number of models to meet diverse data capture needs, including a standard version, a high-density version and a version supporting Direct Part Marks (DPM), IUID support and image capture/transfer.
Motorola DS3578-SRBU0100IR Barcode Scanner Overview

The Motorola DS3578 Series of rugged, cordless digital scanners bring comprehensive, high performance data capture to harsh industrial environments to improve business efficiency. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of one-dimensional (1D) and two-dimensional (2D) bar codes, and direct part marks (DPM) as well as Item Unique Identification (IUID) support.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D Codes:

  • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
  • ISBN (Bookland)
  • ISSN
  • Coupon Code
  • Code 39 (Standard, Full ASCII, Trioptic)
  • Code 128 (Standard, Full ASCII)
  • UCC/EAN-128
  • ISBT-128 Concatenated
  • Code 93
  • Codabar/NW7
  • Code 11 (Standard, Matrix 2 of 5)
  • MSI Plessey
  • I 2 of 5 (Interleaved 2 of 5 / ITF)
  • Discrete 2 of 5
  • IATA
  • Chinese 2 of 5
  • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
  • Base 32 (Italian Pharmacode)

PDF417 (and variants):

  • PDF417 (Standard, Macro)
  • MicroPDF417 (Standard, Macro)
  • Composite Codes (CC-A, CC-B, CC-C)

2D Codes:

  • TLC-39
  • Aztec (Standard, Inverse)
  • MaxiCode
  • DataMatrix/ECC 200 (Standard, Inverse)
  • QR Code (Standard, Inverse, Micro)

Postal codes:

  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japan Postal
  • Australian Postal
  • Dutch Postal
Light Source:
Laser
Image Sensor Type:
Imager
Depth of Field:
  • 2.60" - 4.50"@4mil - Code 39
  • 1.00" - 6.30"@5mil - Code 39
  • 0" - 10.10"@7.5mil - Code 39
  • 1" - 20.90"@20mil - Code 39
  • 0.90" - 15.10"@13mil - 100% UPC
  • 2.70" - 6.10"@6.67mil - PDF417
  • 0.40" - 9.30"@10mil - PDF417
  • 3.30" - 14.80"@15mil - PDF417
  • 2.10"@7.5mil - Data Matrix
  • 1.10" - 7.10"@10mil - Data Matrix
  • 1.50" - 6.10"@10mil - QR Code
Scan Pattern:
Omni-directional
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
13.79 oz
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
GTIN: 5052584329560
EAN: 5052584329560
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola DS3578-SRBU0100IR Barcode Scanner is also known as SYM-DS3578SRBU0100IR
