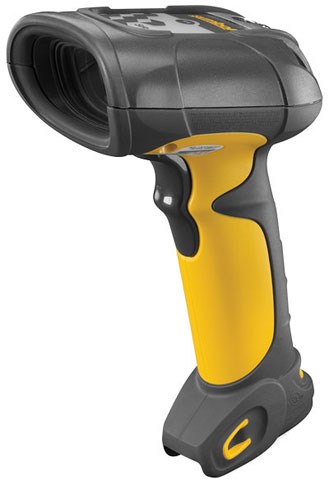

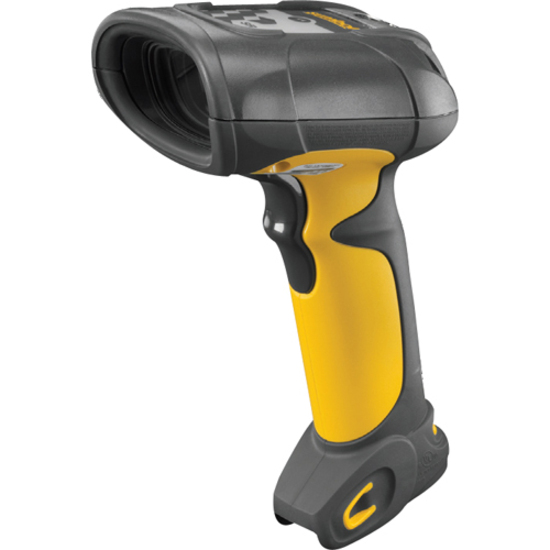

Motorola DS3578-SR20005WR Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Motorola DS3578 - SCANNER ONLY. 2D Imager, Standard Range, Cordless. Cradle, cables, and accessories must be purchased separately.
Ability to read both 1D and 2D barcodes

The Motorola DS3578 Series of rugged, omnidirectional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments, plus integrated Bluetooth provides cordless freedom, improving productivity. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of 1D and 2D barcodes, images and direct part marks (DPM), and supports Item Unique Identification (IUID). The DS3578 Series is available in a number of models to meet diverse data capture needs, including a standard version, a high-density version and a version supporting Direct Part Marks (DPM), IUID support and image capture/transfer.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII)
    • UCC/EAN-128
    • ISBT-128 Concatenated
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF)
    • Discrete 2 of 5
    • IATA
    • Chinese 2 of 5
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (and variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal codes:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII)
    • UCC/EAN-128
    • ISBT-128 Concatenated
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF)
    • Discrete 2 of 5
    • IATA
    • Chinese 2 of 5
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (and variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal codes:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
  • Depth of Field:
    • 2.60" - 4.50"@4 mil - Code 39
    • 1" - 6.30"@5 mil - Code 39
    • 0 mil - 10.10"@7.50 mil - Code 39
    • 1" - 20.90"@20 mil - Code 39
    • 0.90" - 15.10"@13 mil - 100% UPC
    • 2.70" - 6.10"@6.67 mil - PDF417
    • 0.40" - 9.30"@10 mil - PDF417
    • 3.30" - 14.80"@15 mil - PDF417
    • 2.10" - 5.50"@7.50 mil - Data Matrix
    • 1.10" - 7.10"@10 mil - Data Matrix
    • 1.50" - 6.10"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS3578
  • Product Name: DS3578-SR Handheld Barcode Reader

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Yellow
    • Twilight Black
  • Weight (Approximate): 13.79 oz

Network & Communication

  • Bluetooth: Yes

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model DS3578
Scanner Type Imager
Color Yellow/Black, Yellow
Connectivity Cordless
Form Factor Handheld
Scanner Capability 2D
Scan Pattern Area
Included Cables Scanner Only - No Cable
Communication Type Bluetooth
Ruggedness Rugged
