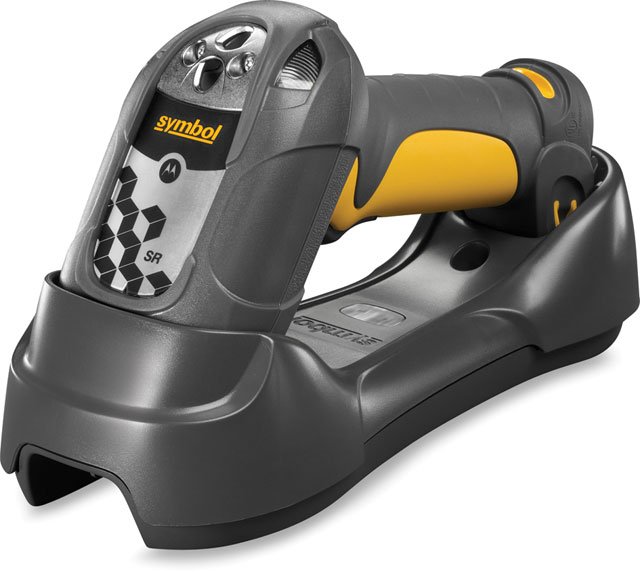

Motorola DS3578-HDFU0100IR Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Motorola DS3578-HD - USB Kit, 2D Imager, High Density, Cordless, FIPS Security Encryption. Includes Charging and Communication Cradle, USB cable, and Power supply. Does Not Include AC Line Cord (Part# 50-16000-182R).
Ability to read both 1D and 2D barcodes

The Motorola DS3578 Series of rugged, omnidirectional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments, plus integrated Bluetooth provides cordless freedom, improving productivity. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of 1D and 2D barcodes, images and direct part marks (DPM), and supports Item Unique Identification (IUID). The DS3578 Series is available in a number of models to meet diverse data capture needs, including a standard version, a high-density version and a version supporting Direct Part Marks (DPM), IUID support and image capture/transfer.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Image Sensor:
    • Imager
    • CMOS
  • Barcode Symbology Supported:
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus Supplementals, ISBN (Bookland), ISSN, Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (And Variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal Codes:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan
    • Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus Supplementals, ISBN (Bookland), ISSN, Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (And Variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal Codes:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan
    • Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
  • Depth of Field:
    • 1.10" - 1.60"@3 mil - Code 39
    • 3.50"@4 mil - Code 39
    • 4.20"@5 mil - Code 39
    • 5.40"@7.50 mil - Code 39
    • 1.10" - 9.20"@20 mil - Code 39
    • 0.80" - 6.20"@13 mil - 100% UPC
    • 3.70"@6.67 mil - PDF417
    • 4.50"@10 mil - PDF417
    • 3.20" - 5.60"@15 mil - PDF417
    • 1" - 2.10"@4 mil - Data Matrix
    • 0.40" - 2.70"@5 mil - Data Matrix
    • 3.50"@7.50 mil - Data Matrix
    • 4.40"@10 mil - Data Matrix
    • 1.10" - 1.40"@4 mil - QR Code
    • 0.50" - 2.20"@5 mil - QR Code
    • 3.30"@7.50 mil - QR Code
    • 4"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS3578-HD
  • Product Name: DS3578-HD Handheld Barcode Reader

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Twilight Black
    • Yellow
  • Weight (Approximate): 13.79 oz

Interfaces/Ports

  • Host Interface: USB

Network & Communication

  • Bluetooth: Yes

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model DS3578
Connectivity Cordless
Connection USB
Color Yellow/Black
Scanner Type Imager
Scan Pattern Area
Communication Type Bluetooth
Form Factor Handheld
Scanner Capability 2D
Included Cables USB
Ruggedness Rugged
