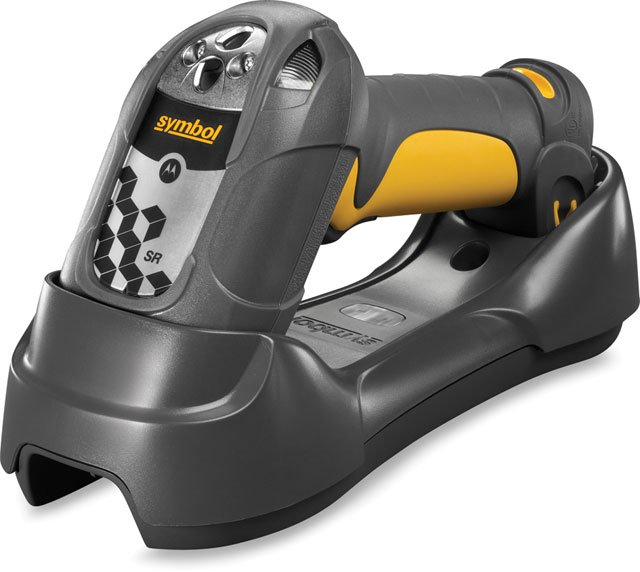

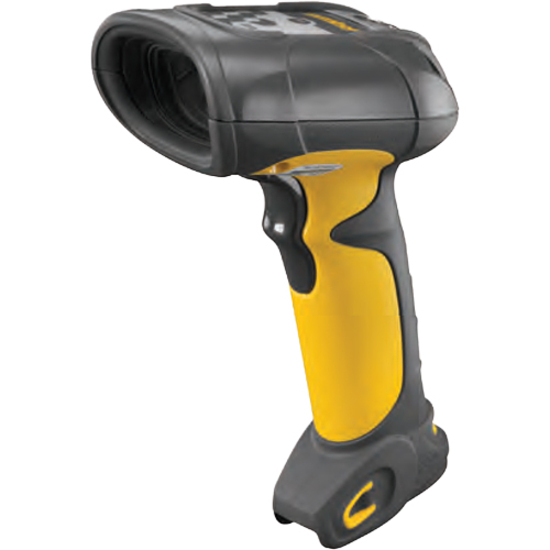

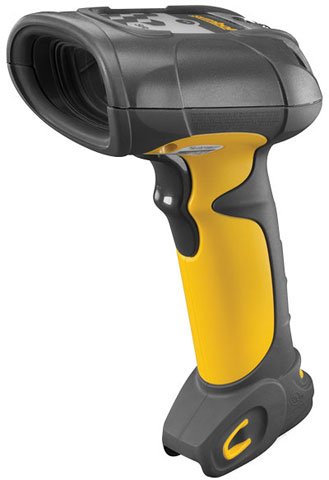

Motorola DS3578-HD2F005WR Barcode Scanners


5.0

(1 reviews)

Motorola DS3578-HD - SCANNER ONLY. 2D Imager, High Density, Cordless, FIPS Security Encryption. Cradle, cables, and accessories must be purchased separately.
Ability to read both 1D and 2D barcodes

The Motorola DS3578 Series of rugged, omnidirectional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments, plus integrated Bluetooth provides cordless freedom, improving productivity. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of 1D and 2D barcodes, images and direct part marks (DPM), and supports Item Unique Identification (IUID). The DS3578 Series is available in a number of models to meet diverse data capture needs, including a standard version, a high-density version and a version supporting Direct Part Marks (DPM), IUID support and image capture/transfer.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Image Sensor:
    • Imager
    • CMOS
  • Barcode Symbology Supported:
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus Supplementals, ISBN (Bookland), ISSN, Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (And Variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal Codes:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan
    • Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus Supplementals, ISBN (Bookland), ISSN, Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (And Variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal Codes:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan
    • Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
  • Depth of Field:
    • 1.10" - 1.60"@3 mil - Code 39
    • 3.50"@4 mil - Code 39
    • 4.20"@5 mil - Code 39
    • 5.40"@7.50 mil - Code 39
    • 1.10" - 9.20"@20 mil - Code 39
    • 0.80" - 6.20"@13 mil - 100% UPC
    • 3.70"@6.67 mil - PDF417
    • 4.50"@10 mil - PDF417
    • 3.20" - 5.60"@15 mil - PDF417
    • 1" - 2.10"@4 mil - Data Matrix
    • 0.40" - 2.70"@5 mil - Data Matrix
    • 3.50"@7.50 mil - Data Matrix
    • 4.40"@10 mil - Data Matrix
    • 1.10" - 1.40"@4 mil - QR Code
    • 0.50" - 2.20"@5 mil - QR Code
    • 3.30"@7.50 mil - QR Code
    • 4"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS3578
  • Product Name: DS3578-HD Handheld Barcode Reader

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Twilight Black
    • Yellow
  • Weight (Approximate): 13.79 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Network & Communication

  • Bluetooth: Yes

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Full specifications (PDF)

Full specifications (PDF)

Brand Motorola
Model DS3578
Connectivity Cordless
Connection USB
Color Yellow/Black
Communication Range less than 33 ft
Scanner Type Imager
Scan Pattern Area
Communication Type Bluetooth
Form Factor Handheld
Scanner Capability 2D
Included Cables Scanner Only - No Cable
Ruggedness Rugged


Customer Review Summary


5.0

(based on 1 reviews)

Ratings Distribution

  • 5 Stars



    (1)

  • 4 Stars



    (0)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 1 customers

Sort by

Displaying reviews 1-1

Back to top


5.0

Good Industrial Scanner

By SuperiorControls

from Plymouth, MI

6/8/2012

Verified Buyer

Pros

  • Capable of Difficult Mark
  • Construction of Scanner
  • Positive Feedback on Scan
  • Quality

Cons

Best Uses

Comments about Motorola DS3578-HD DS3578-HD2F005WR:

Use this scanner in an Automotive Assembly process. Had an application where we are required to read marks that are inkjet applied to a brake pad. The other scanners we were using were not capable of reading the mark, these preform surprisingly well at reading a difficult to read (at least with other scanners) mark. The feedback these scanners provide, including a green dot projected near read code and vibration, make them a favorite amongst operators

Displaying reviews 1-1

Back to top

Recommended Accessories for Model: Motorola DS3578 Scanner
Motorola Cable (CBA-U01-S07ZAR)
USB Cable, 7 ft. (2m) Straight, Series A Connector.
In Stock: Ships Same Day


5.0

(1 reviews)

$25.40
+ Add to Quote
Motorola (50-16000-182R)
AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
In Stock: Ships Same Day


5.0

(1 reviews)

$12.80
+ Add to Quote
Motorola (FLB3578-C0007WR)
Crd/Chg & Radio/Twlblk/FLB35xx
In Stock: Ships Same Day
$287.80
+ Add to Quote
Motorola (FLB3578-CF007WR)
Fork-Lift Cradle, Radio/Charging With Fips Bluetooth Cradle Only.
In Stock: Ships Same Day
$334.60
+ Add to Quote
Motorola Cable (CBA-R37-C09ZAR)
- RS-232: DB-9 Female CON. 9 ft. (2.8m) Coiled, POWER PIN
In Stock: Ships Same Day
$65.30
+ Add to Quote

The Motorola DS3578-HD2F005WR is also known as MOT-DS3578HD2F005WR or DS3578HD2F005WR .
